RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

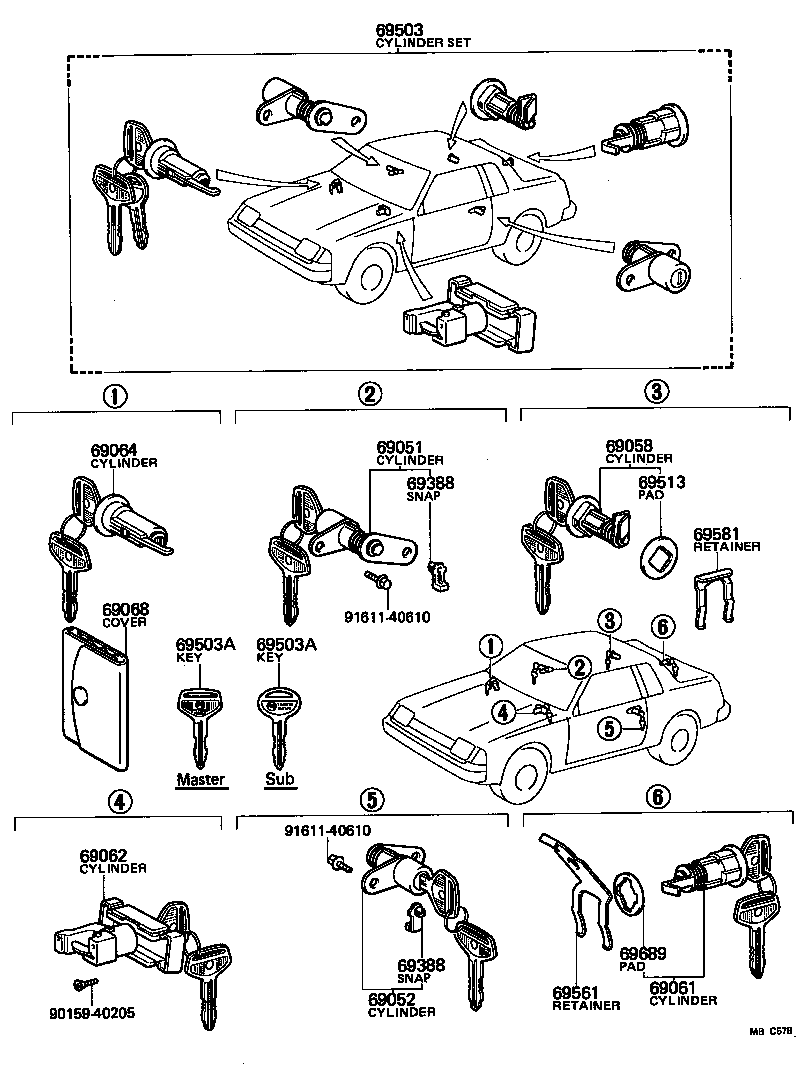

Click highlighted areas on diagram

diagram 69051 69052 69058 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69513 69561 69581 69689 9015940205 9161140610 9161140610
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-14090

MA61,RA61,63,TA60..EUR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-14090

MA61,RA61,63,TA60..EUR

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-19145

MA61,RA61,63,TA60..EUR

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-19405

MA61,RA61,63,TA60..LB..EUR

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-1404001

MA61,RA61,63,TA60..EUR

BLACK,BLACK,TRIM2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-14060

MA61,RA61,63,TA60..EUR

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AA63,MA61,RA6#,SA63,TA60

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

MA61,RA6#,TA60

RH

 1
69759-24090

MA61,RA6#,TA60

LH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

MA61,RA6#,TA60

RH

 1
69759-24090

MA61,RA6#,TA60

LH

 1
69503 - CYLINDER SET, LOCK
69005-1444001

MA61,RA61,63,TA60..LB..EUR

BLACK,BLACK,TRIM2#

 1
69503A - KEY, BLANK
90999-00074

MA61,RA61,63,TA60..EUR

MASTER KEY

 2
90999-00075

MA61,RA61,63,TA60..EUR

SUB KEY

 1
69503A - KEY, BLANK
90999-00074

MA61,RA61,63,TA60..EUR

MASTER KEY

 2
90999-00075

MA61,RA61,63,TA60..EUR

SUB KEY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

MA61,RA6#,TA60

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-14070

AA63,MA61,RA6#,SA63,TA60..LB

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

MA61,RA6#,TA60

 1
69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69685-12010

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90159-40205
91611-40610
