RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB..LHD

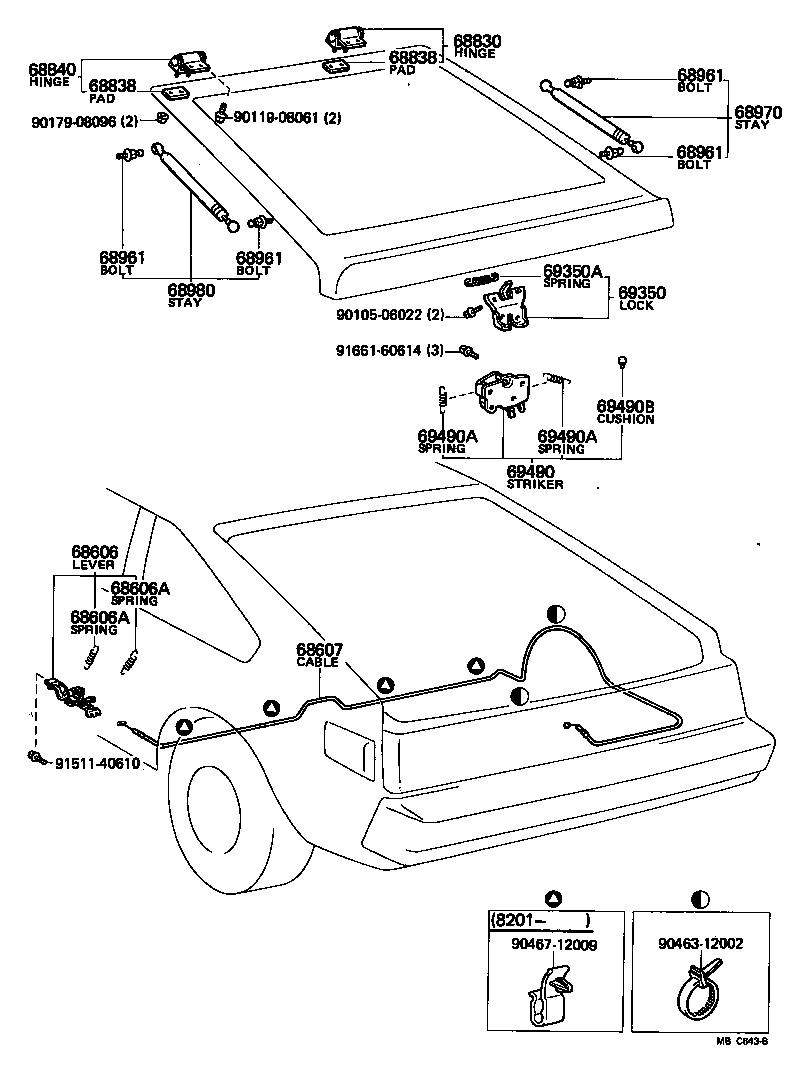

Click highlighted areas on diagram

diagram 68606 68606A 68606A 68607 68830 68838 68838 68840 68961 68961 68961 68961 68970 68980 69350 69350A 69490 69490A 69490A 69490B 9010506022 9011908061 9017908096 9046312002 9046712009 9151140610 9166160414
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-14030

MA61,RA6#,TA60..LB

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AA63,MA61,RA6#,SA63,TA60..LB

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AA63,MA61,RA6#,SA63,TA60..LB

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-14030

MA61,RA6#,TA60..LB

 1
68961 - BOLT, BACK DOOR STAY
68961-14020

AA63,MA61,RA6#,SA63,TA60..LB

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AA63,MA61,RA6#,SA63,TA60..LB

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AA63,MA61,RA6#,SA63,TA60..LB

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AA63,MA61,RA6#,SA63,TA60..LB

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19265

AA63,MA61,RA6#,SA63,TA60..LB

W/RR WIPER

 1
68950-19185

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
68980 - STAY ASSY, BACK DOOR
68950-19185

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
68950-19265

AA63,MA61,RA6#,SA63,TA60..LB

W/RR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-14070

AA63,RA6#,SA63,TA60..LB

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90506-08020

AA63,MA61,RA6#,SA63,TA60..LB

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-14060

AA63,RA6#,SA63,TA60..LB

 1
69490A - SPRING(FOR BACK DOOR LOCK STRIKER)
90501-07484

AA63,MA61,RA6#,SA63,TA60..LB

WD=0.7

 1
90501-16060

AA63,MA61,RA6#,SA63,TA60..LB

WD=1.6

 1
69490A - SPRING(FOR BACK DOOR LOCK STRIKER)
90501-07484

AA63,MA61,RA6#,SA63,TA60..LB

WD=0.7

 1
90501-16060

AA63,MA61,RA6#,SA63,TA60..LB

WD=1.6

 1
69490B - CUSHION(FOR BACK DOOR LOCK STRIKER)
90541-06010

AA63,MA61,RA6#,SA63,TA60..LB

 1
Common parts
90105-06022
90119-08061
90179-08096
90463-12002
90467-12009
91511-40610
91661-60414
