RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

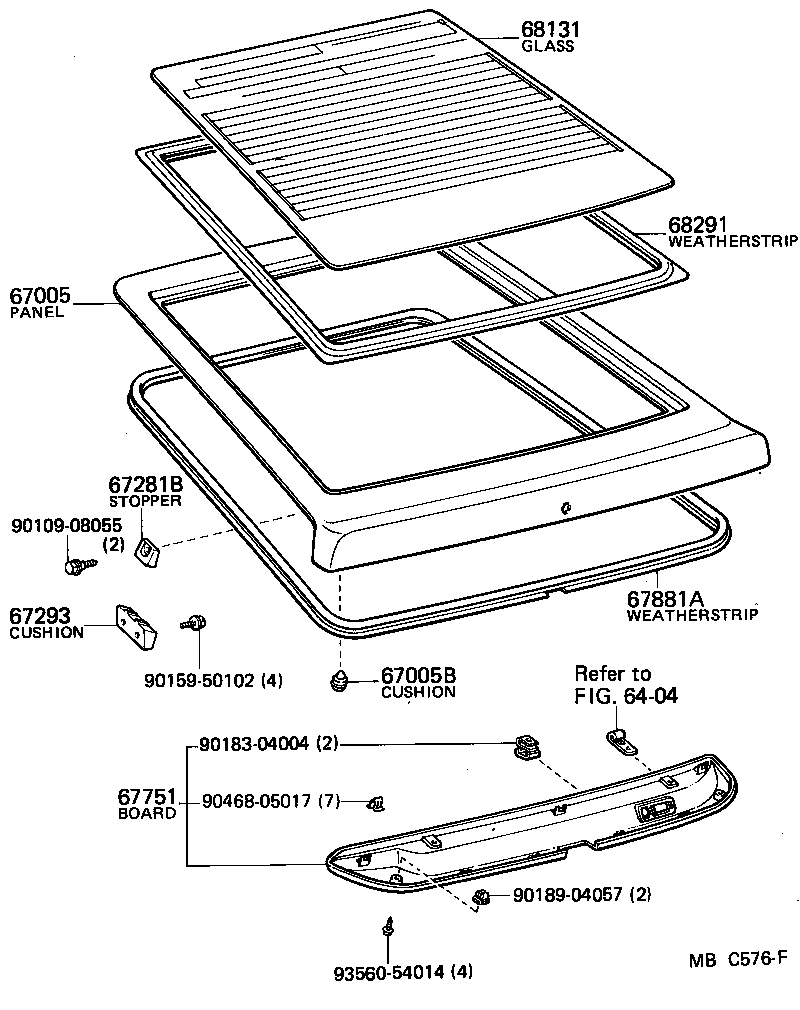

Click highlighted areas on diagram

diagram 6404 67005 67005B 67281B 67293 67751 67881A 68131 68291 9010908055 9015950102 9018304004 9018904057 9046805017 9356054014
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-14260

RA61..LB..EUG;RA61..ST..SDZ;MA61,RA60,63,TA60..LB

 1
67005-14280

AA63,MA61,RA6#,SA63,TA60..LB

W/RR WIPER

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09041

AA63,MA61,RA6#,SA63,TA60..LB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-14020

AA63,MA61,RA6#,SA63,TA60..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-14010

AA63,MA61,RA6#,SA63,TA60..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-1403006

AA63,RA6#,SA63,TA60..LB

DARK BROWN,BROWN,TRIM4#

 1
64781-1403001

AA63,MA61,RA6#,SA63,TA60..LB

BLACK,BLACK,TRIM2#

 1
64781-1403004

AA63,MA61,RA6#,SA63,TA60..LB

BLUE,BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
68131 - GLASS, BACK DOOR
68131-14010

AA63,RA61,TA60..LB..(GTS,ST)..EUG

T=4.0,*TT

 1
68131-14020

AA63,MA61,RA6#,SA63,TA60..LB

T=4.0,W/DEFOGGER,*TT

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-14010

AA63,MA61,RA6#,SA63,TA60..LB

 1
Common parts
90109-08055
90159-50102
90183-04004
90189-04057
90468-05017
93560-54014
Linked diagrams
6404
