RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

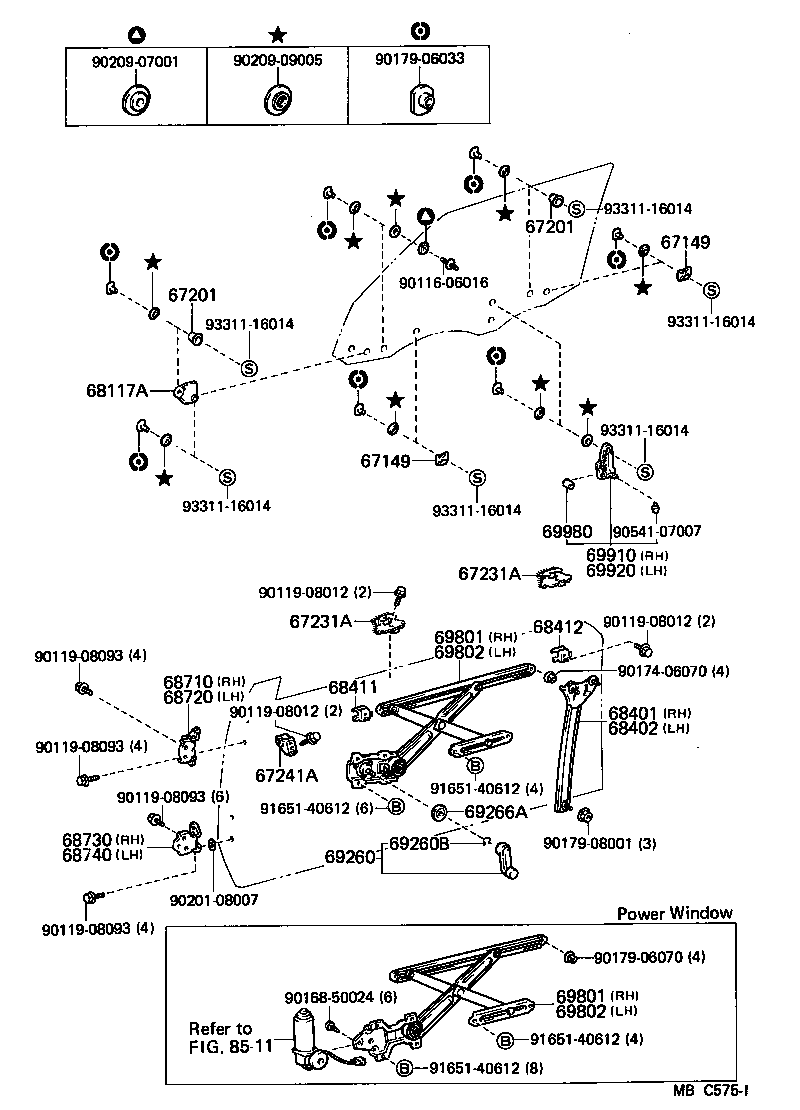

Click highlighted areas on diagram

diagram 67149 67149 67201 67201 67231A 67231A 67241A 68117A 68401 68402 68411 68412 68710 68720 68730 68740 69260 69260B 69266A 69801 69801 69802 69802 69910 69920 69980 8511 9011606016 9011908012 9011908012 9011908012 9011908093 9011908093 9011908093 9011908093 9016850024 9017406070 9017906033 9017906070 9017908001 9020108007 9020907001 9020909005 9054107007 9165140612 9165140612 9165140612 9165140612 9331116014 9331116014 9331116014 9331116014 9331116014 9331116014
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AA63,MA61,RA6#,SA63,TA60

 4
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AA63,MA61,RA6#,SA63,TA60

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AA63,MA61,RA6#,SA63,TA60

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AA63,MA61,RA6#,SA63,TA60

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AA63,MA61,RA6#,SA63,TA60

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AA63,MA61,RA6#,SA63,TA60

 4
67241A - STABILIZER, DOOR GLASS, INNER
67241-14010

AA63,MA61,RA6#,SA63,TA60

INNER

 2
68117A - PLATE, FRONT DOOR GLASS
68118-14010

AA63,MA61,RA6#,SA63,TA60

LH

 1
68117-14010

AA63,MA61,RA6#,SA63,TA60

RH

 1
68401 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH
67401-14100

AA63,MA61,RA6#,SA63,TA60

 1
68402 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH
67402-14100

AA63,MA61,RA6#,SA63,TA60

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67211-14020

AA63,MA61,RA6#,SA63,TA60

 2
68412 - STOPPER, DOOR WINDOW GLASS, UPPER REAR
67211-14020

AA63,MA61,RA6#,SA63,TA60

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14040

AA63,MA61,RA6#,SA63,TA60

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14040

AA63,MA61,RA6#,SA63,TA60

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14040

AA63,MA61,RA6#,SA63,TA60

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14040

AA63,MA61,RA6#,SA63,TA60

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1403006

AA63,RA61,63,TA60..EUG

DARK BROWN,BROWN,TRIM4#

 2
69260-1403001

AA63,RA61,63,TA60..EUG

BLACK,BLACK,TRIM2#

 2
69260-1403004

AA63,RA61,63,TA60..EUG

BLUE,BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AA63,RA6#,SA63,TA60

 1
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-22010

AA63,RA6#,SA63,TA60

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14150

AA63,RA6#,SA63,TA60

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14150

AA63,RA6#,SA63,TA60

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14140

AA63,RA6#,SA63,TA60

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14140

AA63,RA6#,SA63,TA60

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69901-14040

AA63,MA61,RA6#,SA63,TA60

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69902-14030

AA63,MA61,RA6#,SA63,TA60

 1
69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE
69981-14020

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
90116-06016
90119-08012
90119-08093
90168-50024
90174-06070
90179-06033
90179-06070
90179-08001
90201-08007
90209-07001
90209-09005
90541-07007
91651-40612
93311-16014
Linked diagrams
8511
