RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

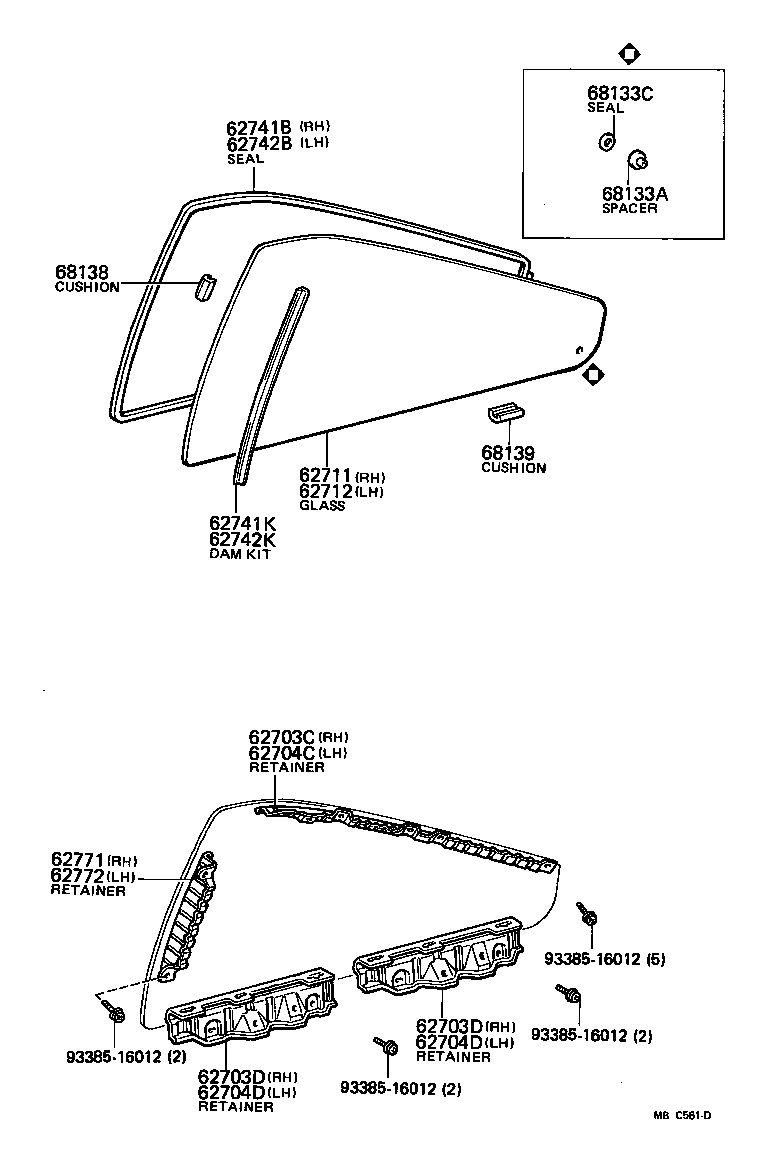

Click highlighted areas on diagram

diagram 62703C 62703D 62703D 62704C 62704D 62704D 62711 62712 62741B 62741K 62742B 62742K 62771 62772 68133A 68133C 68138 68139 9338516012 9338516012 9338516012 9338516012
Part # Description Qty Price
62703C - RETAINER, QUARTER WINDOW GLASS, UPPER, RH
62763-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
62703D - RETAINER, QUARTER WINDOW GLASS, LOWER, RH
62765-14030

AA63,MA61,RA6#,SA63,TA60

 2
62703D - RETAINER, QUARTER WINDOW GLASS, LOWER, RH
62765-14030

AA63,MA61,RA6#,SA63,TA60

 2
62704C - RETAINER, QUARTER WINDOW GLASS, UPPER, LH
62764-14020

AA63,MA61,RA6#,SA63,TA60..LB

 1
62704D - RETAINER, QUARTER WINDOW GLASS, LOWER, LH
62766-14030

AA63,MA61,RA6#,SA63,TA60

 2
62704D - RETAINER, QUARTER WINDOW GLASS, LOWER, LH
62766-14030

AA63,MA61,RA6#,SA63,TA60

 2
62711 - GLASS, QUARTER WINDOW, RH
62711-14120

AA63,MA61,RA6#,SA63,TA60..LB

T=3.5,*TT

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-14120

AA63,MA61,RA6#,SA63,TA60..LB

T=3.5,*TT

 1
62741B - SEAL, QUARTER WINDOW GLASS, RH
68177-14020

AA63,MA61,RA6#,SA63,TA60..LB

 1
62741K - DAM KIT, QUARTER WINDOW, RH
04681-20010

AA63,MA61,RA6#,SA63,TA60

 6
62742B - SEAL, QUARTER WINDOW GLASS, LH
68177-14020

AA63,MA61,RA6#,SA63,TA60..LB

 1
62742K - DAM KIT, QUARTER WINDOW, LH
04681-20010

AA63,MA61,RA6#,SA63,TA60

 1
62771 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH
62761-14030

AA63,MA61,RA6#,SA63,TA60

 1
62772 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH
62761-14030

AA63,MA61,RA6#,SA63,TA60

 1
68133A - SPACER, QUARTER WINDOW NO.2 GLASS
68137-14010

AA63,MA61,RA6#,SA63,TA60..LB

 2
68133C - SEAL, QUARTER WINDOW REAR SHIELD
61819-14020

AA63,MA61,RA6#,SA63,TA60..LB

 2
68138 - CUSHION, QUARTER WINDOW, NO.2 UPPER
62785-14010

AA63,MA61,RA6#,SA63,TA60

 8
68139 - CUSHION, QUARTER WINDOW, NO.2 LOWER
62786-14010

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
93385-16012
