RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

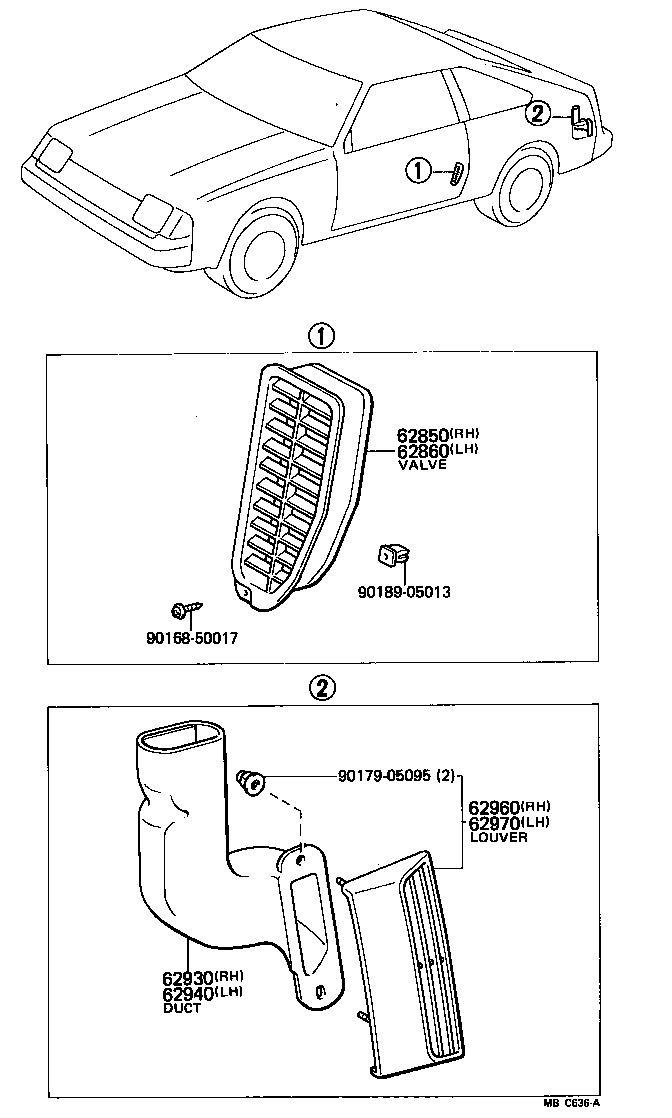

Click highlighted areas on diagram

diagram 62850 62860 62930 62940 62960 62970 9016850017 9017905095 9018905013
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-14040

AA63,MA61,RA6#,SA63,TA60

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-14030

AA63,MA61,RA6#,SA63,TA60

 1
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-14040

AA63,MA61,RA6#,SA63,TA60..LB

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19265

AA63,MA61,RA6#,SA63,TA60..LB

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19245

AA63,MA61,RA6#,SA63,TA60..LB

 1
Common parts
90168-50017
90179-05095
90189-05013
