RA61L-BLPSSW (1981)
Toyota Celica

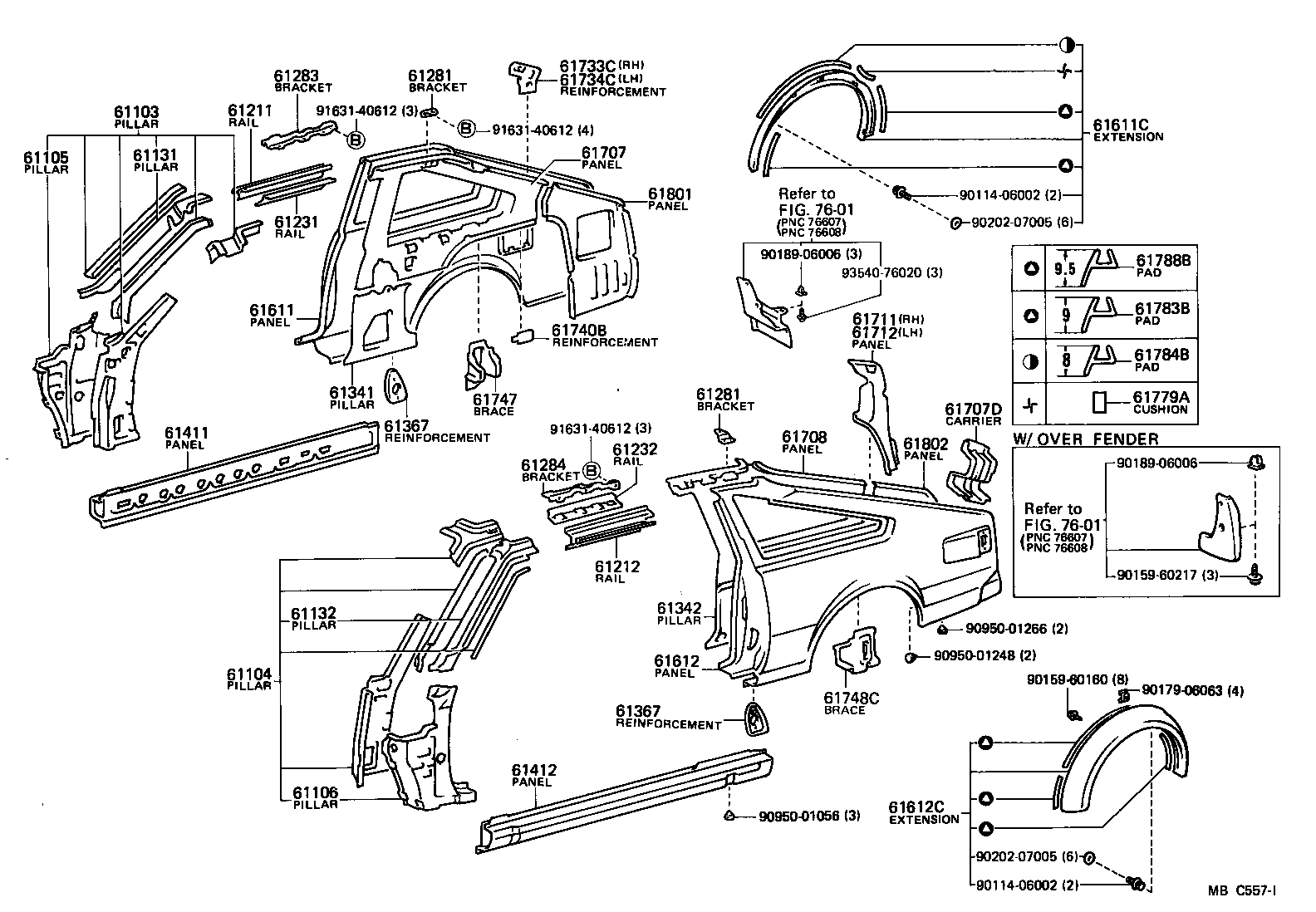

(8108- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14230 |
AA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN) |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14260 |
AA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN) |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61025-14050 |
AA63,MA61,RA60,61,63,TA60..LHD |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61026-14050 |
AA63,MA61,RA60,61,63,TA60..LHD |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-14170 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-14140 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-14901 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-14901 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-14150 |
RA6#,TA60..ARL,EUR,GEN W/SUN ROOF |
1 | ||
| 61231-14130 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-14150 |
RA6#,TA60..ARL,EUR,GEN W/SUN ROOF |
1 | ||
| 61232-14130 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-14030 |
RA6#,TA60..ARL,EUR,GEN |
2 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-14030 |
RA6#,TA60..ARL,EUR,GEN |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-14030 |
RA6#,TA60..ARL,EUR,GEN |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-14030 |
RA6#,TA60..ARL,EUR,GEN |
1 | ||
| 61341 - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-14010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61342 - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-14010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-14050 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-14050 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1B040 |
MA61,RA6#,TA60..LB..(ARL,EUR,GEN,ME) |
1 | ||
| 61601-1B030 |
RA6#,TA60..LB..(ARL,EUR,GEN) W/LID OPENER |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-14780 |
MA61,RA6#,TA60..LB..(ARL,EUR,GEN,ME) |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-14900 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61707D - CARRIER, JACK | ||||
| 58709-14030 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-14900 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-14080 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-14080 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61733C - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-14060 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61734C - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-14060 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61740B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER | ||||
| 61766-14060 |
AA63,MA61,RA6#,SA63,TA60 UPR |
2 | ||
| 61677-14020 |
AA63,MA61,RA6#,SA63,TA60 LWR,RH |
1 | ||
| 61678-14020 |
AA63,MA61,RA6#,SA63,TA60 LWR,LH |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-14030 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-14040 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61801 - PANEL, QUARTER INSIDE, REAR RH | ||||
| 61617-14050 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 61802 - PANEL, QUARTER INSIDE, REAR LH | ||||
| 61618-14060 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| Common parts | ||||
| 90114-06002 | ||||
| 90159-60160 | ||||
| 90159-60217 | ||||
| 90179-06063 | ||||
| 90189-06006 | ||||
| 90202-07005 | ||||
| 90950-01056 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 91631-40612 | ||||
| 93540-76020 | ||||
| Linked diagrams | ||||
| 7601 | ||||

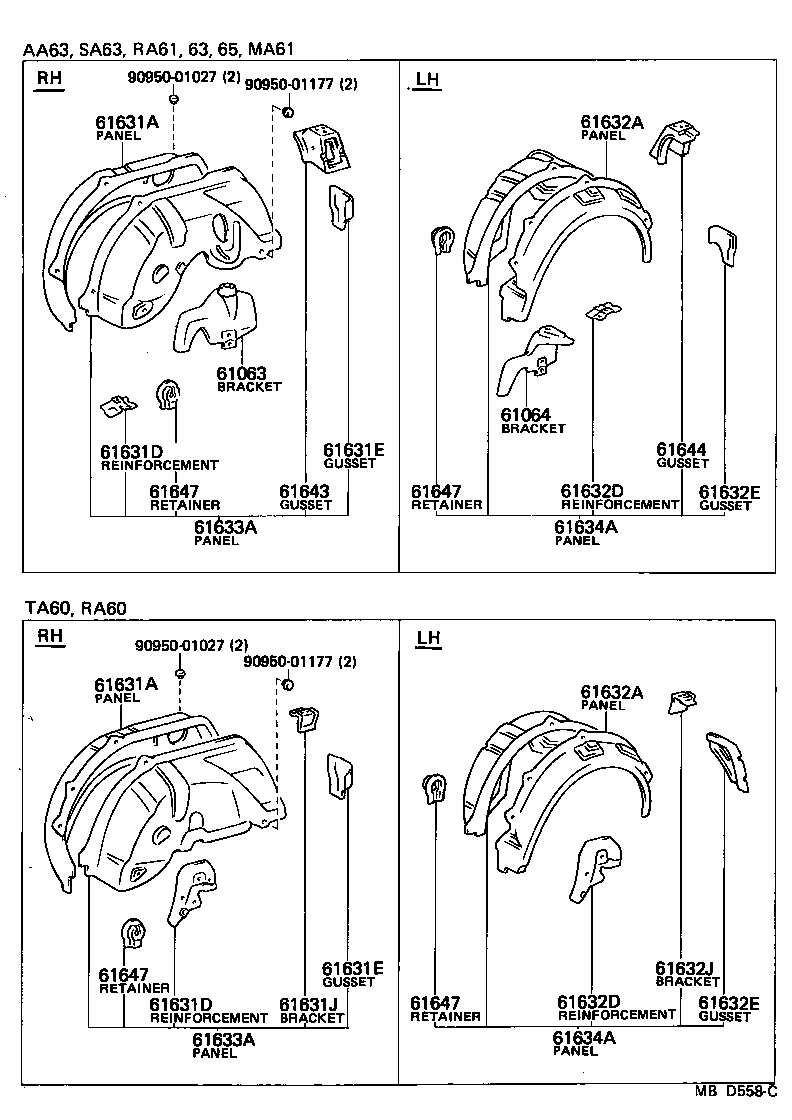

(8108- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61063 - BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH | ||||
| 61063-14030 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61064 - BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH | ||||
| 61064-14030 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61641-14020 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61641-14020 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14140 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14140 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61642-14010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61642-14010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-14910 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-14910 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-14910 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-14910 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-14020 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-14020 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
MA61,RA6#,TA60..LB |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
MA61,RA6#,TA60..LB |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
MA61,RA6#,TA60..LB |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
MA61,RA6#,TA60..LB |
2 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01177 | ||||
