RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,RA6#,SA63,TA60 ; (8112- )MA61..EUR,SA

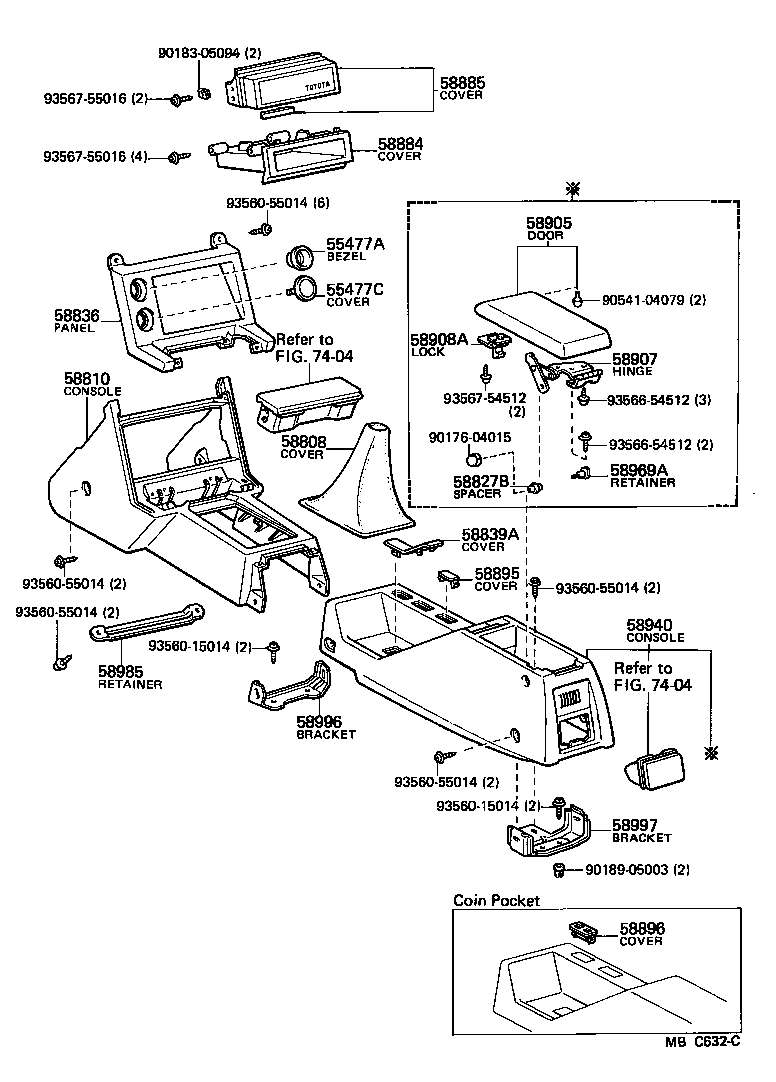

Click highlighted areas on diagram

diagram 55477A 55477C 58808 58810 58827B 58836 58839A 58884 58885 58895 58896 58905 58907 58908A 58940 58969A 58985 58996 58997 7404 9017604015 9018305094 9018905003 9054104079 9356015014 9356015014 9356055014 9356055014 9356055014 9356055014 9356055014 9356654512 9356654512 9356754512 9356755016 9356755016
Part # Description Qty Price
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-14050

AA63,MA61,RA6#,SA63,TA60

 1
55477C - COVER, COOLER SWITCH HOLE
55477-10010

AA63,MA61,RA6#,SA63,TA60

 1
58810 - CONSOLE ASSY
58811-1418006

AA63,RA6#,SA63,TA60

DARK BROWN,BROWN,TRIM4#

 1
58811-1418004

AA63,MA61,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
58811-1418001

AA63,MA61,RA6#,SA63,TA60

BLACK,BLACK,TRIM2#

 1
58836 - PANEL, CONSOLE, UPPER FRONT
58804-14030

MA61,RA61,63,TA60..LHD..EUG

W/SOFT PAD

 1
58821-14080

MA61,RA6#,TA60..LHD..(EUR,GEN,ME)

 1
58839A - COVER, CONSOLE BOX HOLE
58839-1401004

AA63,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
58839-1401006

AA63,RA6#,SA63,TA60

DARK BROWN,BROWN,TRIM4#

 1
58839-1401001

AA63,RA6#,SA63,TA60

BLACK,BLACK,TRIM2#

 1
58884 - COVER, STEREO OPENING
55521-14050

AA63,MA61,RA6#,SA63,TA60

 1
58885 - COVER, CONSOLE BOX OPENING
55522-14070

AA63,MA61,RA61,63,TA60..LHD..EUG

W/SOFT PAD

 1
55522-14080

AA63,MA61,RA60,61,63,TA60..EUR,GEN,SA

 1
58895 - COVER, SWITCH HOLE, NO.1
55539-2401006

AA63,RA6#,SA63,TA60

DARK BROWN,BROWN,TRIM4#

 1
55539-2401004

AA63,MA61,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
55539-2401001

AA63,MA61,RA6#,SA63,TA60

BLACK,BLACK,TRIM2#

 1
58896 - COVER, SWITCH HOLE, NO.2
55539-1403004

MA61,RA6#,TA60

W/COIN POCKET,BLUE,BLUE,TRIM8#

 1
55539-1403001

MA61,RA6#,TA60

W/COIN POCKET,BLACK,BLACK,TRIM2#

 1
55539-1403006

MA61,RA6#,TA60

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

 1
58940 - CONSOLE ASSY, REAR
58901-1404001

AA63,RA60,61,65,SA63,TA60..GTS,LT,ST

BLACK,BLACK,TRIM2#

 1
58901-1404006

AA63,RA60,61,65,SA63,TA60..GTS,LT,ST

DARK BROWN,BROWN,TRIM4#

 1
58901-1404004

AA63,RA60,61,65,SA63,TA60..GTS,LT,ST

BLUE,BLUE,TRIM8#

 1
58985 - RETAINER, CONSOLE BOX
58985-14020

MA61..TWC..(EUR,SA);AA63,RA61,63,TA60..EUG

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58902-14030

MA61,RA6#,TA60..ARL,EUR,GEN,ME

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-24010

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90176-04015
90183-05094
90189-05003
90541-04079
93560-15014
93560-55014
93566-54512
93567-54512
93567-55016
Linked diagrams
7404
