RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

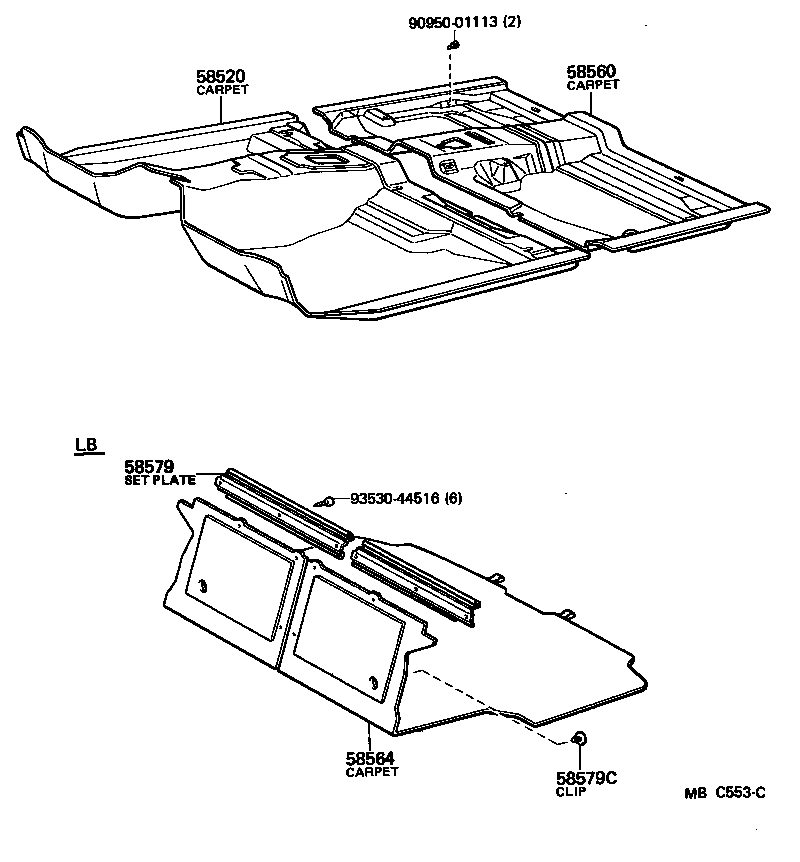

Click highlighted areas on diagram

diagram 58520 58560 58564 58579 58579C 9095001113 9353044516
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1465006

RA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)

DARK BROWN,BROWN,TRIM4#

 1
58510-1465001

RA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)

BLACK,BLACK,TRIM2#

 1
58510-1465014

RA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)

BLUE,BLUE,TRIM8#

 1
58510-1468006

RA61,TA60..LHD..(LT,ST)..EUR

W/RR DUCT,DARK BROWN,BROWN,TRIM4#

 1
58510-1468001

RA61,TA60..LHD..(LT,ST)..EUR

W/RR DUCT,BLACK,BLACK,TRIM2#

 1
58510-1468014

RA61,TA60..LHD..(LT,ST)..EUR

W/RR DUCT,BLUE,BLUE,TRIM8#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1419001

RA60,61,TA60..LT,ST

BLACK,BLACK,TRIM2#

 1
58540-1419014

RA60,61,TA60..LT,ST

BLUE,BLUE,TRIM8#

 1
58540-1419006

RA60,61,TA60..LT,ST

DARK BROWN,BROWN,TRIM4#

 1
58564 - CARPET, REAR FLOOR
58570-1422001

RA61..LB..ST

BLACK,BLACK,TRIM2#

 1
58570-1422006

RA61..LB..ST

DARK BROWN,BROWN,TRIM4#

 1
58570-1422004

RA61..LB..ST

BLUE,BLUE,TRIM8#

 1
58579 - SET PLATE, REAR FLOOR CARPET, NO.1
58584-14010

AA63,RA6#,SA63,TA60..LB

LH

 1
58583-14020

AA63,RA6#,SA63,TA60..LB

RH

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-0601604

AA63,MA61,RA6#,SA63,TA60..LB

BLUE,BLUE,TRIM8#

 4
90467-0601601

AA63,MA61,RA6#,SA63,TA60..LB

BLACK,BLACK,TRIM2#

 4
90467-0601606

AA63,RA6#,SA63,TA60..LB

DARK BROWN,BROWN,TRIM4#

 4
Common parts
90950-01113
93530-44516
