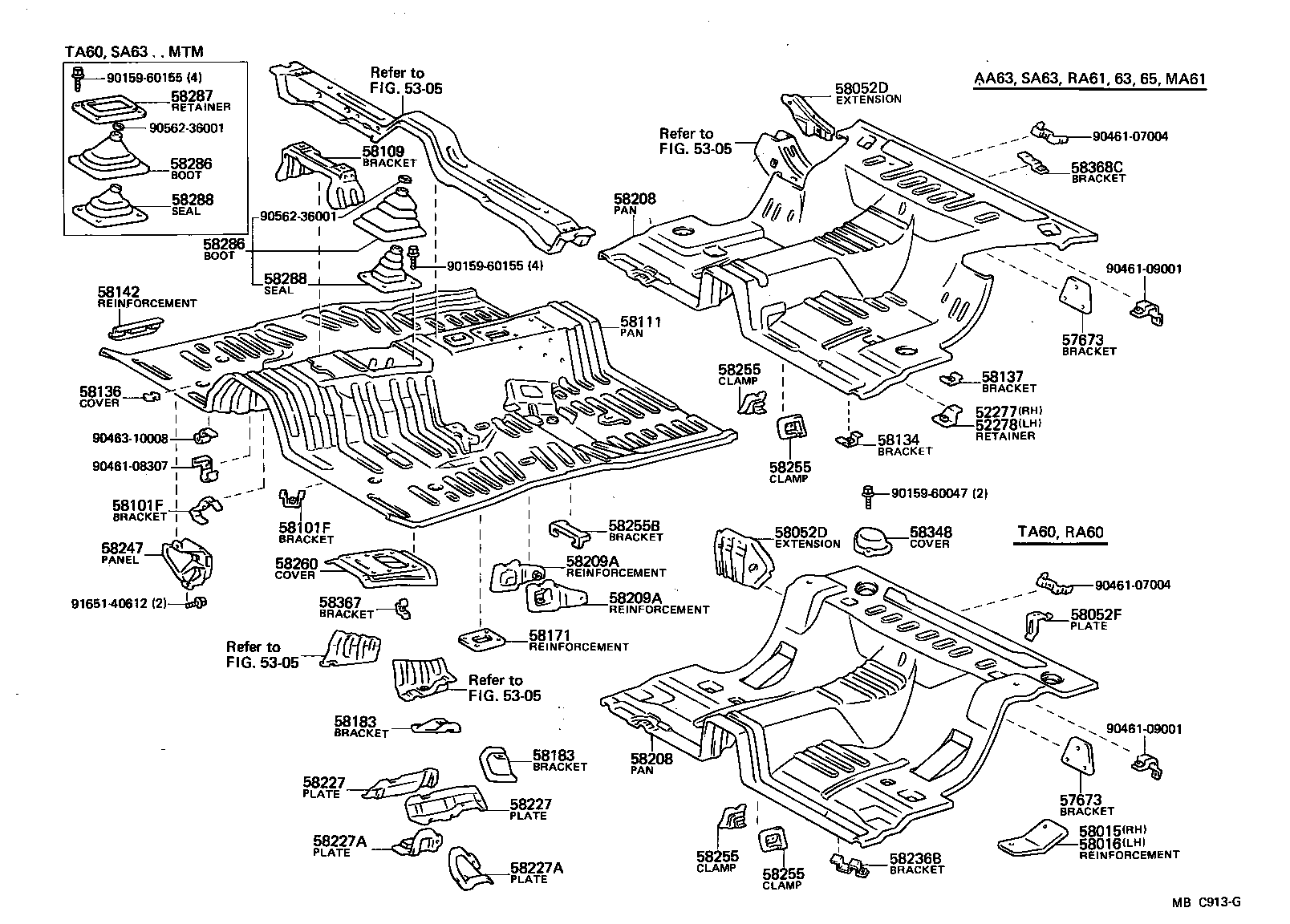

RA61L-BLPSSW (1981)
Toyota Celica
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 52278 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH | ||||
| 52278-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-14010 |
AA63,MA61,RA60,61,63,SA63,TA60..LB |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-14010 |
AA63,MA61,RA60,61,63,SA63,TA60..LB |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
AA63,MA61,RA6#,SA63,TA60 |
7 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
AA63,MA61,RA6#,SA63,TA60 |
7 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-24010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-24010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
MA61,RA6#,TA60 |
2 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-24010 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-24010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58184-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58184-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14110 |
AA63,MA61,RA61,63,SA63..LB |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14110 |
AA63,MA61,RA61,63,SA63..LB |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58205-14020 |
AA63,RA6#,TA60 RH |
1 | ||
| 58278-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58205-14020 |
AA63,RA6#,TA60 RH |
1 | ||
| 58278-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58227-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58227-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58229-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58228-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58229-24010 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 58228-24010 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 58247 - PANEL, FOOTREST, INSIDE | ||||
| 58192-14020 |
AA63,MA61,RA60,61,63,TA60..LHD |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-14030 |
AA63,MA61,RA61,63,65,SA63 RH |
1 | ||
| 58208-14030 |
AA63,MA61,RA61,63,65,SA63 LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-14030 |
AA63,MA61,RA61,63,65,SA63 RH |
1 | ||
| 58208-14030 |
AA63,MA61,RA61,63,65,SA63 LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-14030 |
AA63,MA61,RA61,63,65,SA63 RH |
1 | ||
| 58208-14030 |
AA63,MA61,RA61,63,65,SA63 LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-14030 |
AA63,MA61,RA61,63,65,SA63 RH |
1 | ||
| 58208-14030 |
AA63,MA61,RA61,63,65,SA63 LH |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-14010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-24020 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14040 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58368C - BRACKET, FUEL TUBE, NO.3 | ||||
| 58267-14030 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90159-60155 | ||||
| 90461-07004 | ||||
| 90461-08307 | ||||
| 90461-09001 | ||||
| 90463-10008 | ||||
| 90562-36001 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 5305 | ||||

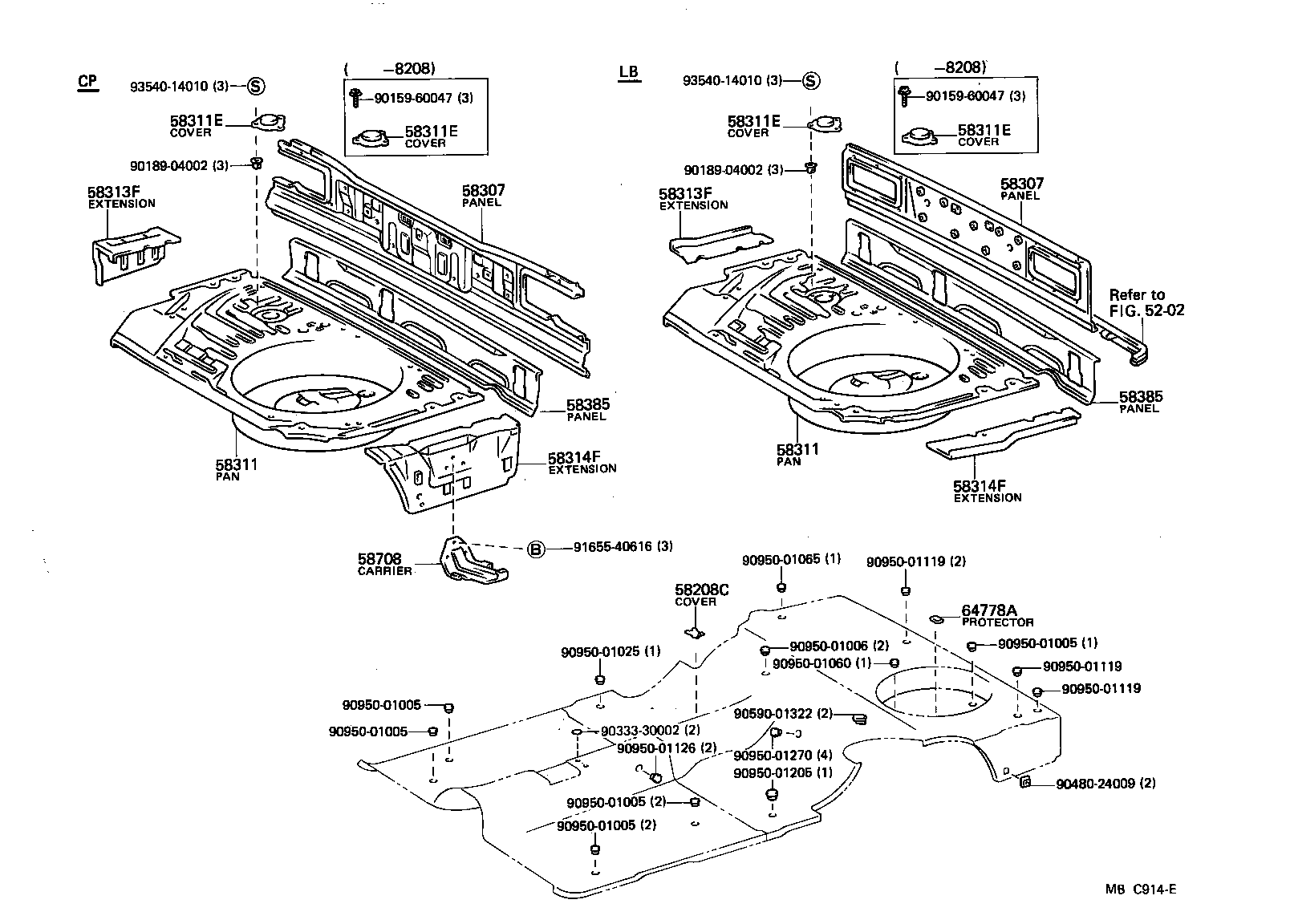

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58208C - COVER, CENTER FLOOR HOLE | ||||
| 58285-14010 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14450 |
AA63,RA6#,SA63,TA60..LB |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14450 |
AA63,RA6#,SA63,TA60..LB |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14925 |
AA63,MA61,RA61,63,65,SA63..LB..(ARL,EUR,GEN,SA) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14925 |
AA63,MA61,RA61,63,65,SA63..LB..(ARL,EUR,GEN,SA) |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14160 |
AA63,MA61,RA61,63,65,SA63..LB |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14160 |
AA63,MA61,RA61,63,65,SA63..LB |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-14110 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-14110 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-14060 |
AA63,RA6#,SA63,TA60..LB |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-14060 |
AA63,RA6#,SA63,TA60..LB |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90480-24009 | ||||
| 90590-01322 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01119 | ||||
| 90950-01126 | ||||
| 90950-01205 | ||||
| 90950-01270 | ||||
| 91655-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5202 | ||||
