RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

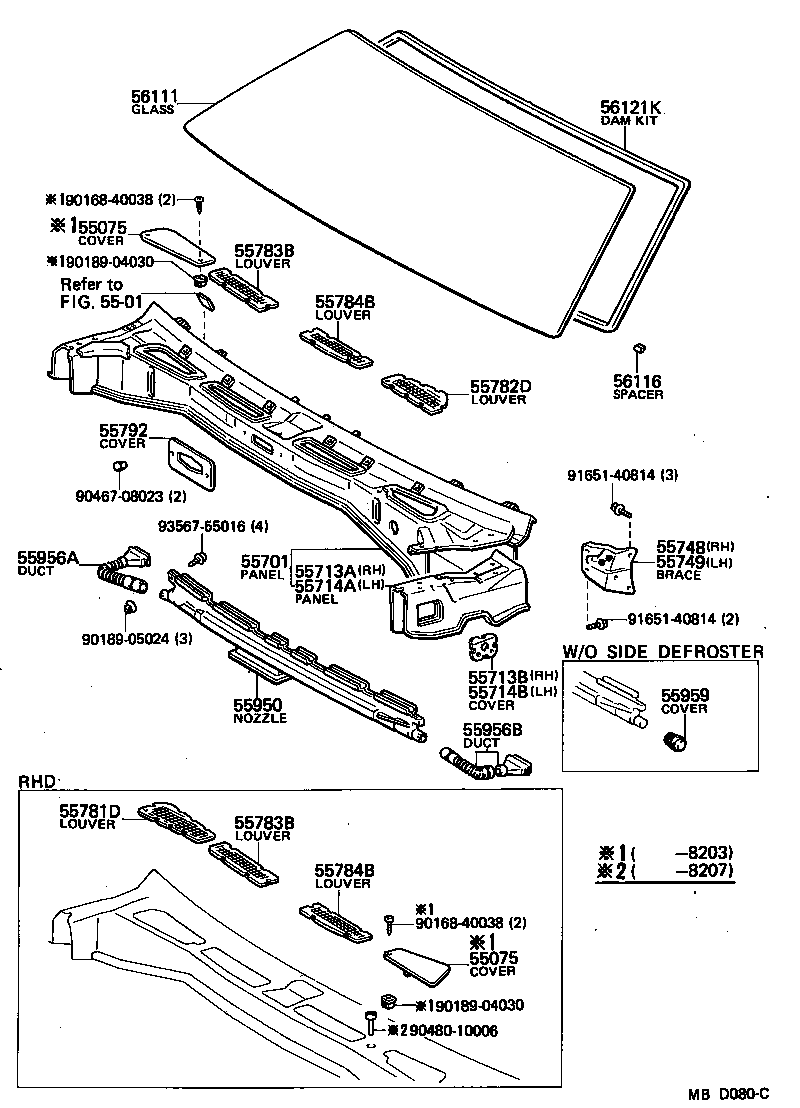

Click highlighted areas on diagram

diagram 5501 55075 55075 55701 55713A 55713B 55714A 55714B 55748 55749 55781D 55782D 55783B 55783B 55784B 55784B 55792 55950 55956A 55956B 55959 56111 56116 56121K 9016840038 9016840038 9018904030 9018904030 9018905024 9046708023 9048010006 9165140814 9165140814 9356755016
Part # Description Qty Price
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55791-14031

MA61,RA6#,TA60..LHD

 1
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55791-14031

MA61,RA6#,TA60..LHD

 1
55701 - PANEL SUB-ASSY, COWL
55700-14530

RA61..LHD..4FC..EUG

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14080

AA63,RA6#,SA63,TA60

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
62161-14010

AA63,MA61,RA6#,SA63,TA60

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14080

AA63,RA6#,SA63,TA60

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
62162-14010

AA63,MA61,RA6#,SA63,TA60

 1
55748 - BRACE, COWL TOP TO PILLAR, RH
55748-14030

AA63,MA61,RA6#,SA63,TA60

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-14060

MA61..RHD..GEN;MA61..ARL,EUR,SA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-14040

AA63,MA61,RA60,61,63,TA60..LHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14080

AA63,MA61,RA6#,SA63,TA60

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14080

AA63,MA61,RA6#,SA63,TA60

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14080

AA63,MA61,RA6#,SA63,TA60

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14080

AA63,MA61,RA6#,SA63,TA60

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

MA61,RA6#,TA60

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14100

AA63,MA61,RA60,61,63,TA60..LHD

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14030

AA63,MA61,RA6#,SA63,TA60

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55971-14030

AA63,MA61,RA6#,SA63,TA60

 1
56111 - GLASS, WINDSHIELD
56111-14340

MA61..TWC;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,TA60..EUR,GEN,ME

T=5.3,W/SUN SHADE,*TL

 1
56111-14310

RA61..RHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..TWC..(EUR,GEN);RA61..LHD..4FC..(EUR,GEN);AA63,RA60,63,TA60..EUR,GEN

T=5.0,*TZT

 1
56111-14320

AA63,MA61,RA60,61,63,TA60..EUR,GEN

T=5.3,*TL

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14040

AA63,MA61,RA6#,SA63,TA60

SIDE,20 X 8 X 9.2

 1
56116-14020

AA63,MA61,RA6#,SA63,TA60

LWR,20 X 7.5 X 11.5

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-14010

MA61,RA6#,TA60

 1
Common parts
90168-40038
90189-04030
90189-05024
90467-08023
90480-10006
91651-40814
93567-55016
Linked diagrams
5501
