RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA6#,TA60

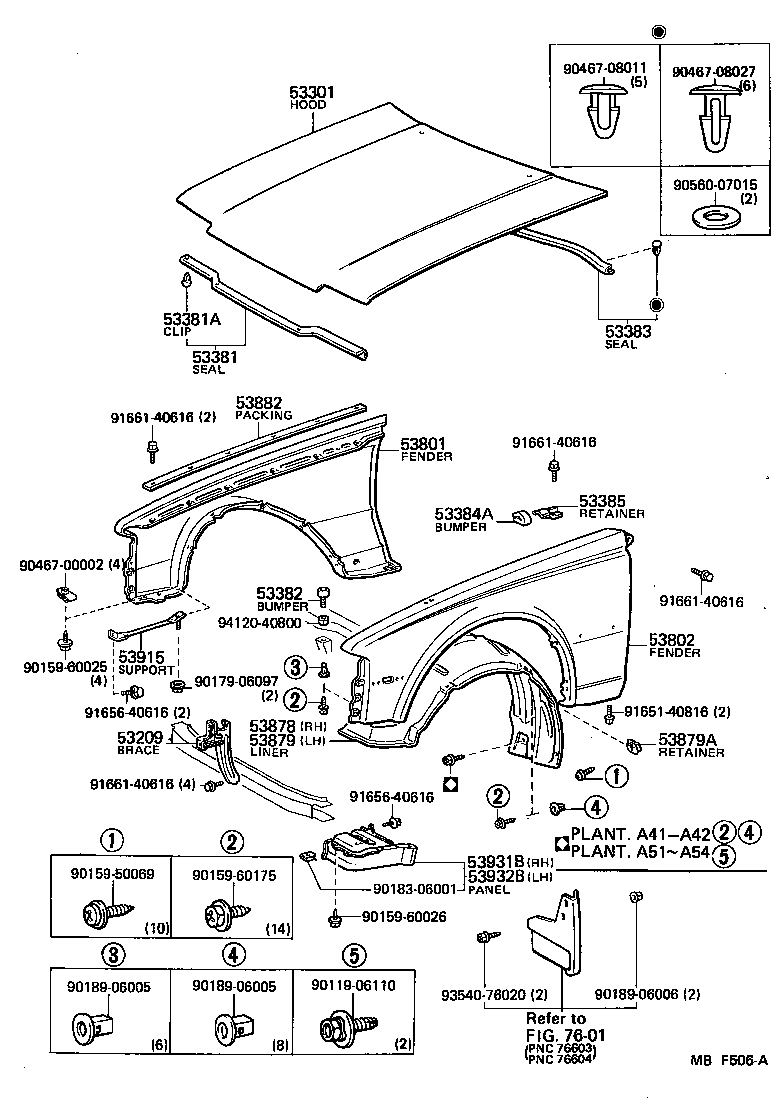

Click highlighted areas on diagram

diagram 53209 53301 53381 53381A 53382 53383 53384A 53385 53801 53802 53878 53879 53879A 53882 53915 53931B 53932B 7601 9011906110 9015950069 9015960025 9015960026 9015960175 9017906097 9018306001 9018906005 9018906005 9018906006 9046700002 9046708011 9046708027 9056007015 9165140816 9165640616 9165640616 9166140616 9166140616 9166140616 9166140616 9354076020 9412040800
Part # Description Qty Price
53209 - BRACE SUB-ASSY, HOOD LOCK
53208-14120

RA6#,TA60

 1
53301 - HOOD SUB-ASSY
53301-14220

RA6#,TA60

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14100

AA63,RA6#,SA63,TA60

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08028

AA63,RA6#,SA63,TA60

 7
53382 - BUMPER, HOOD, FRONT
53382-20011

AA63,MA61,RA6#,SA63,TA60

 4
53383 - SEAL, HOOD TO COWL TOP
53383-14080

AA63,RA6#,SA63,TA60

 1
53384A - BUMPER, FENDER TO HOOD
53384-14030

AA63,MA61,RA6#,SA63,TA60

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

AA63,MA61,RA6#,SA63,TA60

LH

 1
53386-14010

AA63,MA61,RA6#,SA63,TA60

RH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-14630

AA63,RA61,63,TA60..EUR

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-14620

AA63,RA61,63,TA60..EUR

 1
53878 - LINER, FRONT FENDER, RH
53875-14110

AA63,RA6#,SA63,TA60

 1
53879 - LINER, FRONT FENDER, LH
53876-14110

AA63,RA6#,SA63,TA60

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AA63,MA61,RA6#,SA63,TA60

TYPE A

 10
53882 - PACKING, FRONT FENDER MAIN
53882-14090

AA63,RA6#,SA63,TA60

 2
53915 - SUPPORT, FRONT VALANCE PANEL
53915-14060

AA63,RA6#,SA63,TA60

RH

 1
53916-14070

AA63,RA6#,SA63,TA60

LH

 1
53931B - PANEL, FRONT END, RH
53931-14040

RA6#,TA60

 1
53932B - PANEL, FRONT END, LH
53932-14010

RA6#,TA60

 1
Common parts
90119-06110
90159-50069
90159-60025
90159-60026
90159-60175
90179-06097
90183-06001
90189-06005
90189-06006
90467-00002
90467-08011
90467-08027
90560-07015
91651-40816
91656-40616
91661-40616
93540-76020
94120-40800
Linked diagrams
7601
