RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

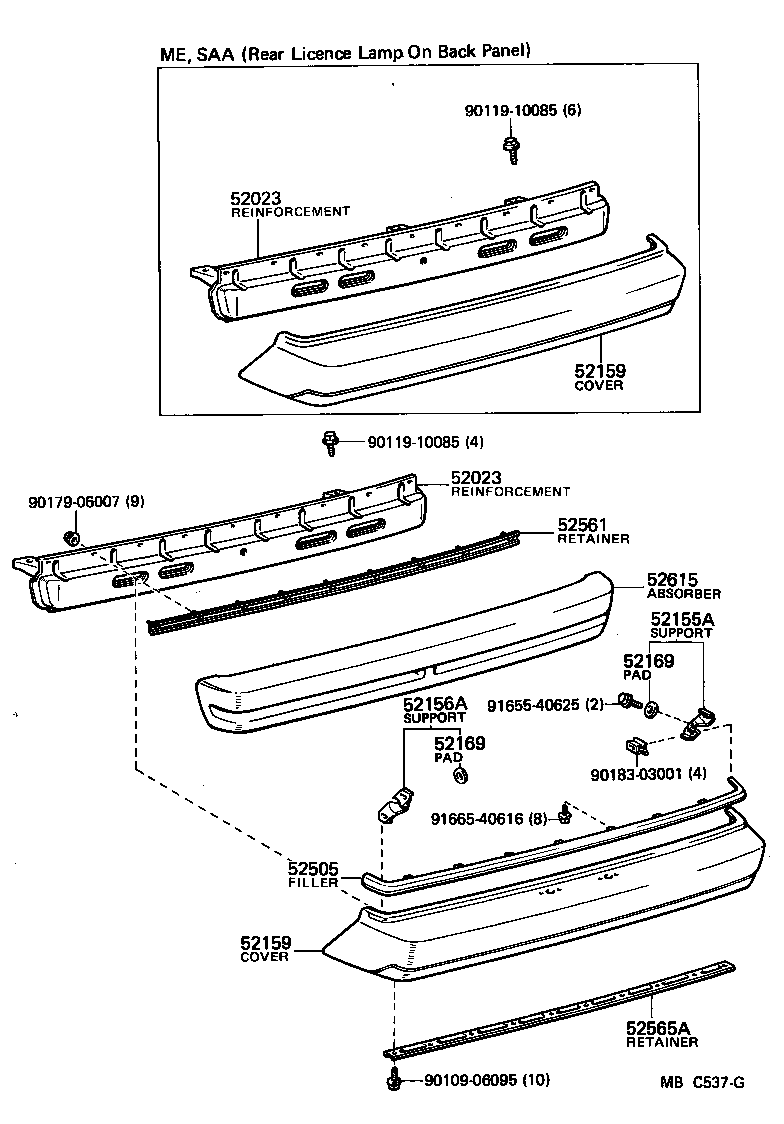

Click highlighted areas on diagram

diagram 52023 52023 52155A 52156A 52159 52159 52169 52169 52505 52561 52565A 52615 9010906095 9011910085 9011910085 9017906007 9018303001 9165540625 9166540616
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14100

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SA)

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14100

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SA)

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-14090

AA63,RA6#,SA63,TA60..LB

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-14090

AA63,RA6#,SA63,TA60..LB

 1
52159 - COVER, REAR BUMPER
52159-14180

AA63,RA6#,SA63,TA60..LB..(ARL,EUR,GEN)

 1
52159 - COVER, REAR BUMPER
52159-14180

AA63,RA6#,SA63,TA60..LB..(ARL,EUR,GEN)

 1
52169 - PAD, REAR BUMPER
68863-16010

AA63,RA6#,SA63,TA60..LB

 2
52169 - PAD, REAR BUMPER
68863-16010

AA63,RA6#,SA63,TA60..LB

 2
52505 - FILLER SUB-ASSY, REAR BUMPER
52505-14030

AA63,RA6#,SA63,TA60..LB

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52305-14060

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SA)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14070

AA63,RA6#,SA63,TA60..LB

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-14120

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,SA)

 1
Common parts
90109-06095
90119-10085
90179-06007
90183-03001
91655-40625
91665-40616
