RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

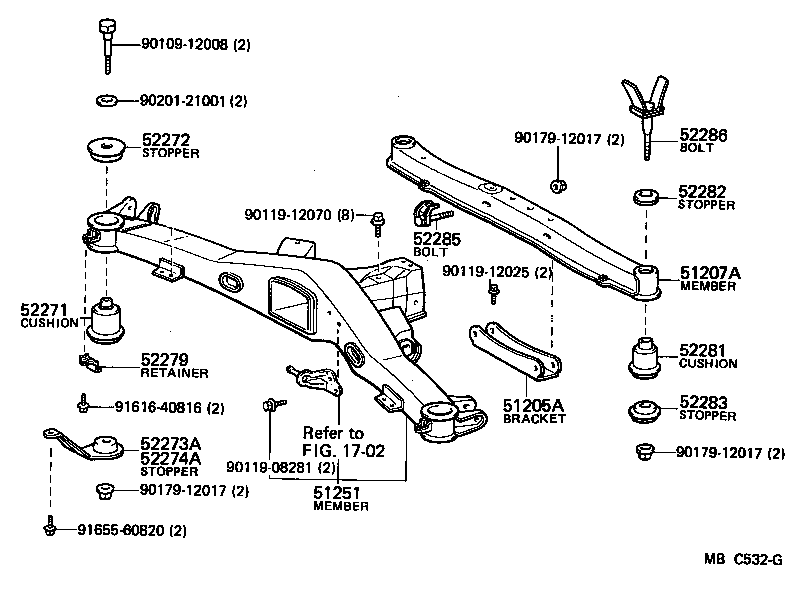

(8108- )AA63,MA61,RA61,63,65,SA63
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51205A - BRACKET SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51205-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51207-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 51251 - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-14030 |
MA61;AA63,RA61,63,65..ARL,EUR |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-22030 |
RA61,63 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52273-14010 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-14010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-14010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-14010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-14011 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-14010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-14011 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| Common parts | ||||
| 90109-12008 | ||||
| 90119-08281 | ||||
| 90119-12025 | ||||
| 90119-12070 | ||||
| 90179-12017 | ||||
| 90201-21001 | ||||
| 91616-40816 | ||||
| 91655-60820 | ||||
| Linked diagrams | ||||
| 1702 | ||||

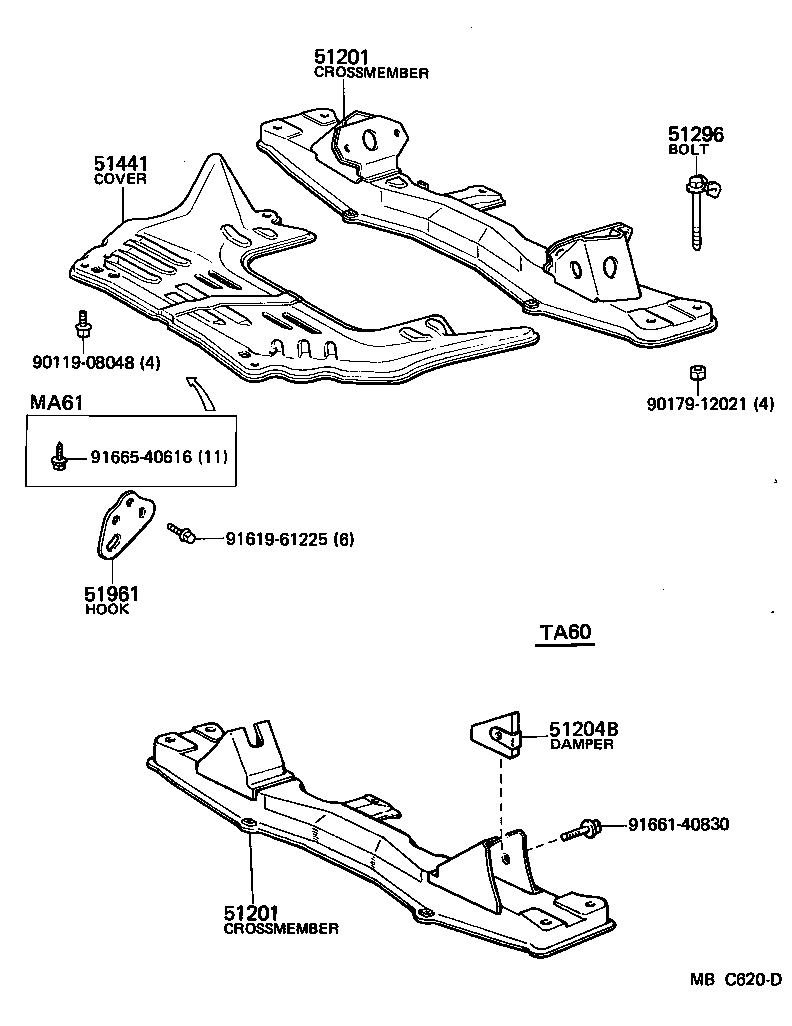

(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-14210 |
RA60,61,63..LHD |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-14210 |
RA60,61,63..LHD |
1 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51296-24010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-14050 |
RA6#,SA63 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-14080 |
AA63,RA6#,SA63,TA60 |
2 | ||
| Common parts | ||||
| 90119-08048 | ||||
| 90179-12021 | ||||
| 91619-61225 | ||||
| 91661-40830 | ||||
| 91665-40616 | ||||
