RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,RA61,63..LHD

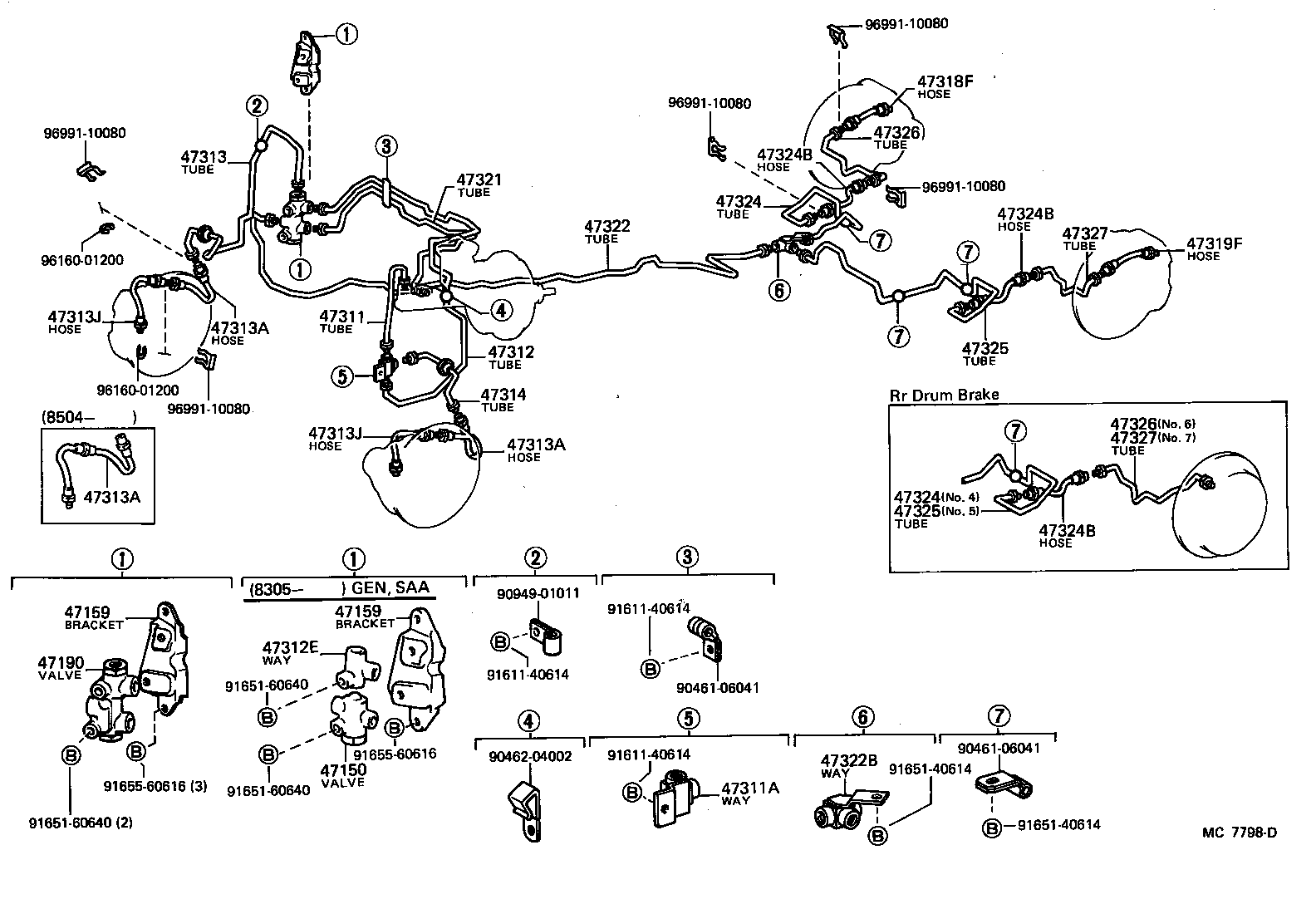

Click highlighted areas on diagram

diagram 47150 47159 47159 47190 47311 47311A 47312 47312E 47313 47313A 47313A 47313A 47313J 47313J 47314 47318F 47319F 47321 47322 47322B 47324 47324 47324B 47324B 47324B 47325 47325 47326 47326 47327 47327 9046106041 9046106041 9046204002 9094901011 9161140614 9161140614 9161140614 9165140614 9165140614 9165160640 9165160640 9165160640 9165560616 9165560616 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14040

RA6#,TA60..LHD

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14040

RA6#,TA60..LHD

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-14020

AA63,RA61,63..LHD..EUR

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14220

RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

RA63;AA63,RA60,61,TA60..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14120

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14120

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA6#,SA63,TA60

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA6#,SA63,TA60

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14090

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14110

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14120

RA63..LHD;RA61..LHD..EUG

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10109

AA63,MA61,RA61,63,65,SA63

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47325 - TUBE, REAR BRAKE, NO.5
47326-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47326-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-14020

AA63,RA61,SA63..GTS,ST,XT

 1
Common parts
90461-06041
90462-04002
90949-01011
91611-40614
91651-40614
91651-60640
91655-60616
96160-01200
96991-10080
