RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LHD

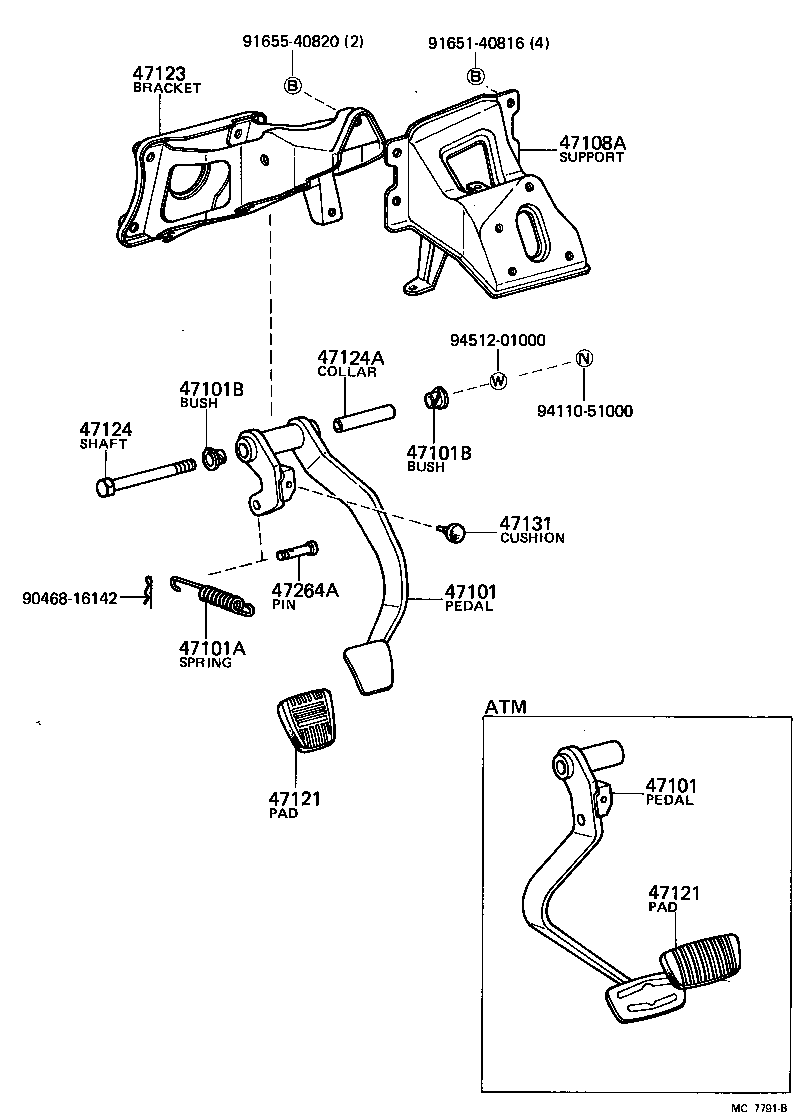

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101B 47101B 47108A 47121 47121 47123 47124 47124A 47131 47264A 9046816142 9165140816 9165540820 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-14110

RA60,61,TA60..LHD..ATM

 1
47101 - PEDAL SUB-ASSY, BRAKE
47101-14110

RA60,61,TA60..LHD..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12011

AA63,MA61,RA6#,SA63,TA60

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

AA63,MA61,RA6#,SA63,TA60

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

AA63,MA61,RA6#,SA63,TA60

 2
47108A - SUPPORT SUB-ASSY, STEERING
55108-14010

RA60,61,63,TA60..LHD

 1
47121 - PAD, BRAKE PEDAL
47121-30050

MA61,RA60,61,65,SA63,TA60..ATM

 1
47121 - PAD, BRAKE PEDAL
47121-30050

MA61,RA60,61,65,SA63,TA60..ATM

 1
47123 - BRACKET, BRAKE PEDAL
55106-14250

MA61,RA6#,TA60..LHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10043

AA63,MA61,RA60,61,63,TA60..LHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10002

AA63,MA61,RA60,61,63,TA60..LHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

AA63,MA61,RA6#,SA63,TA60

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90468-16142
91651-40816
91655-40820
94110-51000
94512-01000
