RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

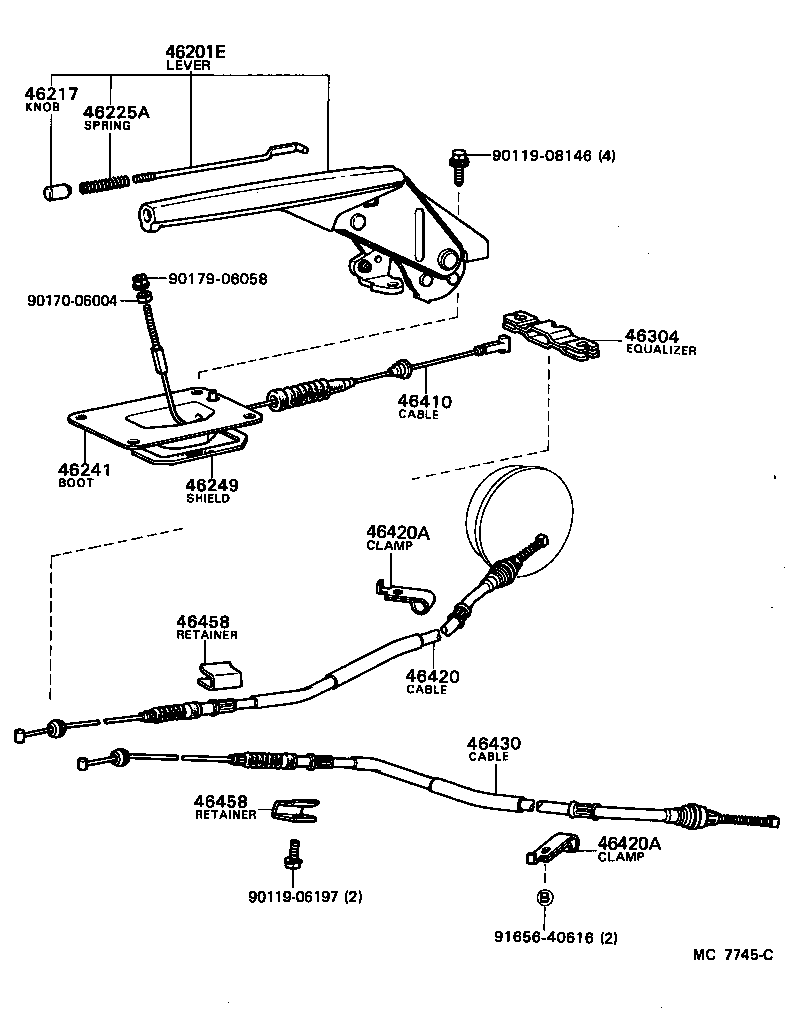

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46304 46410 46420 46420A 46420A 46430 46458 46458 9011906197 9011908146 9017006004 9017906058 9165640616
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-1411006

RA60,61,TA60..LT,ST

DARK BROWN,BROWN,TRIM4#

 1
46201-1411001

RA60,61,TA60..LT,ST

BLACK,BLACK,TRIM2#

 1
46201-1411004

RA60,61,TA60..LT,ST

BLUE,BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002014

AA63,MA61,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
46217-1002001

AA63,MA61,RA6#,SA63,TA60

BLACK,BLACK,TRIM2#

 1
46217-1002026

RA6#,TA60;AA63,MA61..EUR

DARK BROWN,BROWN,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

AA63,MA61,RA6#,SA63,TA60

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-24010

AA63,MA61,RA6#,SA63,TA60

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-24010

AA63,MA61,RA6#,SA63,TA60

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

AA63,MA61,RA6#,SA63,TA60

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-24010

AA63,MA61,RA6#,SA63,TA60

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-14210

RA61..EUR

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-14013

AA63,MA61,RA61,63,65,SA63

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-14013

AA63,MA61,RA61,63,65,SA63

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-14250

RA61..EUR

 1
46458 - RETAINER, CABLE
46458-20020

AA63,MA61,RA6#,SA63,TA60

 2
46458 - RETAINER, CABLE
46458-20020

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
90119-06197
90119-08146
90170-06004
90179-06058
91656-40616
