RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,61..LHD

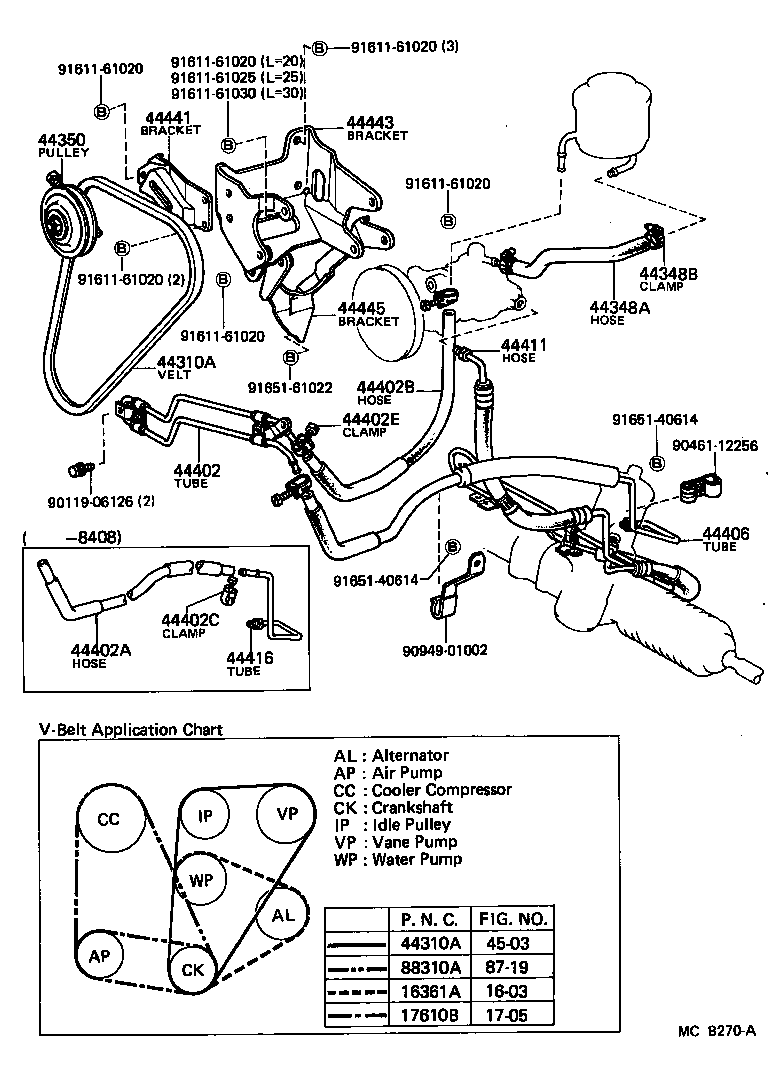

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44348A 44348B 44350 44402 44402A 44402B 44402C 44402E 44406 44411 44416 44441 44443 44445 4503 8719 88310A 9011906126 9046112256 9094901002 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161030 9165140614 9165140614 9165161022
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21R#..RA60,61

L=880

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14020

RA60,61,65

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

MA61,RA60,61,65,SA63

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

RA60,61,65

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14060

RA60,61

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-14040

RA60,61

 1
44412-14050

RA60,61

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA61,RA60,61,65,SA63

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA61,RA60,61,65,SA63

 2
44411 - HOSE, PRESSURE FEED
44410-14050

RA60,61..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14110

RA60,61..LHD

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RA60,61,65

 1
44443 - BRACKET, PUMP
44443-20031

RA60,61

 1
44445 - BRACKET, PUMP, LOWER
44445-20010

RA60,61

 1
Common parts
90119-06126
90461-12256
90949-01002
91611-61020
91611-61025
91611-61030
91651-40614
91651-61022
Linked diagrams
1603
1705
4503
8719
