RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

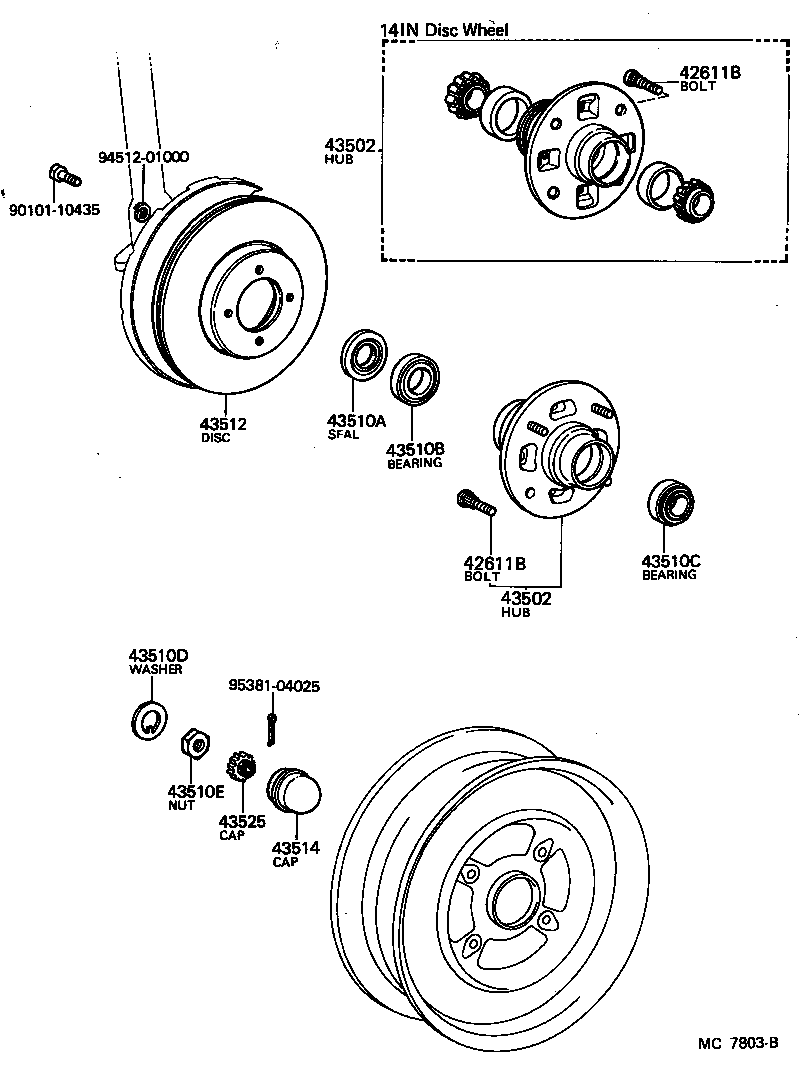

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02035 |
MA61,RA6# |
8 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02035 |
MA61,RA6# |
8 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-29015 |
MA61,RA6# |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-29015 |
MA61,RA6# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-48001 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-31067 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-19037 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-14080 |
AA63,RA6#,SA63;MA61..ARL,GEN,SA,SAA |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-22020 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
AA63,MA61,RA6#,SA63 |
2 | ||
| Common parts | ||||
| 90101-10435 | ||||
| 94512-01000 | ||||
| 95381-04025 | ||||
