RA61L-BLPSSW (1981)
Toyota Celica
(8108-8507)RA65..4FC ; (8108-8507)AA63,RA61,63,SA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

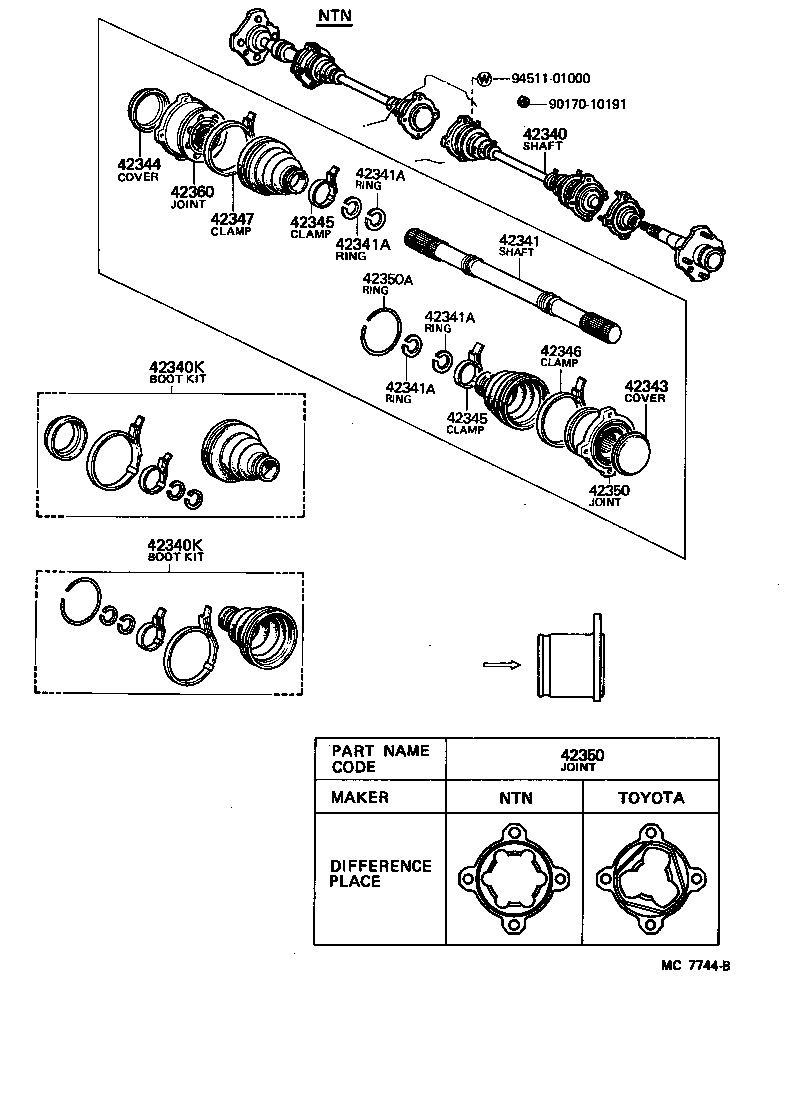

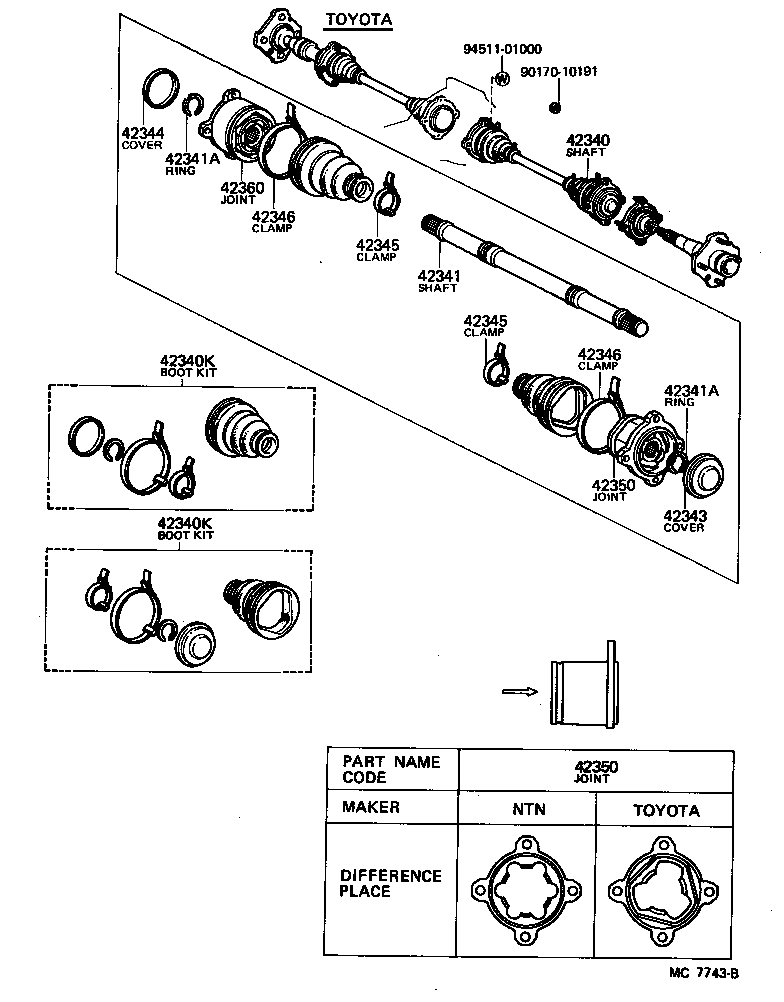

| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-14010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42340-14020 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42340K - BOOT KIT, REAR DRIVE SHAFT JOINT | ||||
| 04437-14010 |
RA61,63 INNER(TOYOTA) |
2 | ||
| 04437-14020 |
RA65..4FC;AA63,RA61,63,SA63 OUTER(TOYOTA) |
2 | ||
| 04437-22020 |
AA63,MA61,RA61,63,65,SA63 OUTER(NTN) |
2 | ||
| 04437-22010 |
AA63,MA61,RA61,63,65,SA63 INNER(NTN) |
2 | ||
| 42340K - BOOT KIT, REAR DRIVE SHAFT JOINT | ||||
| 04437-14010 |
RA61,63 INNER(TOYOTA) |
2 | ||
| 04437-14020 |
RA65..4FC;AA63,RA61,63,SA63 OUTER(TOYOTA) |
2 | ||
| 04437-22020 |
AA63,MA61,RA61,63,65,SA63 OUTER(NTN) |
2 | ||
| 04437-22010 |
AA63,MA61,RA61,63,65,SA63 INNER(NTN) |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-14020 |
RA61,63 TOYOTA |
2 | ||
| 42341-14010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42343-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42344-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42345-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42345-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14020 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42346-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14020 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42346-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42360-14010 |
RA61,63 TOYOTA |
2 | ||
| 42360-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
(8108- )AA63,MA61,RA61,63,65,SA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-14010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42340-14020 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42340K - BOOT KIT, REAR DRIVE SHAFT JOINT | ||||
| 04437-14010 |
RA61,63 INNER(TOYOTA) |
2 | ||
| 04437-14020 |
RA65..4FC;AA63,RA61,63,SA63 OUTER(TOYOTA) |
2 | ||
| 04437-22020 |
AA63,MA61,RA61,63,65,SA63 OUTER(NTN) |
2 | ||
| 04437-22010 |
AA63,MA61,RA61,63,65,SA63 INNER(NTN) |
2 | ||
| 42340K - BOOT KIT, REAR DRIVE SHAFT JOINT | ||||
| 04437-14010 |
RA61,63 INNER(TOYOTA) |
2 | ||
| 04437-14020 |
RA65..4FC;AA63,RA61,63,SA63 OUTER(TOYOTA) |
2 | ||
| 04437-22020 |
AA63,MA61,RA61,63,65,SA63 OUTER(NTN) |
2 | ||
| 04437-22010 |
AA63,MA61,RA61,63,65,SA63 INNER(NTN) |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-14020 |
RA61,63 TOYOTA |
2 | ||
| 42341-14010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AA63,MA61,RA61,63,65,SA63 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RA61,63 TOYOTA |
4 | ||
| 90520-26004 |
AA63,MA61,RA61,63,65,SA63 NTN,T=1.5 |
4 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42343-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42344-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42345-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42345-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14020 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
4 | ||
| 42346-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42347-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| 42350-14010 |
RA65..4FC;AA63,RA61,63,SA63 TOYOTA |
2 | ||
| 42350A - RING, HOLE SNAP | ||||
| 90521-79001 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42360-14010 |
RA61,63 TOYOTA |
2 | ||
| 42360-22010 |
AA63,MA61,RA61,63,65,SA63 NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
(8108- )AA63,MA61,RA61,63,65,SA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

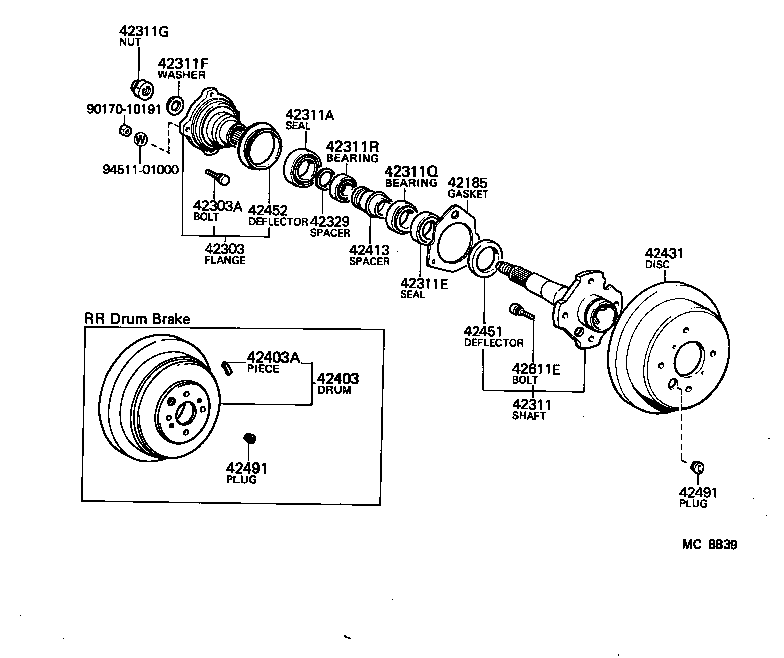

| 42303 - FLANGE SUB-ASSY, REAR AXLE | ||||
| 42303-22010 |
AA63,MA61,RA61,63,SA63 |
2 | ||
| 42303A - BOLT, SERRATION (FOR REAR AXLE FLANGE) | ||||
| 90114-10003 |
AA63,MA61,RA61,63,65,SA63 |
8 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-22050 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-38009 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-48122 |
MA61,RA61,63 |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20329 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20061 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42311Q - BEARING (FOR REAR AXLE SHAFT OUTER) | ||||
| 90368-34083 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42311R - BEARING (FOR REAR AXLE SHAFT INNER) | ||||
| 90366-30001 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42329 - SPACER, REAR AXLE SHAFT | ||||
| 42329-22010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-14080 |
AA63,RA61,65,SA63..GTS,ST,XT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 20G,20G |
2 | ||
| 90937-01117 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 10G,10G |
2 | ||
| 90937-01196 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 50G,50G |
2 | ||
| 90937-01195 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 40G,40G |
2 | ||
| 90937-01197 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 60G,60G |
2 | ||
| 90937-01119 |
RA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT 30G,30G |
2 | ||
| 42413 - SPACER, REAR WHEEL BEARING | ||||
| 42413-22010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-22010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-22010 |
AA63,MA61,RA61,63,SA63 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
AA63,RA61,65,SA63..GTS,ST,XT |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
AA63,RA61,65,SA63..GTS,ST,XT |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02035 |
MA61,RA6#,TA60 |
8 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
