RA61L-BLPSSW (1981)
Toyota Celica
(8108-8208)RA63 ; (8108-8208)RA61..EUG ; (8108-8208)RA63 ; (8108-8208)RA61..EUG ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

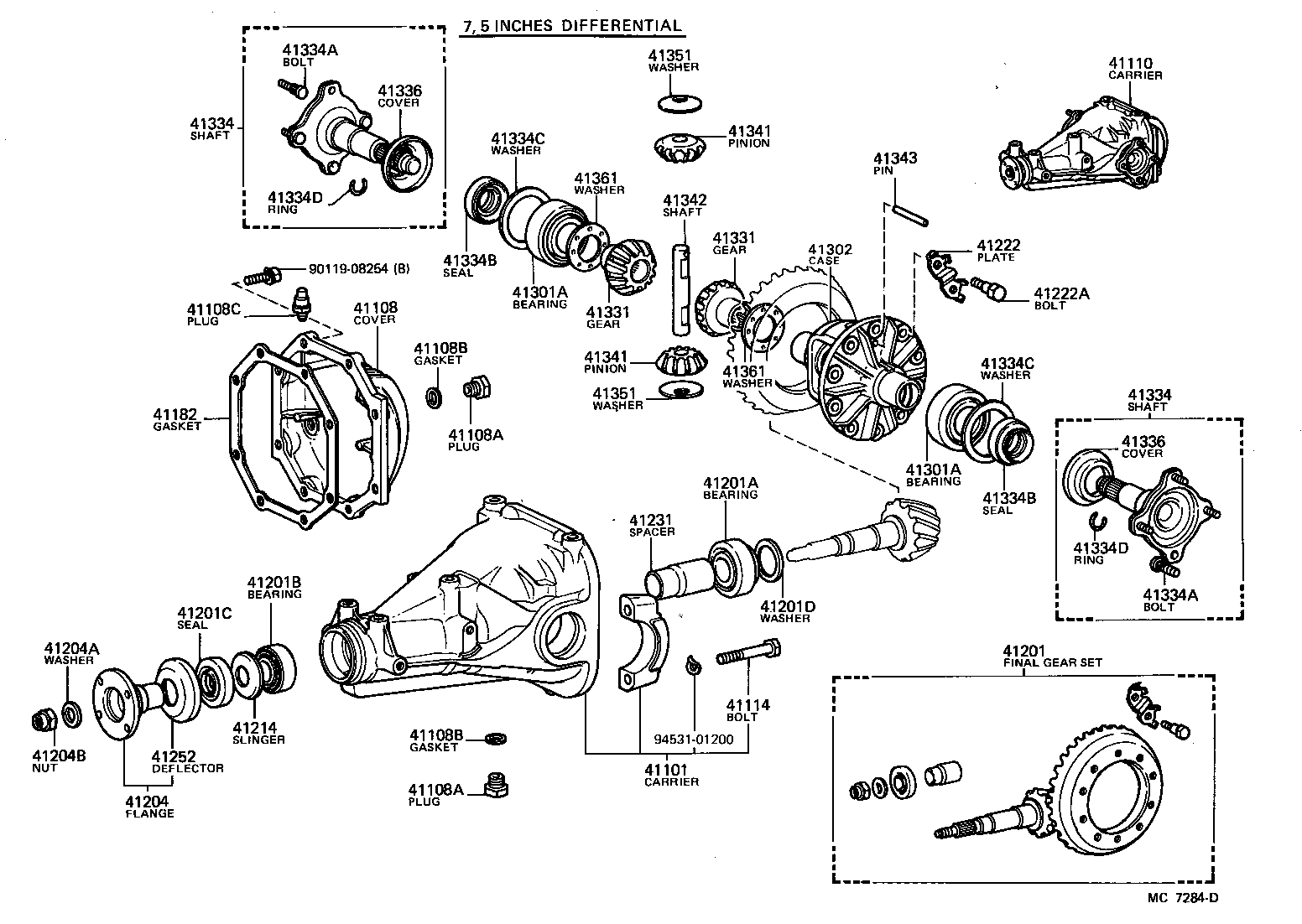

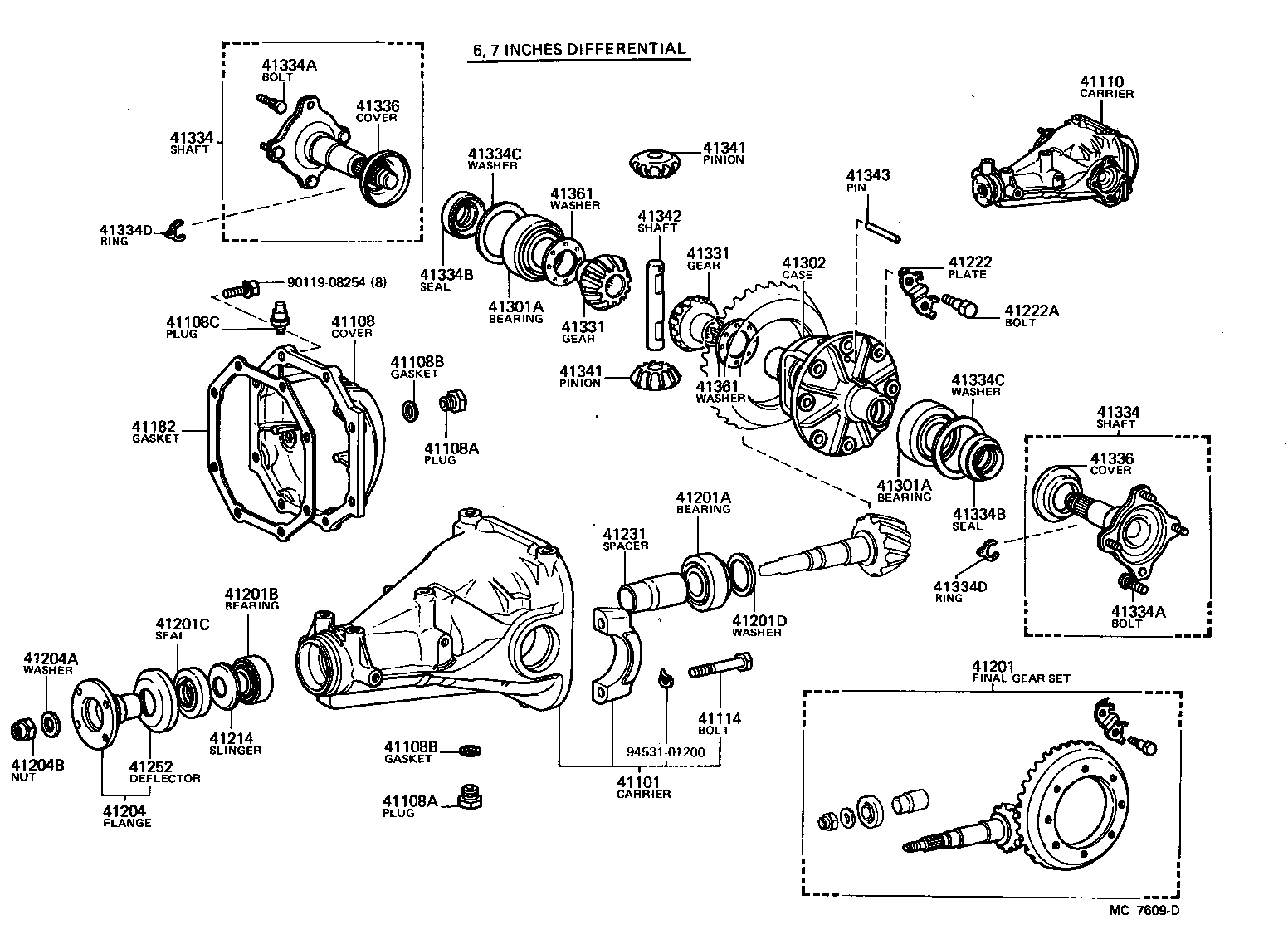

| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22020 |
MA61,RA63;RA61..EUG |
1 | ||
| 41101-22020 |
MA61,RA63;RA61..EUG |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41181-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 90930-03031 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-22131 |
RA63;RA61..EUG *FGR=43:11=3.909,R=43:11=3.909 |
1 | ||
| 41110-22131 |
RA63;RA61..EUG *FGR=43:11=3.909,R=43:11=3.909 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
MA61,RA63;AA63,RA61..EUR |
4 | ||
| 90101-12376 |
MA61,RA63;AA63,RA61..EUR |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41182-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39168 |
RA63;RA61..EUG *FGR=43:11=3.909,N=43:11 |
1 | ||
| 41201-39168 |
RA63;RA61..EUG *FGR=43:11=3.909,N=43:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 90366-35023 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 90366-30022 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38010 |
MA61,RA63;RA61..EUG |
1 | ||
| 90311-38010 |
MA61,RA63;RA61..EUG |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
AA63,MA61,RA6#,SA63,TA60 T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35396 |
AA63,MA61,RA6#,SA63,TA60 T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35398 |
AA63,MA61,RA6#,SA63,TA60 T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35398 |
AA63,MA61,RA6#,SA63,TA60 T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35399 |
AA63,MA61,RA6#,SA63,TA60 T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35399 |
AA63,MA61,RA6#,SA63,TA60 T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35403 |
AA63,MA61,RA6#,SA63,TA60 T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35403 |
AA63,MA61,RA6#,SA63,TA60 T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35434 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35434 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AA63,MA61,RA6#,SA63,TA60 T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 90201-35404 |
AA63,MA61,RA6#,SA63,TA60 T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 90201-35437 |
AA63,MA61,RA6#,SA63,TA60 T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35437 |
AA63,MA61,RA6#,SA63,TA60 T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35397 |
AA63,MA61,RA6#,SA63,TA60 T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35397 |
AA63,MA61,RA6#,SA63,TA60 T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35436 |
AA63,MA61,RA6#,SA63,TA60 T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35436 |
AA63,MA61,RA6#,SA63,TA60 T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35439 |
AA63,MA61,RA6#,SA63,TA60 T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35439 |
AA63,MA61,RA6#,SA63,TA60 T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35401 |
AA63,MA61,RA6#,SA63,TA60 T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35401 |
AA63,MA61,RA6#,SA63,TA60 T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35435 |
AA63,MA61,RA6#,SA63,TA60 T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35435 |
AA63,MA61,RA6#,SA63,TA60 T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35441 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35441 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35402 |
AA63,MA61,RA6#,SA63,TA60 T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35402 |
AA63,MA61,RA6#,SA63,TA60 T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35438 |
AA63,MA61,RA6#,SA63,TA60 T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35438 |
AA63,MA61,RA6#,SA63,TA60 T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35400 |
AA63,MA61,RA6#,SA63,TA60 T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35400 |
AA63,MA61,RA6#,SA63,TA60 T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35440 |
AA63,MA61,RA6#,SA63,TA60 T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 90201-35440 |
AA63,MA61,RA6#,SA63,TA60 T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41204-20030 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 90201-18485 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 90179-18001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41214-30021 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30040 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
5 | ||
| 41222-30040 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AA63,MA61,RA6#,SA63,TA60 |
10 | ||
| 90101-11353 |
AA63,MA61,RA6#,SA63,TA60 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41231-22010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41252-30010 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22050 |
RA63;RA61..EUG |
1 | ||
| 41311-22050 |
RA63;RA61..EUG |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41342-22020 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 90250-06058 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RA63;RA61..EUG |
2 | ||
| 41351-30060 |
RA63;RA61..EUG |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RA63;RA61..EUG |
2 | ||
| 41351-30060 |
RA63;RA61..EUG |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
(8108-8208)RA61 ; (8108-8208)RA61 ; (8308-8507)AA63,RA61,SA63..ARL,GEN,SAA ; (8308-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22020 |
MA61,RA63;RA61..EUG |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18057 |
AA63,MA61,RA61,63,65,SA63 DRAIN |
1 | ||
| 90341-18049 |
AA63,MA61,RA61,63,SA63 FILLER |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AA63,MA61,RA61,63,65,SA63 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AA63,MA61,RA61,63,65,SA63 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-22131 |
RA63;RA61..EUG *FGR=43:11=3.909,R=43:11=3.909 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
MA61,RA63;AA63,RA61..EUR |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-22011 |
MA61,RA63;RA61..EUG |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39168 |
RA63;RA61..EUG *FGR=43:11=3.909,N=43:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38010 |
MA61,RA63;RA61..EUG |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
AA63,MA61,RA6#,SA63,TA60 T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35398 |
AA63,MA61,RA6#,SA63,TA60 T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35399 |
AA63,MA61,RA6#,SA63,TA60 T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35403 |
AA63,MA61,RA6#,SA63,TA60 T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35434 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.24,MARK 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AA63,MA61,RA6#,SA63,TA60 T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 90201-35437 |
AA63,MA61,RA6#,SA63,TA60 T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35397 |
AA63,MA61,RA6#,SA63,TA60 T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35436 |
AA63,MA61,RA6#,SA63,TA60 T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35439 |
AA63,MA61,RA6#,SA63,TA60 T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35401 |
AA63,MA61,RA6#,SA63,TA60 T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35435 |
AA63,MA61,RA6#,SA63,TA60 T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35441 |
MA61,RA63;AA63,RA61,65..ARL,EUR T=2.72,MARK 17,T=2.71-2.73 |
1 | ||
| 90201-35402 |
AA63,MA61,RA6#,SA63,TA60 T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 90201-35438 |
AA63,MA61,RA6#,SA63,TA60 T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35400 |
AA63,MA61,RA6#,SA63,TA60 T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35440 |
AA63,MA61,RA6#,SA63,TA60 T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30040 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AA63,MA61,RA6#,SA63,TA60 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
MA61,RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
MA61,RA63;RA61..EUG |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22050 |
RA63;RA61..EUG |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RA63;RA61..EUG |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-22012 |
RA63;RA61..EUG |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AA63,MA61,RA6#,SA63 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AA63,MA61,RA6#,SA63 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65008 |
MA61,RA63;RA61..EUG T=2.61,T=2.60-2.62 |
2 | ||
| 90201-65007 |
MA61,RA63;RA61..EUG T=2.58,T=2.57-2.59 |
2 | ||
| 90201-65011 |
MA61,RA63;RA61..EUG T=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
MA61,RA63;RA61..EUG T=2.64,T=2.63-2.65 |
2 | ||
| 90201-65010 |
MA61,RA63;RA61..EUG T=2.67,T=2.66-2.68 |
2 | ||
| 90201-65013 |
MA61,RA63;RA61..EUG T=2.76,T=2.75-2.77 |
2 | ||
| 90201-65014 |
MA61,RA63;RA61..EUG T=2.79,T=2.78-2.80 |
2 | ||
| 90201-65016 |
MA61,RA63;RA61..EUG T=2.85,T=2.84-2.86 |
2 | ||
| 90201-65020 |
MA61,RA63;RA61..EUG T=2.97,T=2.96-2.98 |
2 | ||
| 90201-65021 |
MA61,RA63;RA61..EUG T=3.00,T=2.99-3.01 |
2 | ||
| 90201-65026 |
MA61,RA63;RA61..EUG T=3.15,T=3.14-3.16 |
2 | ||
| 90201-65028 |
MA61,RA63;RA61..EUG T=3.21,T=3.20-3.22 |
2 | ||
| 90201-65019 |
MA61,RA63;RA61..EUG T=2.94,T=2.93-2.95 |
2 | ||
| 90201-65023 |
MA61,RA63;RA61..EUG T=3.06,T=3.05-3.07 |
2 | ||
| 90201-65022 |
MA61,RA63;RA61..EUG T=3.03,T=3.02-3.04 |
2 | ||
| 90201-65027 |
MA61,RA63;RA61..EUG T=3.18,T=3.17-3.19 |
2 | ||
| 90201-65018 |
MA61,RA63;RA61..EUG T=2.91,T=2.90-2.92 |
2 | ||
| 90201-65025 |
MA61,RA63;RA61..EUG T=3.12,T=3.11-3.13 |
2 | ||
| 90201-65015 |
MA61,RA63;RA61..EUG T=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
MA61,RA63;RA61..EUG T=2.73,T=2.72-2.74 |
2 | ||
| 90201-65017 |
MA61,RA63;RA61..EUG T=2.88,T=2.87-2.89 |
2 | ||
| 90201-65024 |
MA61,RA63;RA61..EUG T=3.09,T=3.08-3.10 |
2 | ||
| 90201-65029 |
MA61,RA63;RA61..EUG T=3.24,T=3.23-3.25 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
MA61,RA63;RA61..EUG T=2.5 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
MA61,RA63;RA61..EUG |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RA63;AA63,RA61,65..ARL,EUR |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
RA63;AA63,RA61,65..ARL,EUR |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30070 |
RA63;AA63,RA61,65..ARL,EUR T=1.3,T=1.26-1.34 |
2 | ||
| 41361-30040 |
RA63;AA63,RA61,65..ARL,EUR T=1.0,T=0.96-1.04 |
2 | ||
| 41361-30050 |
RA63;AA63,RA61,65..ARL,EUR T=1.1,T=1.06-1.14 |
2 | ||
| 41361-30060 |
RA63;AA63,RA61,65..ARL,EUR T=1.2,T=1.16-1.24 |
2 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
