RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )ATM

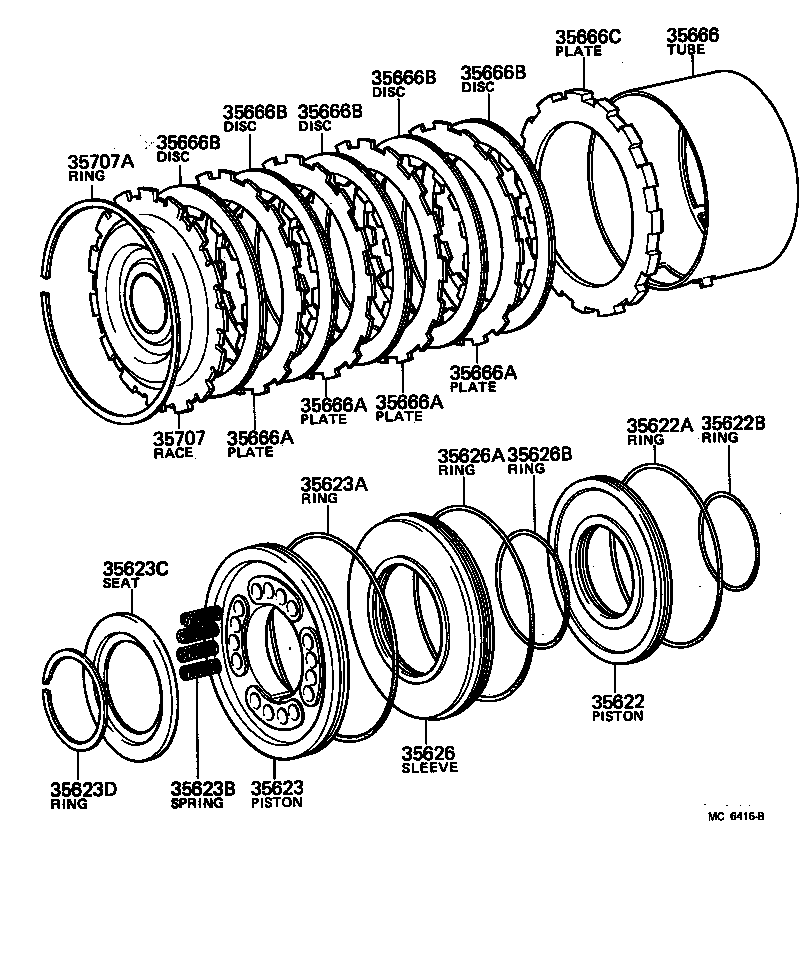

Click highlighted areas on diagram

diagram 35622 35622A 35622B 35623 35623A 35623B 35623C 35623D 35626 35626A 35626B 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35622 - PISTON, BRAKE, NO.2
35622-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

MA61,RA60,61,65,SA63,TA60..ATM

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

MA61,RA60,61,65,SA63,TA60..ATM

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99192

MA61,RA60,61,65,SA63,TA60..ATM

 1
35623B - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

MA61,RA60,61,65,SA63,TA60..ATM

 16
35623C - SEAT, BRAKE RETURN SPRING
35627-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

MA61,RA60,61,65,SA63,TA60..ATM

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

MA61,RA60,61,65,SA63,TA60..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

MA61,RA60,61,65,SA63,TA60..ATM

 1
35666 - TUBE, BRAKE APPLY
35666-22010

RA60,61,SA63,TA60..ATM

 1
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

RA60,61,TA60..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

RA60,61,TA60..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

RA60,61,TA60..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

RA60,61,TA60..ATM

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30020

RA60,61..4FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30020

RA60,61..4FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30020

RA60,61..4FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30020

RA60,61..4FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30020

RA60,61..4FC

 4
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30010

RA60,61,SA63,TA60..ATM

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

MA61,RA60,61,65,SA63,TA60..ATM

 1
