RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)RA60,61,65..4FC

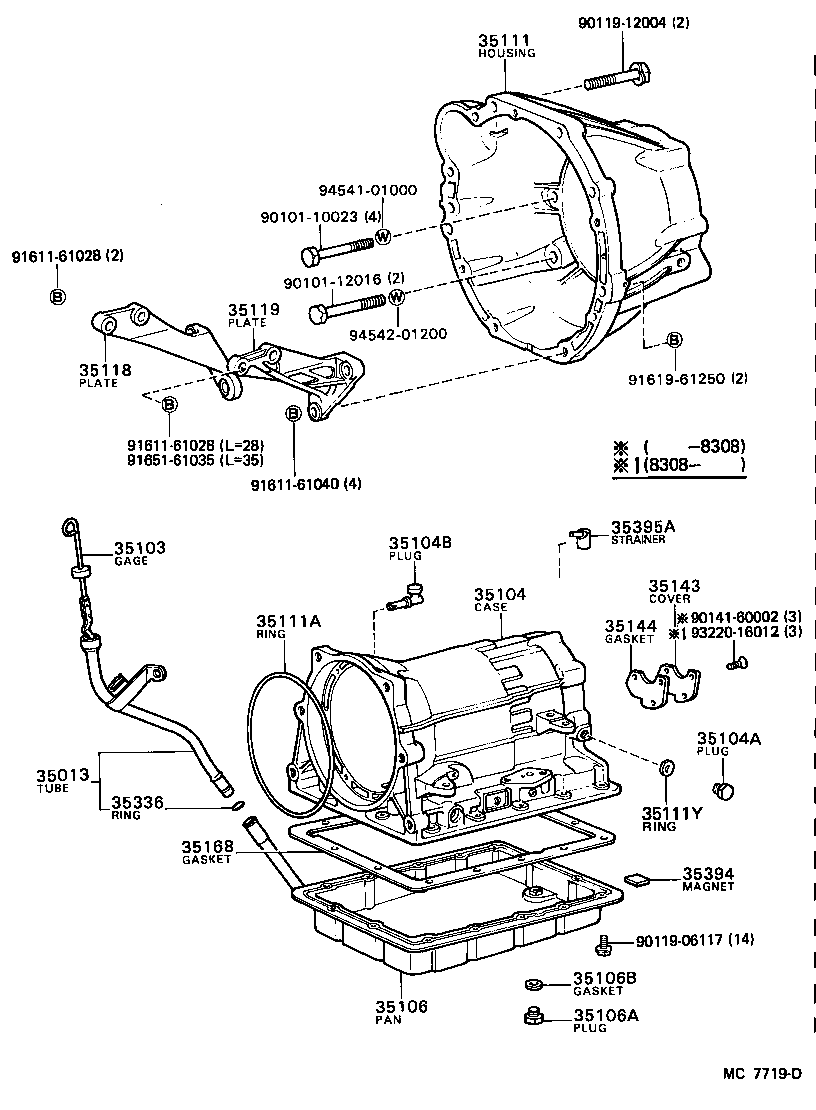

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-14091 |
RA60,61,65..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20080 |
RA60,61..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30082 |
RA60,61,65,SA63..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
MA61,RA60,61,65,SA63,TA60..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03069 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-22031 |
RA60,61,65..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10003 |
RA60,61,TA60..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-20070 |
RA60,61..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
MA61,RA60,61,65,SA63,TA60..ATM |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-22030 |
RA60,61,65..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-22021 |
RA60,61,65..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
MA61,RA60,61,65,SA63,TA60..ATM |
2 | ||
| Common parts | ||||
| 90101-10023 | ||||
| 90101-12016 | ||||
| 90119-06117 | ||||
| 90119-12004 | ||||
| 90141-60002 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91619-61250 | ||||
| 91651-61035 | ||||
| 93220-16012 | ||||
| 94541-01000 | ||||
| 94542-01200 | ||||
