RA61L-BLPSSW (1981)
Toyota Celica
(8108-8308)ATM ; (8308-8507)RA6#,SA63..RHD..4FC; (8308- )MA61..RHD..4FC..ARL,GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
RA60,61,TA60..ATM |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
RA60,61,TA60..ATM |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
MA61,RA60,61,65,SA63,TA60..ATM OD=8.8 |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
RA60,61,TA60..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403001 |
RA60,61,TA60..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 33542-2403006 |
RA60,61,TA60..ATM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33542-2403004 |
RA60,61,TA60..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-14120 |
RA60,61,TA60..LHD..ATM |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1425004 |
RA60,61..LHD..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1425001 |
RA60,61..LHD..4FC BLACK,BLACK,TRIM2# |
1 | ||
| 33550-1425006 |
RA60,61..LHD..4FC DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
RA60,61,TA60..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004014 |
RA60,61,TA60..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004006 |
RA60,61,TA60..ATM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 33623-22060 |
RA60,61,TA60..ATM BLACK |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
RA60,61,TA60..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20060 |
RA60,61,TA60..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
RA60,61,TA60..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-14080 |
RA60,61,65..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-14090 |
RA60,61..LHD..4FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-1409004 |
RA60,61,TA60..LHD..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 35971-1409001 |
RA60,61,TA60..LHD..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 35971-1409006 |
RA60,61,TA60..LHD..ATM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-1401004 |
MA61,RA60,61,65,SA63,TA60..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 35972-1401001 |
MA61,RA60,61,65,SA63,TA60..ATM BLACK,BLACK,TRIM2# |
1 | ||
| 35972-1401006 |
MA61,RA60,61,65,SA63,TA60..ATM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14090 |
RA60,61,TA60..LHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14051 |
RA60,61,TA60..ATM |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

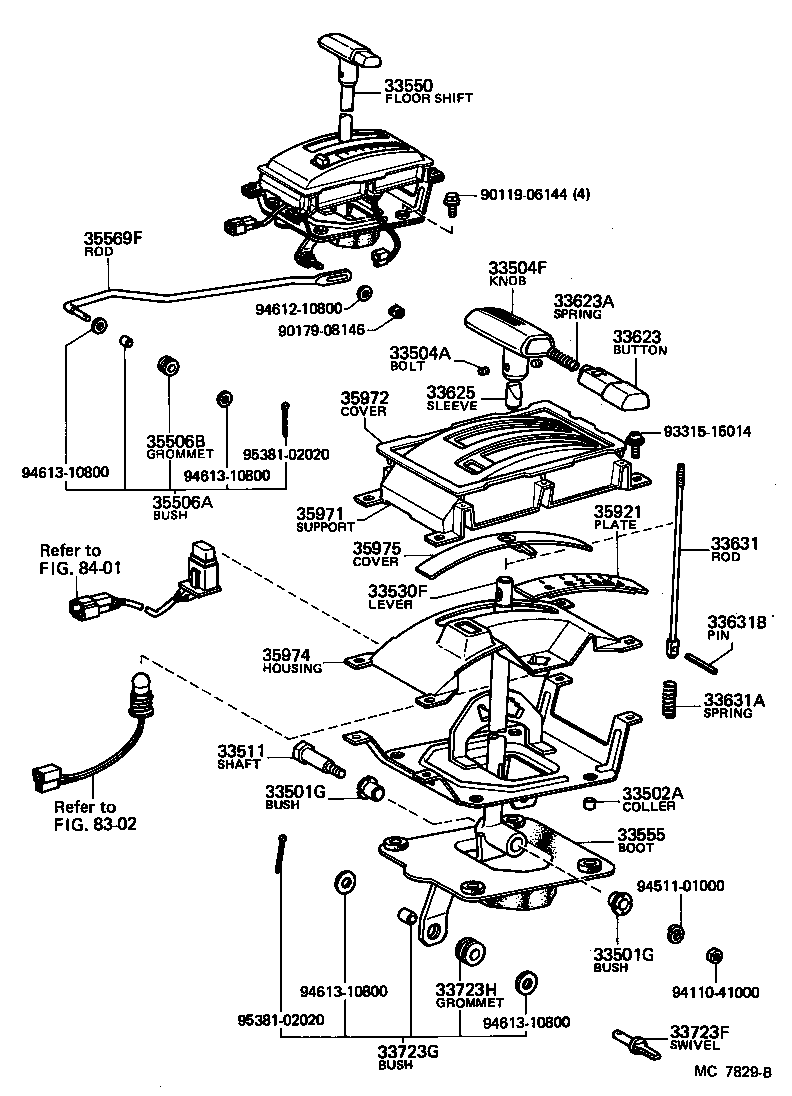

| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
