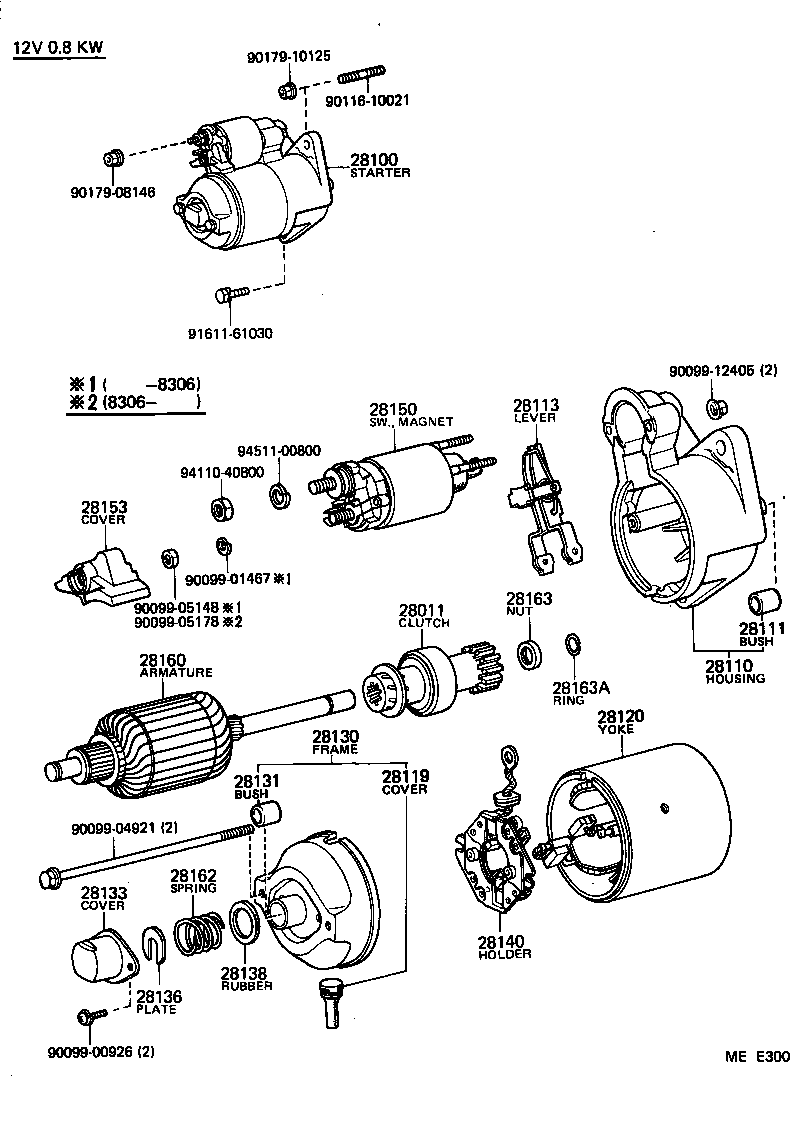

RA61L-BLPSSW (1981)
Toyota Celica
(8108-8507)21R#,22REC,18RG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28011-26042 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-34080 |
18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN) 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-37010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-34080 |
18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN) 12V 1.0KW |
1 | ||
| 28110-37010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-15010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37010 |
21R..RA61;21R#,18RG,2T#..RA60,63,TA60 12V 0.8KW |
1 | ||
| 28130-34060 |
21R#,22REC,18RG..RA6#..ARL,EUR,GEN 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28140-26070 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
21R..RA61;21R#,18RG,2T#..RA60,63,TA60 12V 0.8KW |
1 | ||
| 28150-34080 |
21RC,18RG..RA61,63;21R..RA60,61..LHD..(EUR,GEN) 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW |
1 | ||
| 28160-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,NO.2 |
1 | ||
| 28253-45020 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60..EUR,GEN,SAA 12V 1.0KW,1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,NO.2 |
1 | ||
| 28253-45020 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60..EUR,GEN,SAA 12V 1.0KW,1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8108-8507)21R#,18RG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28011-26042 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-34080 |
18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN) 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-37010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-34080 |
18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN) 12V 1.0KW |
1 | ||
| 28110-37010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-15010 |
21R..RA61;21R#,18RG..RA60,63 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37010 |
21R..RA61;21R#,18RG,2T#..RA60,63,TA60 12V 0.8KW |
1 | ||
| 28130-34060 |
21R#,22REC,18RG..RA6#..ARL,EUR,GEN 12V 1.0KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28140-26070 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
21R..RA61;21R#,18RG,2T#..RA60,63,TA60 12V 0.8KW |
1 | ||
| 28150-34080 |
21RC,18RG..RA61,63;21R..RA60,61..LHD..(EUR,GEN) 12V 1.0KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
21R..RA61;21R#,18RG,2T#..RA60,63,TA60 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA 12V 1.0KW |
1 | ||
| 28160-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60 12V 0.8KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04921 | ||||
| 90099-05148 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
