RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8202)21R..RA60..RHD ; (8108-8208)21R..RA61; (8108-8208)21RC..RA60 ; (8208-84

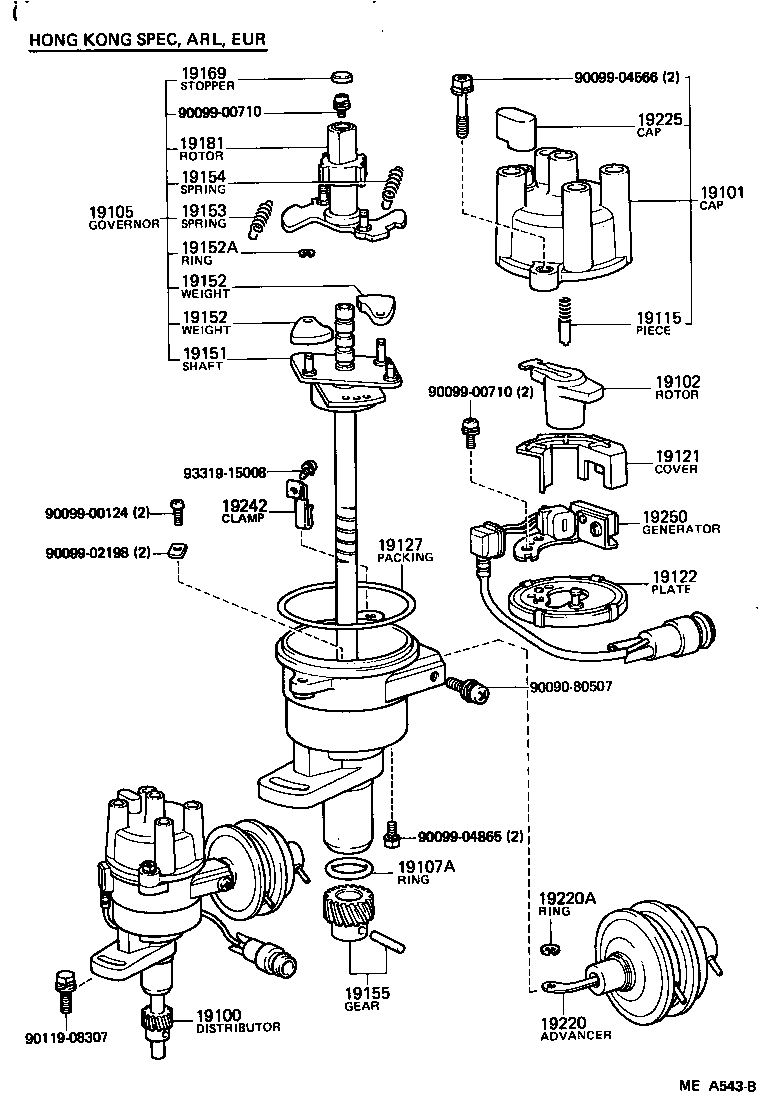

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-37110 |
21R..RA61 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38150 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-26150 |
21R#,18RG..RA61,63 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-37110 |
21R..RA61 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
21R#,22REC,18RG..RA6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
21R#,22REC,18RG..RA6# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38210 |
21R..RA61;21RC..RA60 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88262 |
21R..RA61;21RC..RA60 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-38150 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-37080 |
21R#..RA60,61 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
21R#..RA60,61 NO.1 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
21R#..RA60,61 NO.1 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
21R#,18RG..RA6# |
4 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-37110 |
21R..RA61 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-37110 |
21R..RA61 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-38210 |
21R#..RA60,61 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
21R#,18RG..RA6# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-24160 |
21R..RA61 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-37030 |
21R#..RA61..EUR |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
21R#,18RG..RA6# |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
21R#..RA60,61 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-37080 |
21R..RA61;21RC..RA60 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-37110 |
21R..RA61 |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90119-08307 | ||||
| 93319-15008 | ||||
