RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)21R#

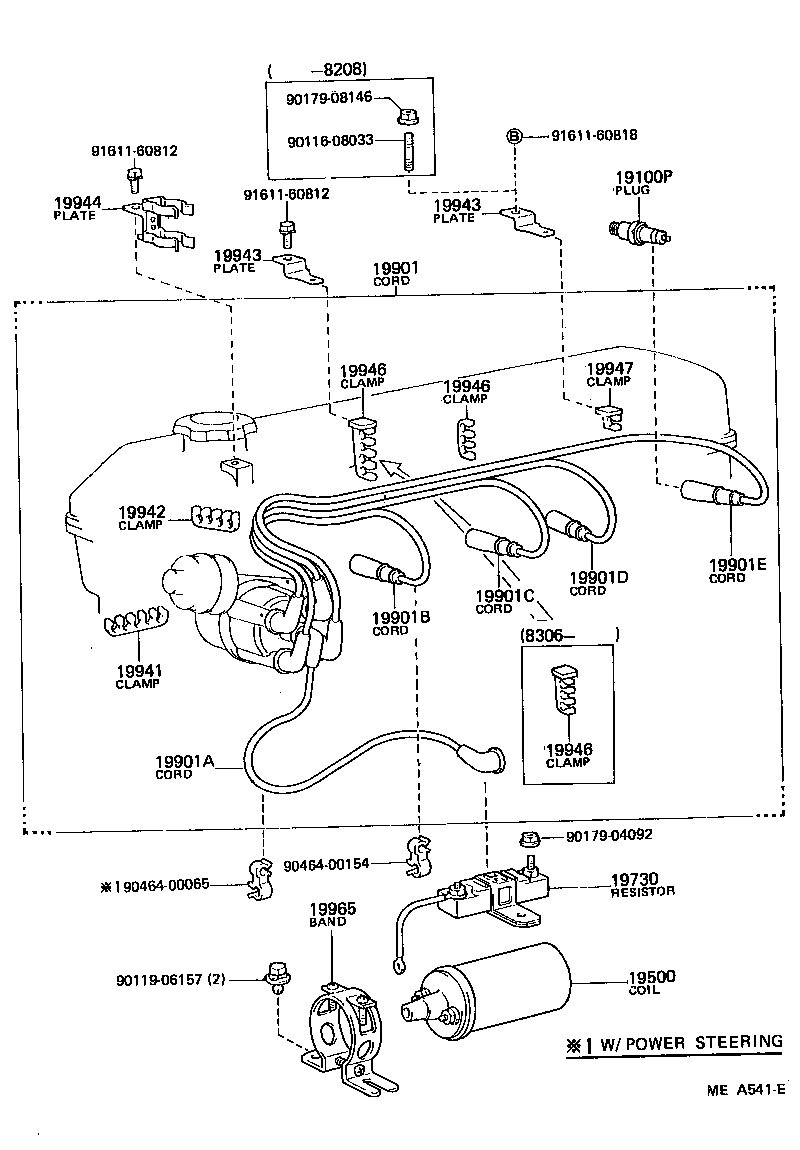

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01084 |
21R#,18RG..RA6#..EUR,GEN,ME,SAA W20EXR-U,W20EXR-U |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02083 |
21R..RA61..EUG |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04030 |
21R..RA61 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21298 |
21R#..RA60,61 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13192 |
21R#..RA60,61 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12230 |
21R#..RA60,61 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12231 |
21R#..RA60,61 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12232 |
21R#..RA60,61 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12233 |
21R#..RA60,61 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00214 |
21R#,22REC..RA60,61,65 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00061 |
21R#,22REC..RA60,61,65 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38011 |
21R#..RA60,61 |
2 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38011 |
21R#..RA60,61 |
2 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-35010 |
21R#,22REC..RA60,61,65..ARL,EUR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00060 |
21R#..RA60,61 FR |
1 | ||
| 90464-00144 |
21R#..RA60,61 RR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00060 |
21R#..RA60,61 FR |
1 | ||
| 90464-00144 |
21R#..RA60,61 RR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00060 |
21R#..RA60,61 FR |
1 | ||
| 90464-00144 |
21R#..RA60,61 RR |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00059 |
21R#,22REC..RA60,61,65 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03077 |
21R#..RA61..EUR |
1 | ||
| Common parts | ||||
| 90116-08033 | ||||
| 90119-06157 | ||||
| 90179-04092 | ||||
| 90179-08146 | ||||
| 90464-00065 | ||||
| 90464-00154 | ||||
| 91611-60812 | ||||
| 91611-60818 | ||||
