RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21R#,22REC

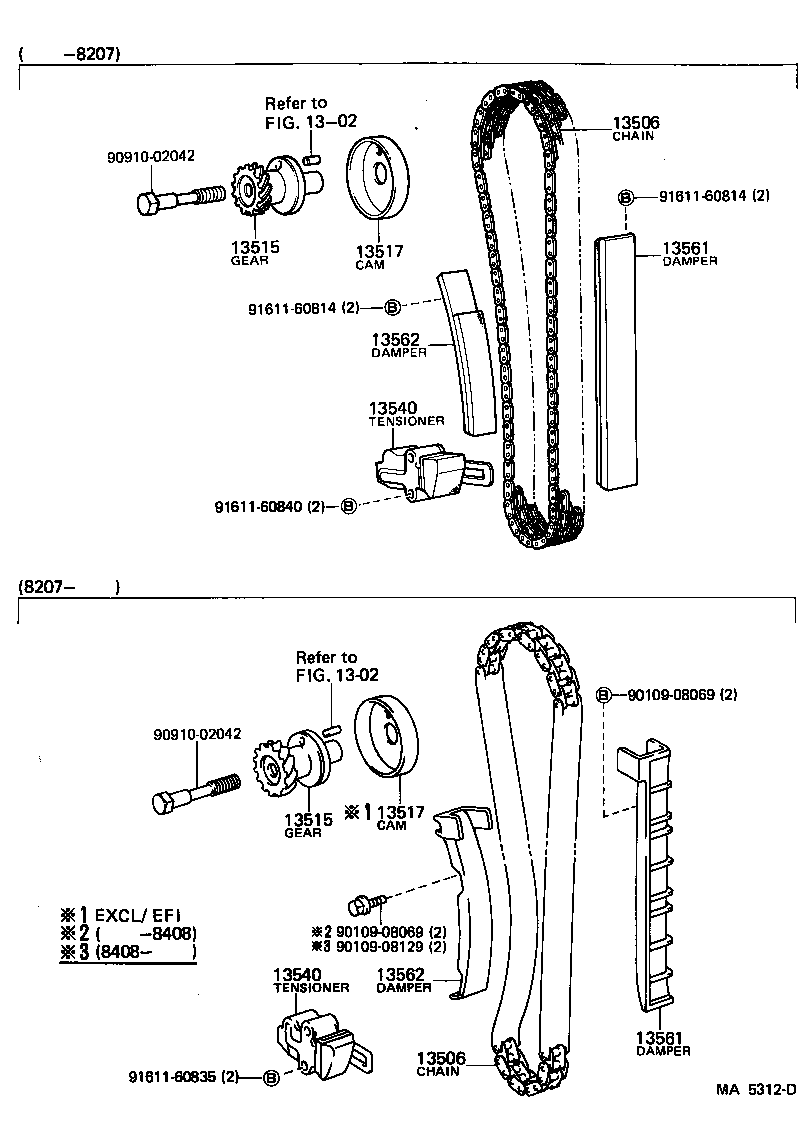

Click highlighted areas on diagram

diagram 1302 1302 13506 13506 13515 13515 13517 13517 13540 13540 13561 13561 13562 13562 9010908069 9010908069 9010908129 9091002042 9091002042 9161160814 9161160814 9161160835 9161160840
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-38010

21R#..RA60,61

 1
13506 - CHAIN SUB-ASSY
13506-38010

21R#..RA60,61

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-37010

21R#,22REC..RA60,61,65

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-37010

21R#,22REC..RA60,61,65

 1
13517 - CAM, FUEL PUMP DRIVE
13517-37010

21R#..RA60,61

 1
13517 - CAM, FUEL PUMP DRIVE
13517-37010

21R#..RA60,61

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-38012

21R#..RA60,61

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-38012

21R#..RA60,61

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-38010

21R#..RA60,61

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-38010

21R#..RA60,61

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-38010

21R#..RA60,61

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-38010

21R#..RA60,61

 1
Common parts
90109-08069
90109-08129
90910-02042
91611-60814
91611-60835
91611-60840
Linked diagrams
1302
