RA61L-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

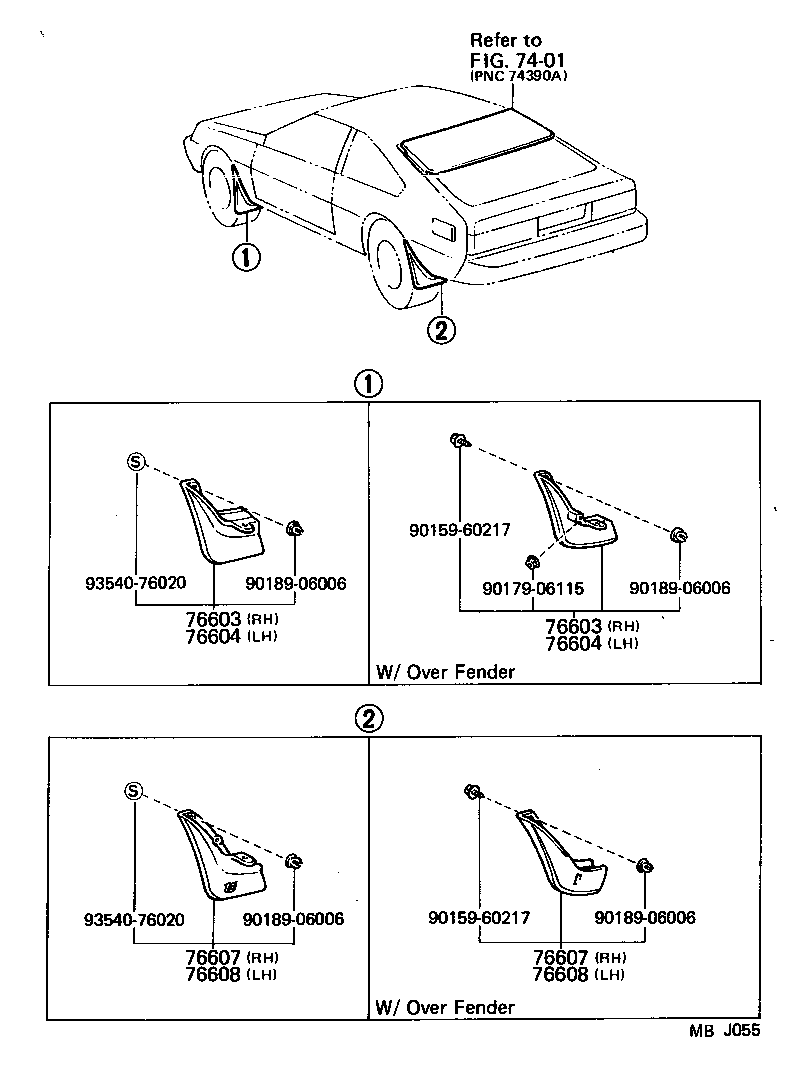

Click highlighted areas on diagram

diagram 7401 76603 76603 76604 76604 76607 76607 76608 76608 9015960217 9015960217 9017906115 9018906006 9018906006 9018906006 9018906006 9354076020 9354076020
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19065

AA63,RA6#,SA63,TA60

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19065

AA63,RA6#,SA63,TA60

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19065

AA63,RA6#,SA63,TA60

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19065

AA63,RA6#,SA63,TA60

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19125

AA63,MA61,RA6#,SA63,TA60

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19125

AA63,MA61,RA6#,SA63,TA60

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19125

AA63,MA61,RA6#,SA63,TA60

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19125

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90159-60217
90179-06115
90189-06006
93540-76020
Linked diagrams
7401
