RA61L-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

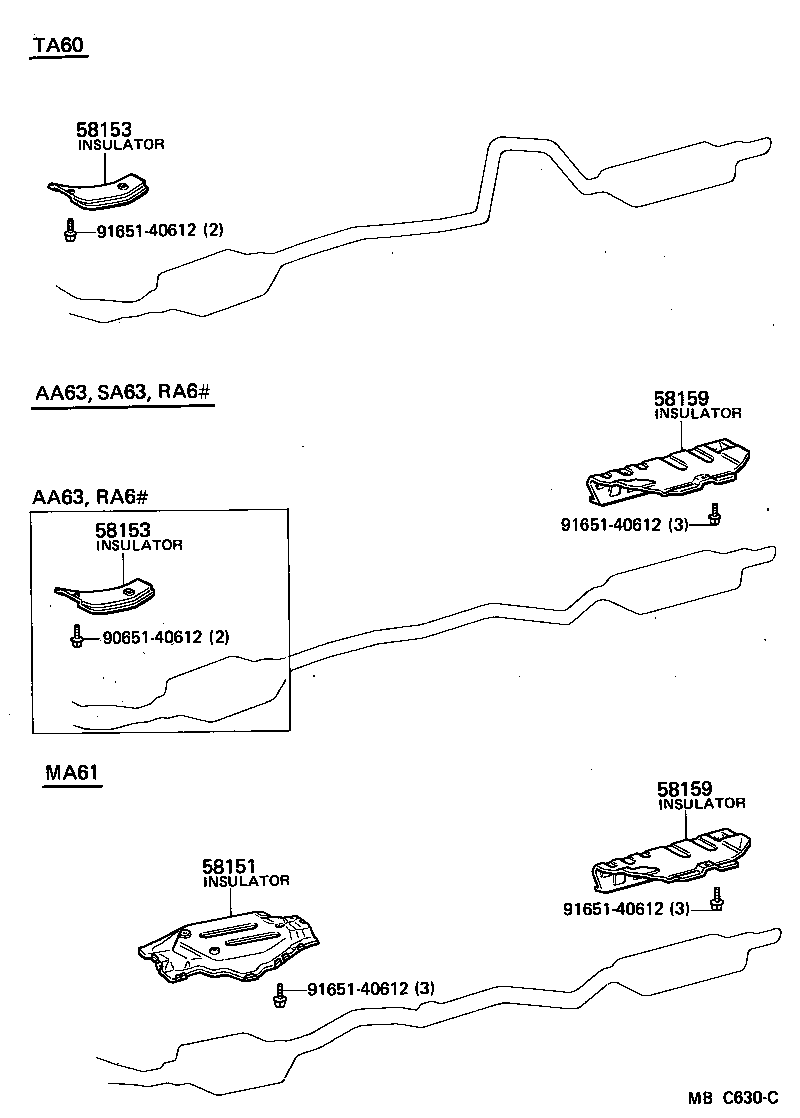

Click highlighted areas on diagram

diagram 58151 58153 58153 58159 58159 9065140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-14040

AA63,RA6#,TA60

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-14040

AA63,RA6#,TA60

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

AA63,MA61,RA6#,SA63

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

AA63,MA61,RA6#,SA63

 1
Common parts
90651-40612
91651-40612
