RA60R-BLMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)21R..RHD

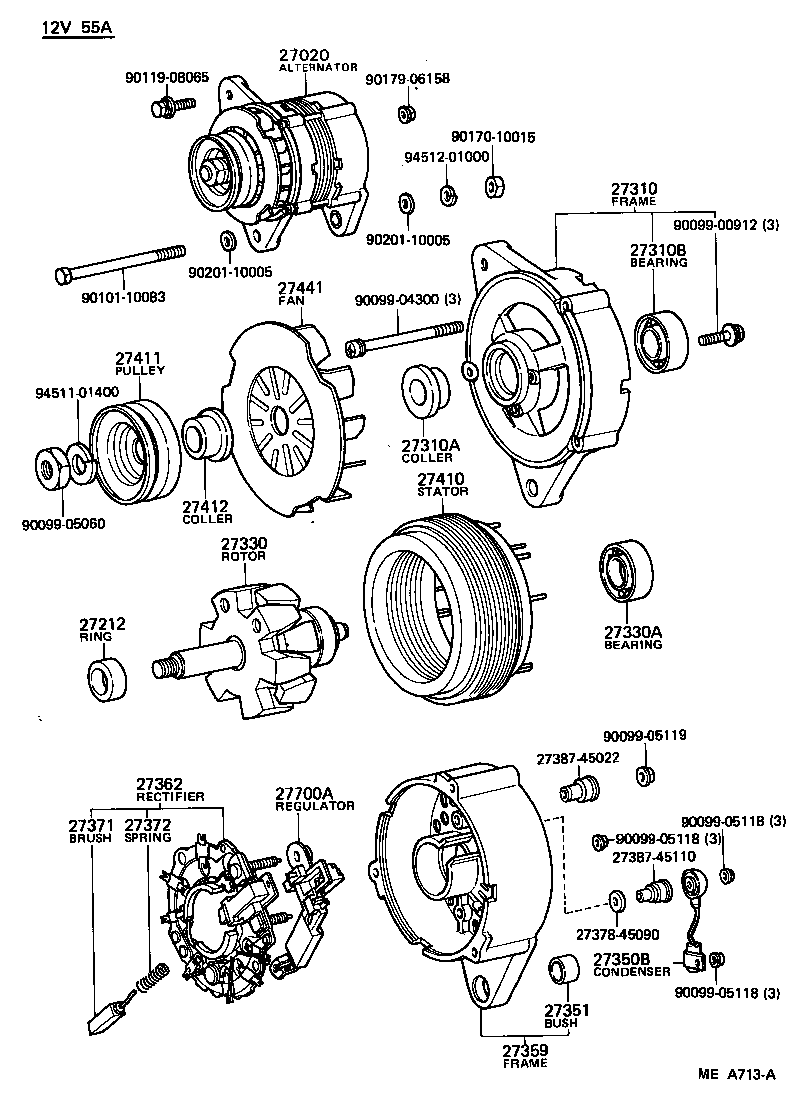

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110083 9011908065 9017010015 9017906158 9020110005 9020110005 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35040

21R..RA60,61..RHD

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

21R..RA60,61..RHD

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-15070

21R..RA60,61..RHD

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-28030

21R..RA60,61..RHD

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15070

21R..RA60,61..RHD

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

21R..RA61;21R#,2T#..RA60,TA60

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

21R#,2T#..RA60,61,TA60

12V 50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44031

21R..RA60,61..RHD

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-70040

21R..RA60,61..RHD

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

5MGE..MA61;21R..RA60,61..RHD

12V 55A,65A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-08065
90170-10015
90179-06158
90201-10005
94511-01400
94512-01000
