RA60R-BCPSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,61,65,SA63..4FC

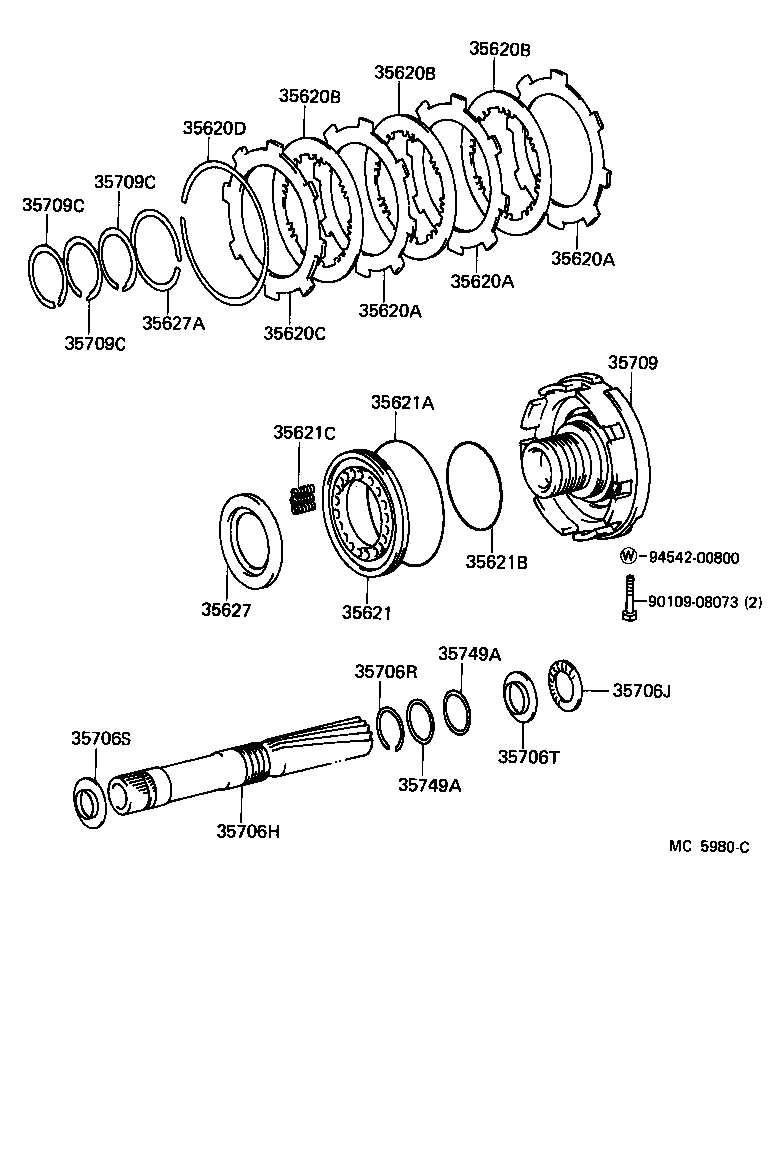

Click highlighted areas on diagram

diagram 35620A 35620A 35620A 35620B 35620B 35620B 35620C 35620D 35621 35621A 35621B 35621C 35627 35627A 35706H 35706J 35706R 35706S 35706T 35709 35709C 35709C 35709C 35749A 35749A 9010908073 9454200800
Part # Description Qty Price
35620A - PLATE, CLUTCH (FOR BRAKE)
35648-30010

RA60,61,65,SA63..4FC

T=2.0

 3
35634-22060

RA60,61,65,SA63..4FC

T=1.8

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35648-30010

RA60,61,65,SA63..4FC

T=2.0

 3
35634-22060

RA60,61,65,SA63..4FC

T=1.8

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35648-30010

RA60,61,65,SA63..4FC

T=2.0

 3
35634-22060

RA60,61,65,SA63..4FC

T=1.8

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

RA60,61..4FC

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

RA60,61..4FC

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22020

RA60,61..4FC

 3
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35620D - RING (FOR BRAKE)
90521-99139

MA61,RA60,61,65,SA63,TA60..ATM

 1
35621 - PISTON, BRAKE, NO.1
35621-30010

RA60,61,65,SA63..4FC

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99007

RA60,61,65,SA63..4FC

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-57188

MA61,RA60,61,65,SA63,TA60..ATM

 1
35621C - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

MA61,RA60,61,65,SA63,TA60..ATM

 16
35627 - SEAT, BRAKE RETURN SPRING
35627-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

MA61,RA60,61,65,SA63,TA60..ATM

 1
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-30030

RA60,61,65,SA63..4FC

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-23012

MA61,RA60,61,65,SA63,TA60..ATM

 1
35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
90520-34001

MA61,RA60,61,65,SA63..4FC

 1
35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35789-22030

MA61,RA60,61,65,SA63,TA60..ATM

 1
35706T - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35789-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-30021

RA60,61,SA63..4FC

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

MA61,RA60,61,65,SA63,TA60..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

MA61,RA60,61,65,SA63,TA60..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

MA61,RA60,61,65,SA63,TA60..ATM

 3
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-22010

RA60,61,65,SA63,TA60..ATM

 2
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-22010

RA60,61,65,SA63,TA60..ATM

 2
Common parts
90109-08073
94542-00800
