RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)TA60 ; (8108-8507)RA60..ARL

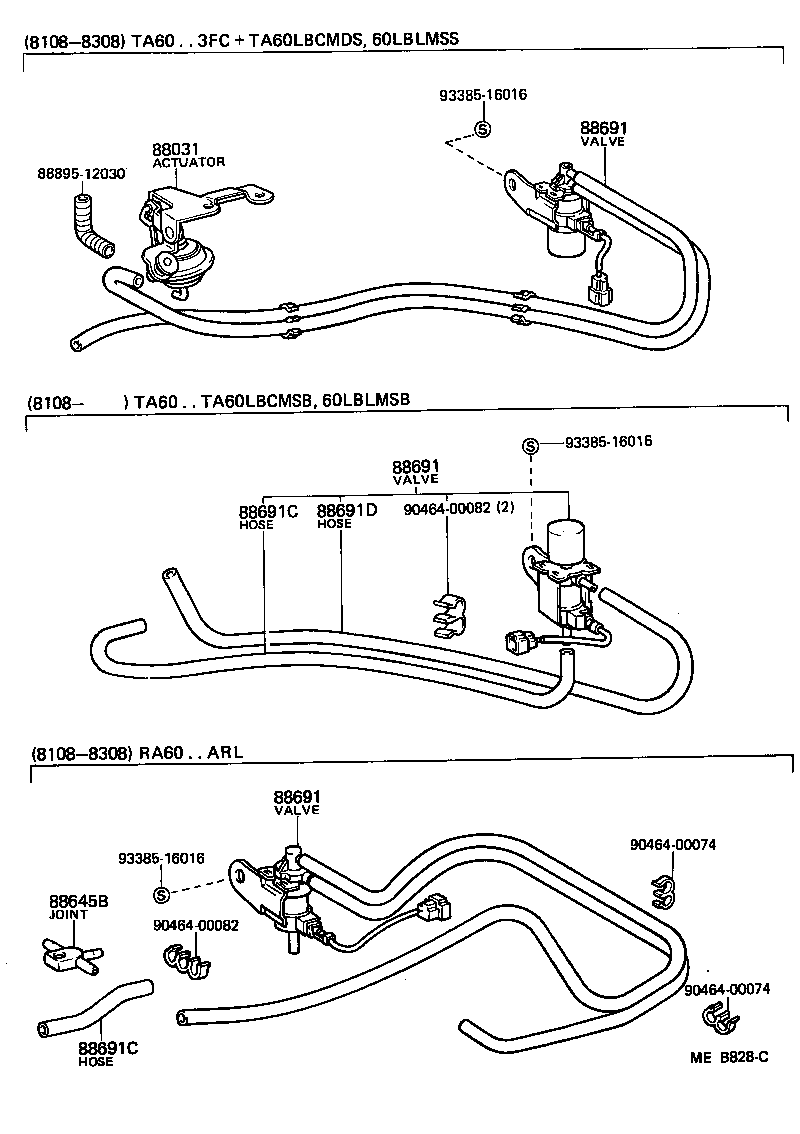

Click highlighted areas on diagram

diagram 88031 88645B 88691 88691 88691 88691C 88691C 88691D 8889512030 9046400074 9046400074 9046400082 9046400082 9338516016 9338516016 9338516016
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

RA60..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14700

RA60..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14700

RA60..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14700

RA60..ARL

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

RA60..ARL

*H,L=480,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

RA60..ARL

*H,L=480,MARK=#*

 1
Common parts
88895-12030
90464-00074
90464-00082
93385-16016

(8108-8507)RA61..RHD ; (8108-8507)RA60..GEN,ME ;(8108-8507)RA61..LHD..4FC ; (8108-

Click highlighted areas on diagram

diagram 88031 88645B 88645B 88691 88691 88691C 88691C 88691D 88691D 88691E 9046400074 9046400082 9338516016 9338516016
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

RA60..ARL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

RA60..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14700

RA60..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14700

RA60..ARL

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

RA60..ARL

*H,L=480,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

RA60..ARL

*H,L=480,MARK=#*

 1
Common parts
90464-00074
90464-00082
93385-16016
