RA60R-BCMSCQ (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)CP

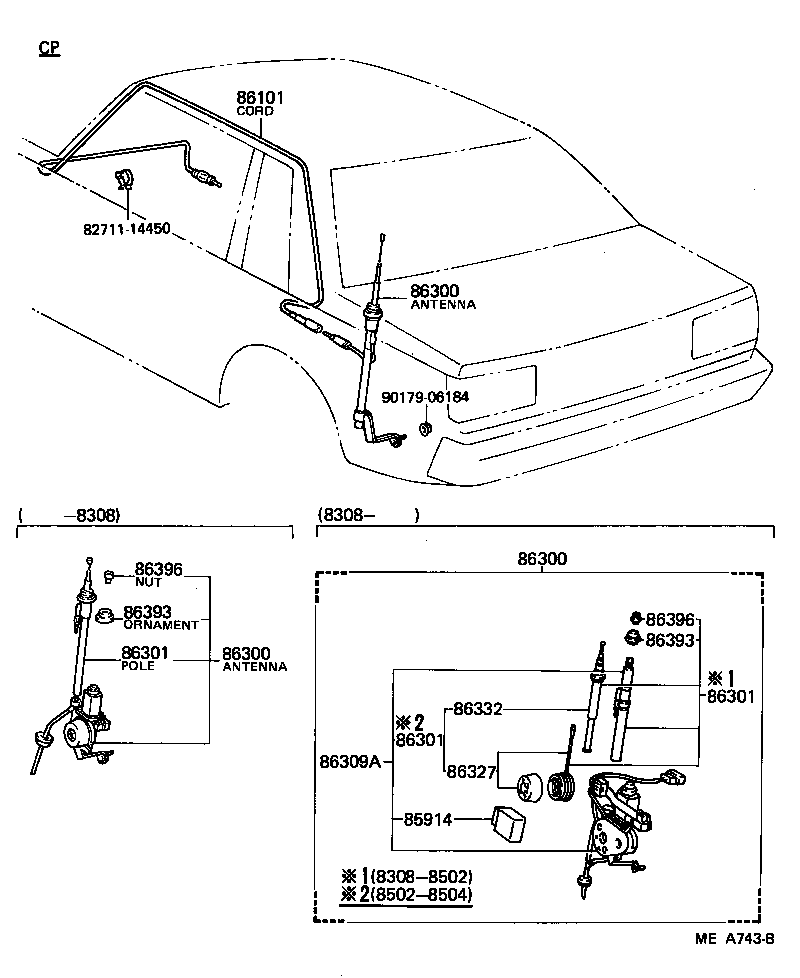

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-14280 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14250 |
RA6#,TA60..CP MOTOR |
1 | ||
| 86300-14280 |
AA63,RA6#,SA63,TA60..CP PULL TOP |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14250 |
RA6#,TA60..CP MOTOR |
1 | ||
| 86300-14280 |
AA63,RA6#,SA63,TA60..CP PULL TOP |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-14250 |
RA6#,TA60..CP MOTOR |
1 | ||
| 86300-14280 |
AA63,RA6#,SA63,TA60..CP PULL TOP |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86301-14251 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86301-14251 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86301-14251 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-14050 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-14050 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14040 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14040 |
AA63,RA6#,SA63,TA60..CP |
1 | ||
| Common parts | ||||
| 82711-14450 | ||||
| 90179-06184 | ||||
