RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

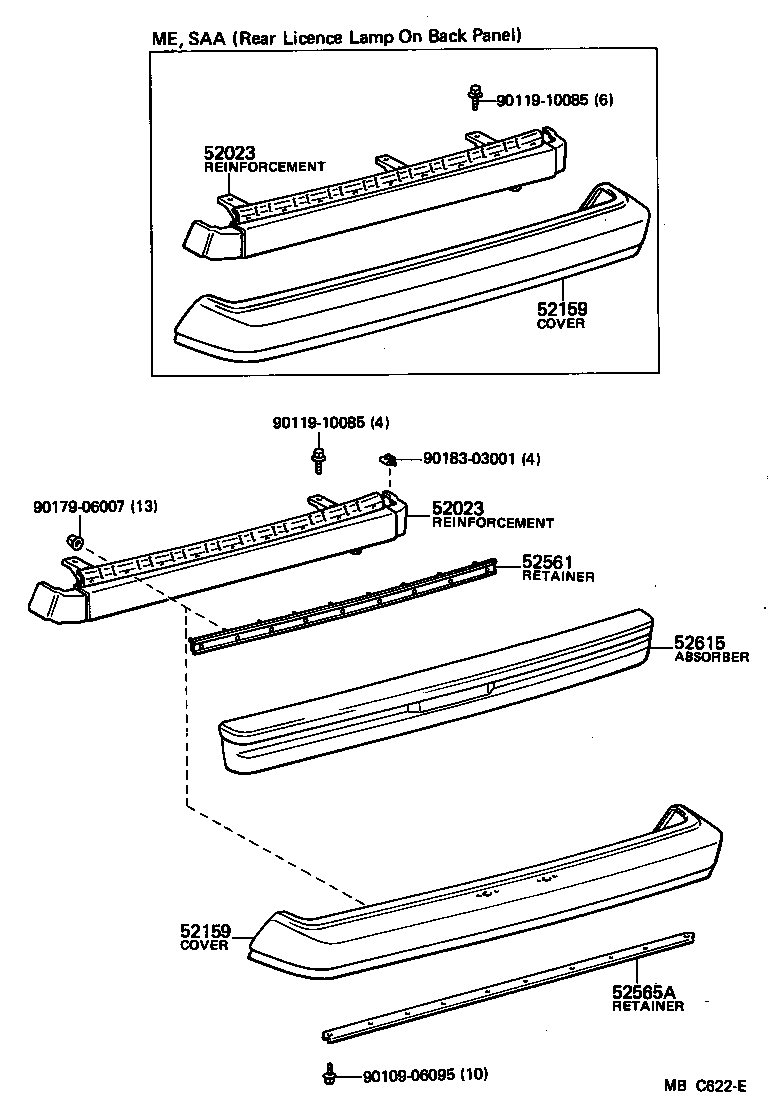

Click highlighted areas on diagram

diagram 52023 52023 52159 52159 52561 52565A 52615 9010906095 9011910085 9011910085 9017906007 9018303001
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14080

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14080

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
52159 - COVER, REAR BUMPER
52159-14140

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
52159 - COVER, REAR BUMPER
52159-14140

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52305-14050

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14060

AA63,RA6#,SA63,TA60..CP

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-14080

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
Common parts
90109-06095
90119-10085
90179-06007
90183-03001
