RA60R-BCMSCQ (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8308)RA60..RHD

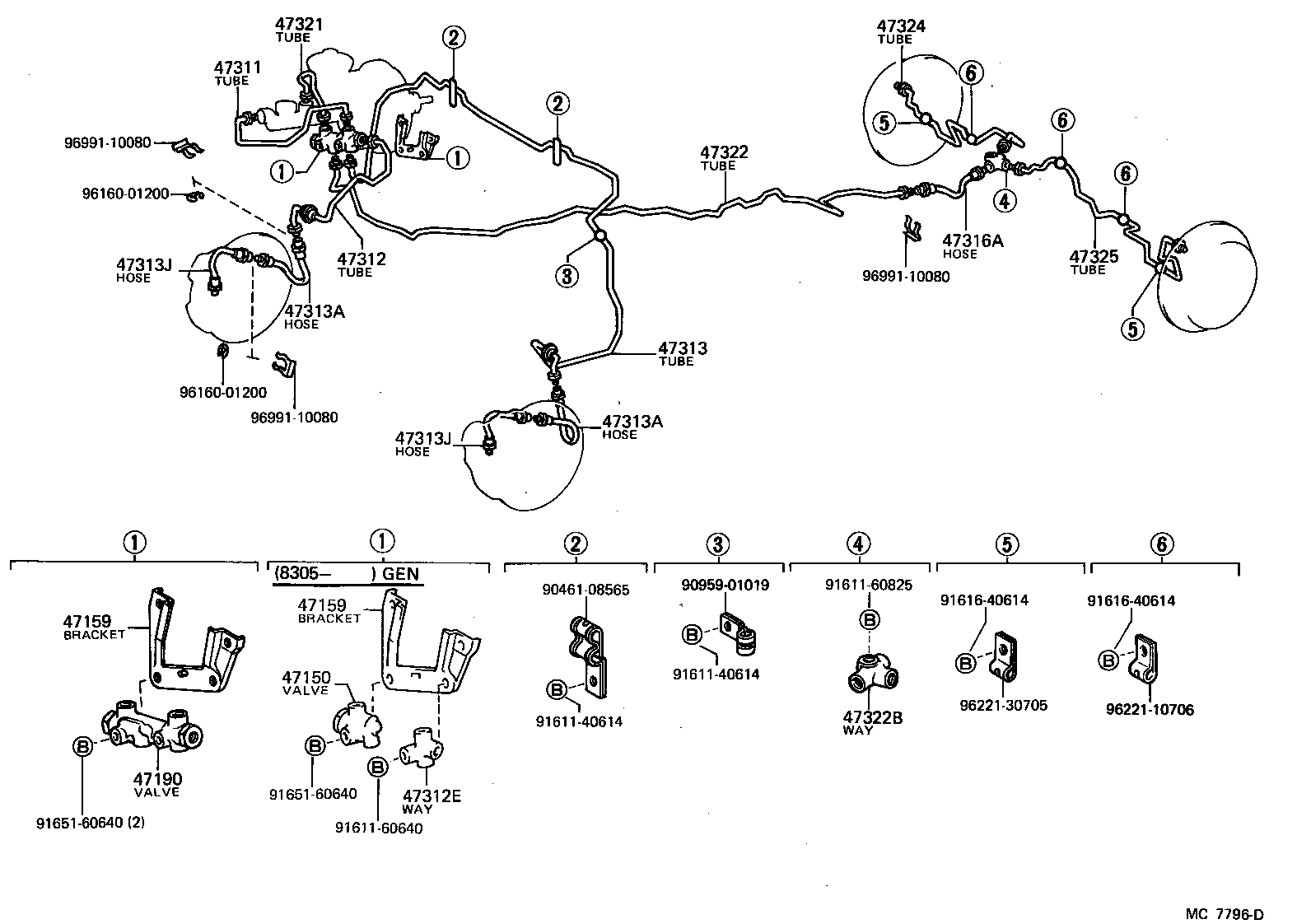

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14030 |
RA60,61..RHD |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14030 |
RA60,61..RHD |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-22040 |
RA60,61..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14210 |
RA60,61..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-14110 |
AA63,RA60,61,SA63..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-14110 |
RA60,61..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02426 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02426 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32454 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32454 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
RA60,TA60 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-14090 |
RA60,61..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-14070 |
RA60..RHD |
1 | ||
| 47322-14071 |
RA60..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
RA60,TA60 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-14041 |
RA60,TA60 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-14051 |
RA60,TA60 |
1 | ||
| Common parts | ||||
| 90461-08565 | ||||
| 90959-01019 | ||||
| 91611-40614 | ||||
| 91611-60640 | ||||
| 91611-60825 | ||||
| 91616-40614 | ||||
| 91651-60640 | ||||
| 96160-01200 | ||||
| 96221-10706 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
