RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)21RC

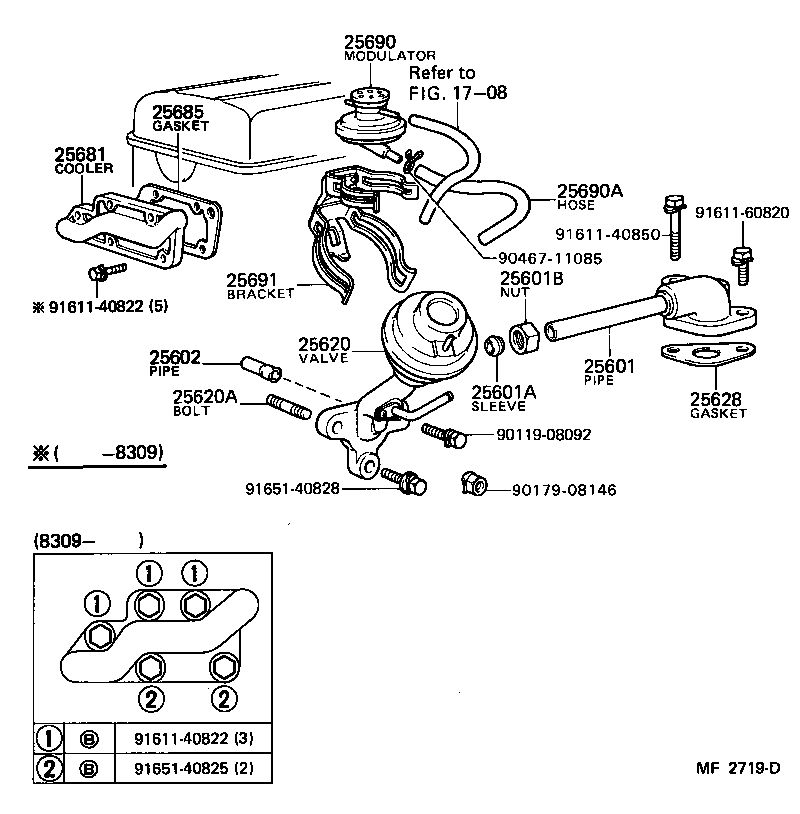

Click highlighted areas on diagram

diagram 1708 25601 25601A 25601B 25602 25620 25620A 25628 25681 25685 25690 25690A 25691 9011908092 9017908146 9046711085 9161140822 9161140822 9161140850 9161160820 9165140825 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

21RC..RA60,61

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

21RC..RA60,61

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

21RC..RA60,61

 1
25620 - VALVE ASSY, EGR
25620-37040

21RC..RA60,61

 1
25620-37040

21RC..RA60

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

21RC..RA60,61

 1
25628 - GASKET, EGR INLET
25628-38010

21RC..RA60,61

 1
25681 - COOLER, EGR, NO.1
11181-35010

21RC..RA60,61

 1
25685 - GASKET, EGR COOLER, NO.1
11182-38011

21RC..RA60,61

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-37020

21RC..RA60,61

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05147

21RC..RA60,61

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-35010

21RC..RA60,61

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-40822
91611-40850
91611-60820
91651-40825
91651-40828
Linked diagrams
1708
