RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

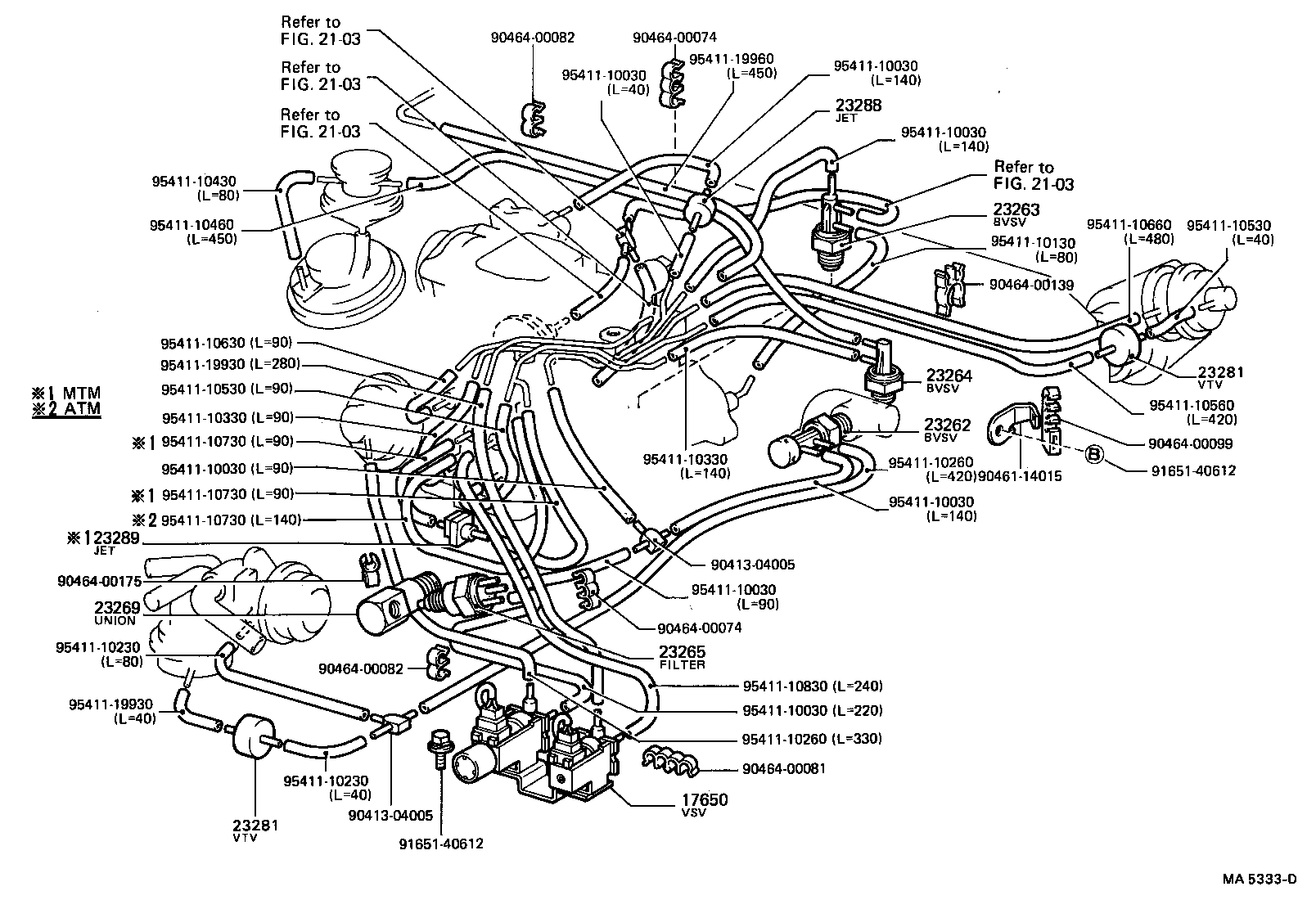

(8108-8308)21RC..RA60

Click highlighted areas on diagram

diagram 17650 2103 2103 2103 2103 23262 23263 23264 23265 23269 23281 23281 23288 23289 9041304005 9041304005 9046114015 9046400074 9046400074 9046400081 9046400082 9046400082 9046400099 9046400139 9046400175 9165140612 9165140612 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110130 9541110230 9541110230 9541110260 9541110260 9541110330 9541110330 9541110430 9541110460 9541110530 9541110530 9541110560 9541110630 9541110660 9541110730 9541110730 9541110730 9541110830 9541119930 9541119930 9541119960
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14120

21R#..RA60..RHD..5F

HONG KONG SPEC

 1
89570-20190

21RC..RA60

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

21R..RA60..RHD

HONG KONG SPEC

 1
25820-37010

21RC..RA60,61

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-13010

21R#..RA60,61..ARL,EUR

 1
25810-13010

21R..RA60..RHD

HONG KONG SPEC

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05035

21RC..RA60,61

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#,22REC..RA60,61,65

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RA60,61

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01021

21RC,18RG..RA6#

 2
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01021

21RC,18RG..RA6#

 2
23288 - JET, NO.1
90925-04005

21R#..RA60,61

 1
23289 - JET, NO.2
90925-04013

21R..RA60..RHD..5F

HONG KONG SPEC

 1
90925-04026

21RC..RA60..5F

SPARK CONTROL

 1
Common parts
90413-04005
90461-14015
90464-00074
90464-00081
90464-00082
90464-00099
90464-00139
90464-00175
91651-40612
95411-10030
95411-10130
95411-10230
95411-10260
95411-10330
95411-10430
95411-10460
95411-10530
95411-10560
95411-10630
95411-10660
95411-10730
95411-10830
95411-19930
95411-19960
Linked diagrams
2103

(8108-8202)21R ; (8108-8408)21R..RA61..EUG

Click highlighted areas on diagram

(8108-8202)HONG KONG SPEC

diagram 17650 2103 2103 2103 2103 23262 23263 23265 23269 23288 23289 9011606067 9033903005 9033903005 9041304005 9041304005 9046114015 9046400074 9046400082 9046400082 9046400099 9046400139 9046400175 9046400250 9165140612 9541110030 9541110030 9541110030 9541110030 9541110030 9541110130 9541110260 9541110530 9541110530 9541110595 9541110630 9541110630
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14120

21R#..RA60..RHD..5F

HONG KONG SPEC

 1
89570-20190

21RC..RA60

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

21R..RA60..RHD

HONG KONG SPEC

 1
25820-37010

21RC..RA60,61

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-13010

21R#..RA60,61..ARL,EUR

 1
25810-13010

21R..RA60..RHD

HONG KONG SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#,22REC..RA60,61,65

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RA60,61

 1
23288 - JET, NO.1
90925-04005

21R#..RA60,61

 1
23289 - JET, NO.2
90925-04013

21R..RA60..RHD..5F

HONG KONG SPEC

 1
90925-04026

21RC..RA60..5F

SPARK CONTROL

 1
Common parts
90116-06067
90339-03005
90413-04005
90461-14015
90464-00074
90464-00082
90464-00099
90464-00139
90464-00175
90464-00250
91651-40612
95411-10030
95411-10130
95411-10260
95411-10530
95411-10595
95411-10630
Linked diagrams
2103

(8108- )21R#,22REC,18RG

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501018 9092501019 9092501021 9092501026 9092501027 9092501029 9092501042 9092501043 9092501053 9092501054 9092501062 9092501064
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01018
90925-01019
90925-01021
90925-01026
90925-01027
90925-01029
90925-01042
90925-01043
90925-01053
90925-01054
90925-01062
90925-01064
