RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21RC

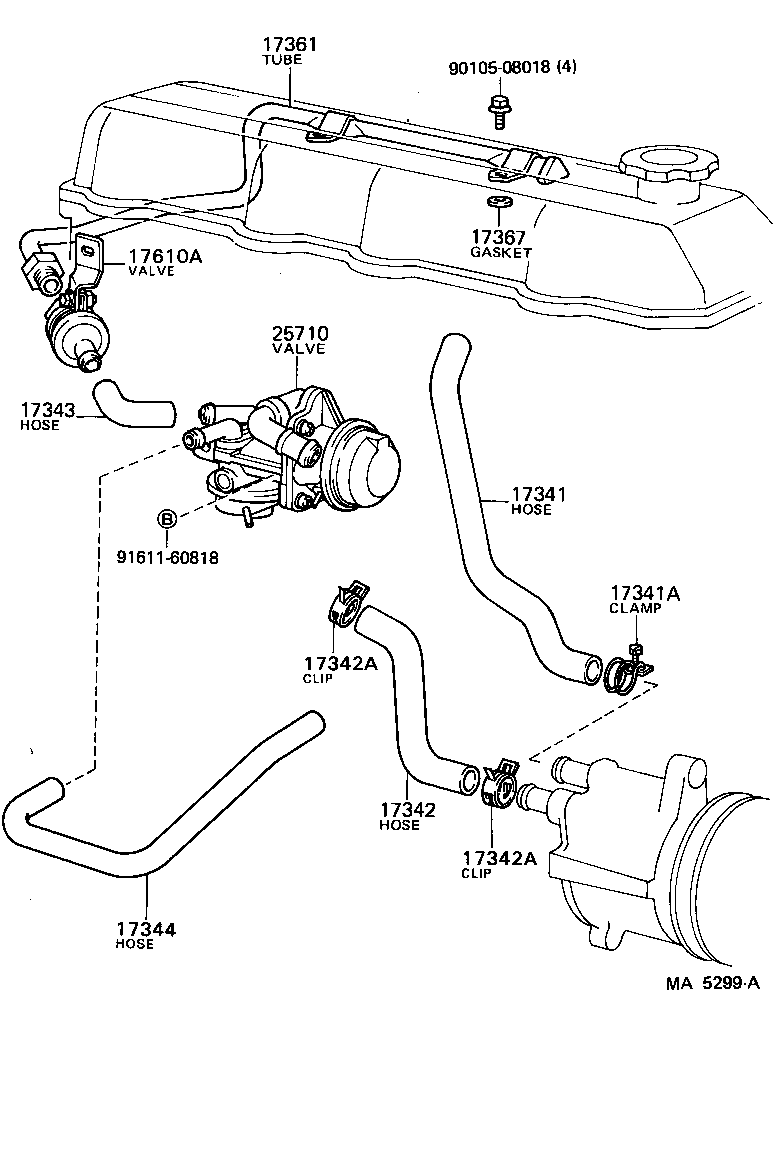

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17344 17361 17367 17610A 25710 9010508018 9161160818
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38040

21RC..RA60,61

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

21RC..RA60,61

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-37040

21RC..RA60,61

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

21RC..RA60,61

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

21RC..RA60,61

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-38040

21RC..RA60,61

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38050

21RC..RA60,61

 1
17361 - TUBE, AIR
17360-38020

21RC..RA60,61

 1
17367 - GASKET, AIR TUBE
17376-38011

21RC..RA60,61

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10058

21RC..RA60,61

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-37010

21RC..RA60,61

 1
Common parts
90105-08018
91611-60818
