RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

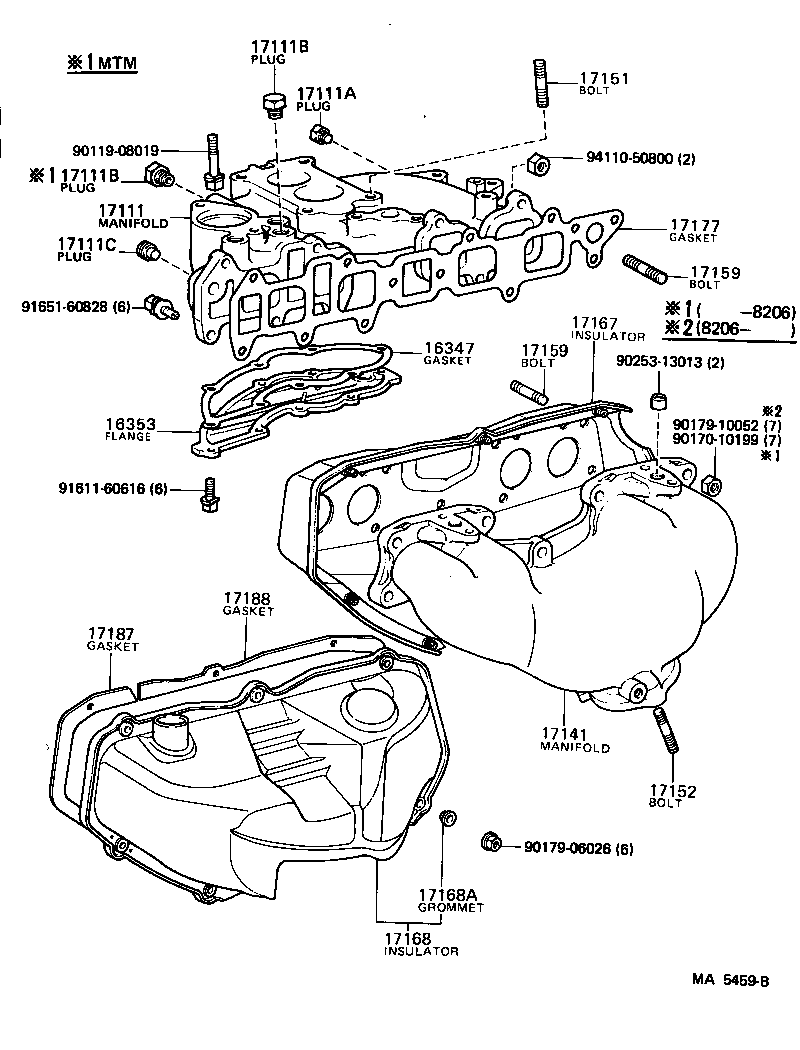

(8108-8208)21RC..RA60

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111B 17111C 17141 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 9011908019 9017010199 9017906026 9017910052 9025313013 9161160616 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

21RC..RA60

 1
16347-35030

21RC..RA60

 1
16353 - FLANGE, WATER BY-PASS
16353-35030

21RC..RA60

 1
16353-35010

21RC..RA60

 1
16353-37010

21R..RA60

 1
17111 - MANIFOLD, INTAKE
17111-35040

21RC..RA60

 1
17111-35012

21RC..RA60

 1
17111A - PLUG, NO.1
90345-51025

21R#..RA60,61

 1
17111B - PLUG, NO.2
90345-53007

21R#..RA60,61..5F

 2
17111B - PLUG, NO.2
90345-53007

21R#..RA60,61..5F

 2
17111C - PLUG, NO.3
90340-16002

21RC..RA60

 1
17141 - MANIFOLD, EXHAUST
17141-38012

21RC..RA60

 1
17141-35020

21R..RA60,61

 1
17141-35060

21RC..RA60

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

21R#..RA60,61

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

21R#,18RG..RA6#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35010

21RC..RA60,61

 1
17167-35020

21R..RA60,61

 1
17167-35021

21R..RA60,61

 1
17167-35011

21RC..RA60,61

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020

21R#..RA60,61

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

21R#..RA60,61

OD=11.5

 2
90480-12001

21R#..RA60,61

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38011

21R..RA60,61

 1
17177-35020

21RC..RA60

 1
17177-35011

21RC..RA60

 1
17177-35021

21RC..RA60

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

21R#..RA60,61

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

21R#..RA60,61

 1
Common parts
90119-08019
90170-10199
90179-06026
90179-10052
90253-13013
91611-60616
91651-60828
94110-50800

(8108-8208)21R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111B 17114 17115 17141 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 9011908019 9017010199 9017906026 9017910052 9161160816 9165160612 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

21RC..RA60

 1
16347-35030

21RC..RA60

 1
16353 - FLANGE, WATER BY-PASS
16353-35030

21RC..RA60

 1
16353-35010

21RC..RA60

 1
16353-37010

21R..RA60

 1
17111 - MANIFOLD, INTAKE
17111-35040

21RC..RA60

 1
17111-35012

21RC..RA60

 1
17111A - PLUG, NO.1
90345-51025

21R#..RA60,61

 1
17111B - PLUG, NO.2
90345-53007

21R#..RA60,61..5F

 2
17111B - PLUG, NO.2
90345-53007

21R#..RA60,61..5F

 2
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-38010

21R..RA60,61

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25628-38010

21R..RA60,61

 1
17141 - MANIFOLD, EXHAUST
17141-38012

21RC..RA60

 1
17141-35020

21R..RA60,61

 1
17141-35060

21RC..RA60

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

21R#..RA60,61

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

21R#,18RG..RA6#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35010

21RC..RA60,61

 1
17167-35020

21R..RA60,61

 1
17167-35021

21R..RA60,61

 1
17167-35011

21RC..RA60,61

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020

21R#..RA60,61

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

21R#..RA60,61

OD=11.5

 2
90480-12001

21R#..RA60,61

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38011

21R..RA60,61

 1
17177-35020

21RC..RA60

 1
17177-35011

21RC..RA60

 1
17177-35021

21RC..RA60

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

21R#..RA60,61

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

21R#..RA60,61

 1
Common parts
90119-08019
90170-10199
90179-06026
90179-10052
91611-60816
91651-60612
91651-60828
94110-50800

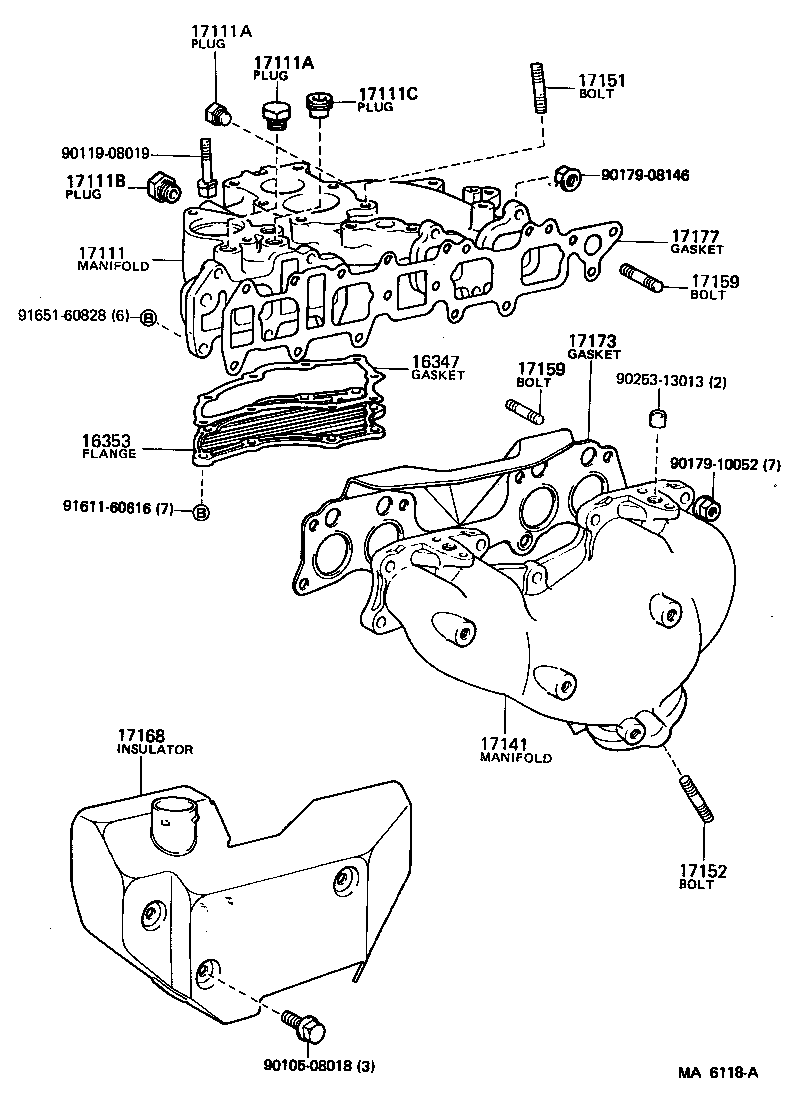

(8208-8308)21RC..RA60

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111A 17111B 17111C 17141 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9165160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

21RC..RA60

 1
16347-35030

21RC..RA60

 1
16353 - FLANGE, WATER BY-PASS
16353-35030

21RC..RA60

 1
16353-35010

21RC..RA60

 1
16353-37010

21R..RA60

 1
17111 - MANIFOLD, INTAKE
17111-35040

21RC..RA60

 1
17111-35012

21RC..RA60

 1
17111A - PLUG, NO.1
90345-51025

21R#..RA60,61

 1
17111A - PLUG, NO.1
90345-51025

21R#..RA60,61

 1
17111B - PLUG, NO.2
90345-53007

21R#..RA60,61..5F

 2
17111C - PLUG, NO.3
90340-16002

21RC..RA60

 1
17141 - MANIFOLD, EXHAUST
17141-38012

21RC..RA60

 1
17141-35020

21R..RA60,61

 1
17141-35060

21RC..RA60

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

21R#..RA60,61

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

21R#,18RG..RA6#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10011

21R#..RA60,61

EXHAUST MANIFOLD,L=42,S=12&25

 4
90116-08013

21R#..RA60,61

INTAKE MANIFOLD

 2
90116-10317

21R#..RA60,61

EXHAUST MANIFOLD,L=36,S=13&13

 3
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020

21R#..RA60,61

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38011

21R..RA60,61

 1
17177-35020

21RC..RA60

 1
17177-35011

21RC..RA60

 1
17177-35021

21RC..RA60

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91651-60828
