RA60L-BCPMS (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

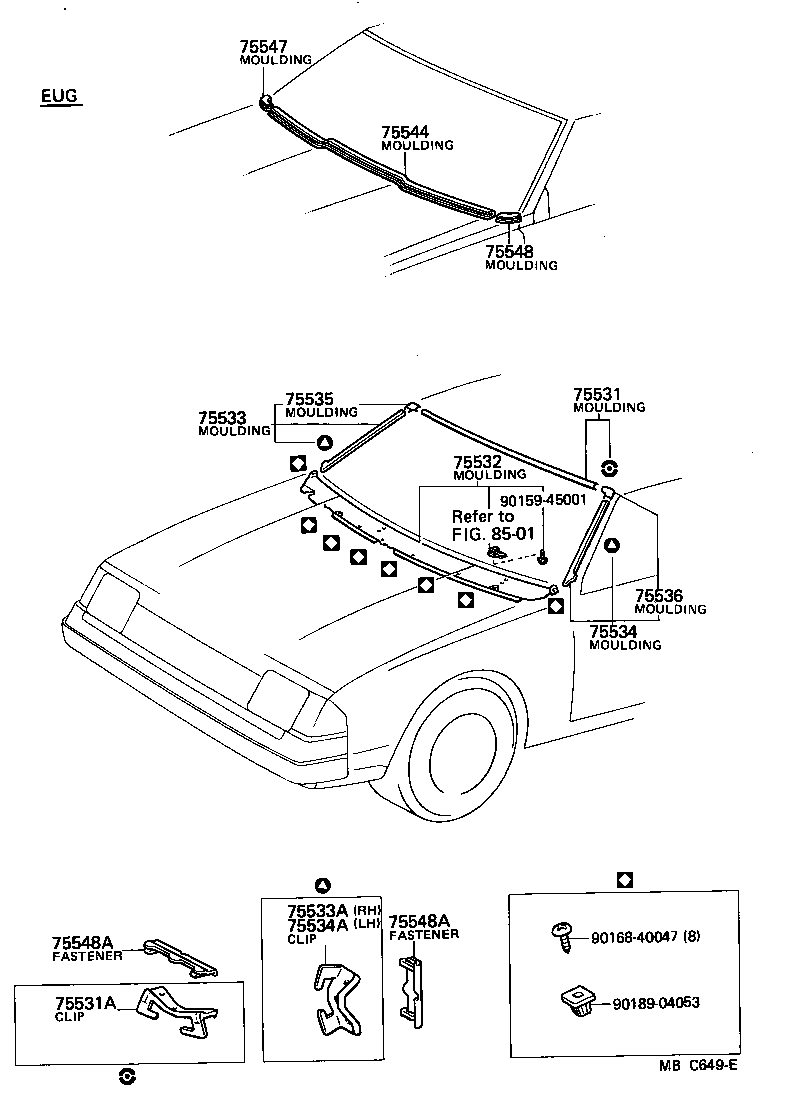

Click highlighted areas on diagram

diagram 75531 75531A 75532 75533 75533A 75534 75534A 75535 75536 75544 75547 75548 75548A 75548A 8501 9015945001 9016840047 9018904053
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-14120

AA63,MA61,RA6#,SA63,TA60

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75546-14080

AA63,MA61,RA6#,SA63,TA60

 6
75532 - MOULDING, WINDSHIELD, LOWER
75535-14170

AA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-14130

AA63,MA61,RA6#,SA63,TA60

 1
75533A - CLIP, WINDSHIELD SIDE MOULDING, RH
75545-14081

AA63,MA61,RA6#,SA63,TA60

 3
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-14100

AA63,MA61,RA6#,SA63,TA60

 1
75534A - CLIP, WINDSHIELD SIDE MOULDING, LH
75545-14081

AA63,MA61,RA6#,SA63,TA60

 3
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-14080

AA63,MA61,RA6#,SA63,TA60

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75542-14060

AA63,MA61,RA6#,SA63,TA60

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

AA63,MA61,RA6#,SA63,TA60

 9
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

AA63,MA61,RA6#,SA63,TA60

 9
Common parts
90159-45001
90168-40047
90189-04053
Linked diagrams
8501
