MA61R-BLPQF (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MA61

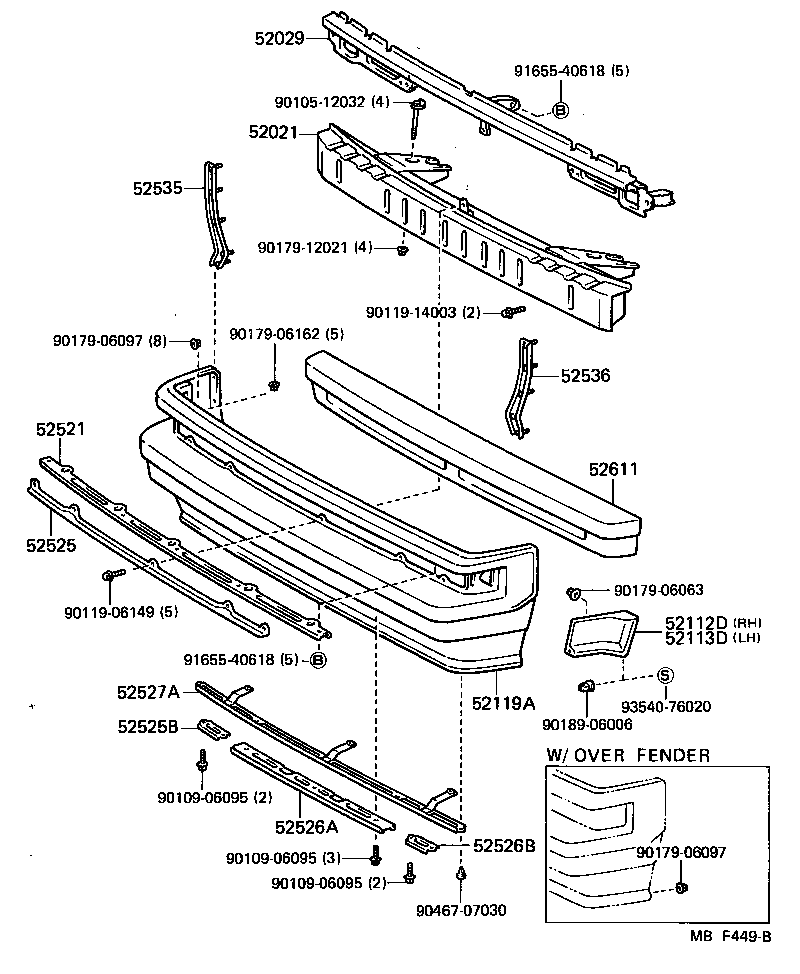

Click highlighted areas on diagram

diagram 52021 52029 52112D 52113D 52119A 52521 52525 52525B 52526A 52526B 52527A 52535 52536 52611 9010512032 9010906095 9010906095 9010906095 9011906149 9011914003 9017906063 9017906097 9017906097 9017906162 9017912021 9018906006 9046707030 9165540618 9165540618 9354076020
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-14020

MA61

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-14040

MA61

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-14040

MA61

 1
52119A - COVER, FRONT BUMPER
52119-14905

MA61

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-14071

MA61

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-20010

MA61

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-14040

MA61

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-20010

MA61

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-14010

MA61

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-14010

MA61

 1
Common parts
90105-12032
90109-06095
90119-06149
90119-14003
90179-06063
90179-06097
90179-06162
90179-12021
90189-06006
90467-07030
91655-40618
93540-76020
