MA61R-BLPQF (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5M#

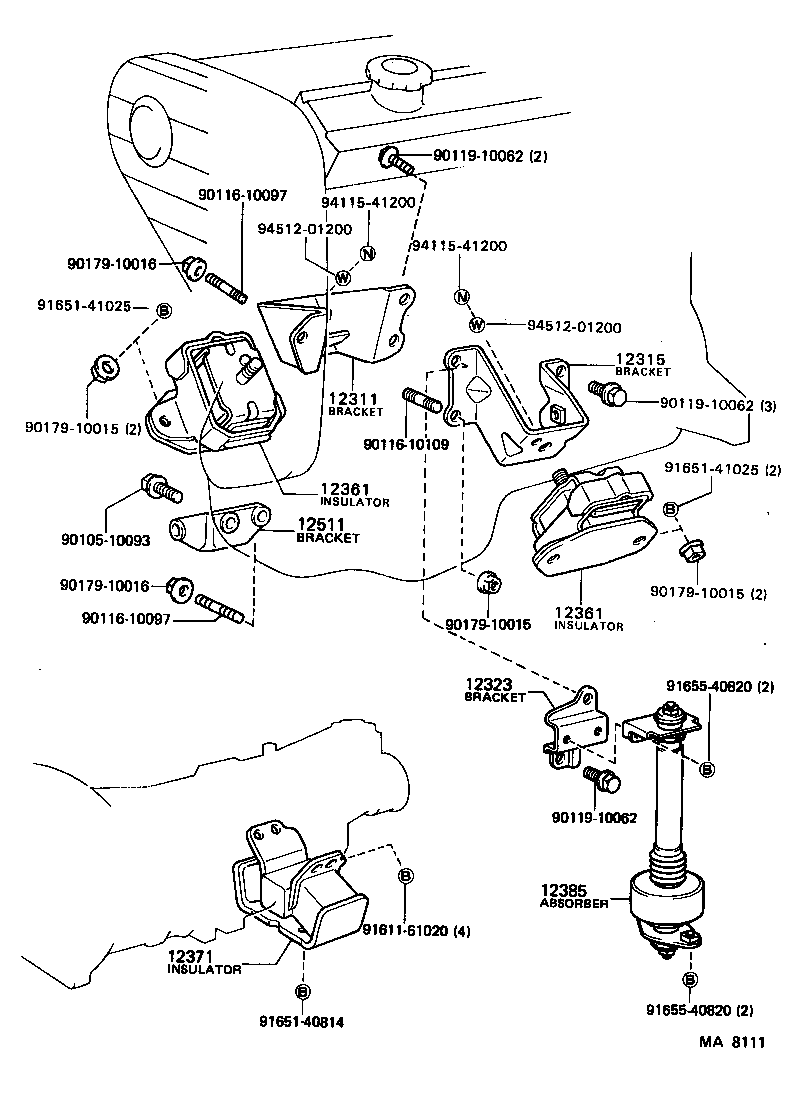

Click highlighted areas on diagram

diagram 12311 12315 12323 12361 12361 12371 12385 12511 9010510093 9011610097 9011610097 9011610109 9011910062 9011910062 9011910062 9017910015 9017910015 9017910015 9017910016 9017910016 9161161020 9165140814 9165141025 9165141025 9165540820 9165540820 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12323 - BRACKET, ENGINE MOUNTING ABSORBER
12323-43010

5MGE..MA61..EUR,GEN,SA

 1
12323-43020

5MGE..MA61..EUR,GEN,SA

W/COOLER

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5M#..MA61

 1
Common parts
90105-10093
90116-10097
90116-10109
90119-10062
90179-10015
90179-10016
91611-61020
91651-40814
91651-41025
91655-40820
94115-41200
94512-01200
