MA61R-BLMQFW (1981)

Toyota Celica

Production Dec 1981 - Dec 1985
Engine 5MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8112- )MA61

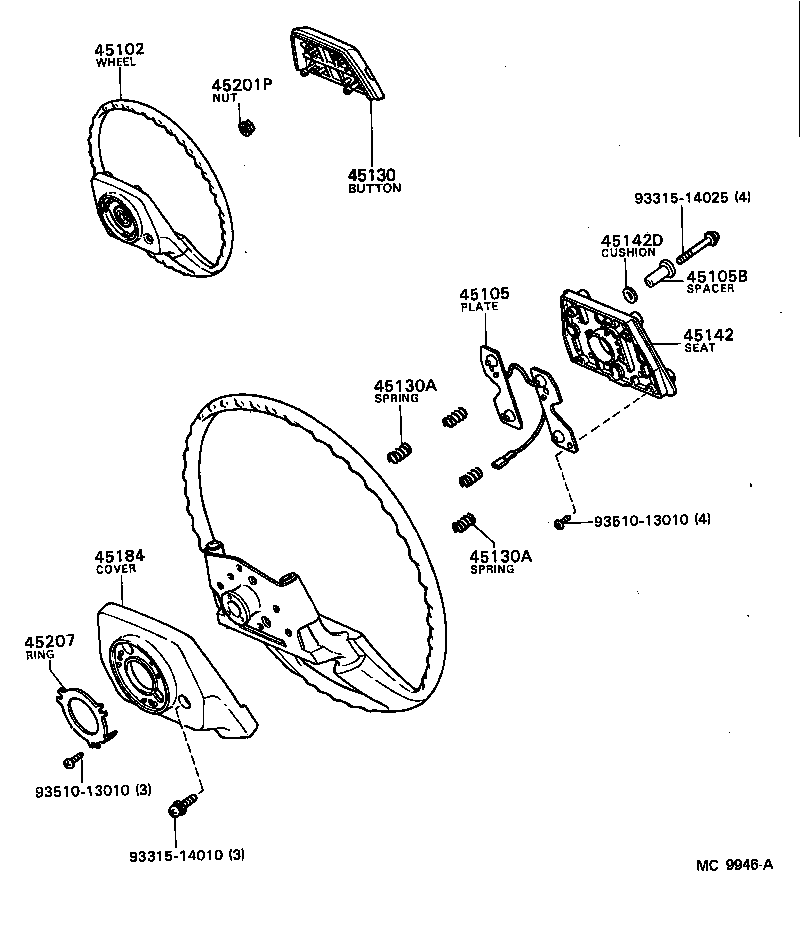

Click highlighted areas on diagram

diagram 45102 45105 45105B 45130 45130A 45130A 45142 45142D 45184 45201P 45207 9331514025 9351013010 9351013010 9831514010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-2401006

MA61..EUR

DARK BROWN,BROWN,TRIM4#

 1
45100-2401001

MA61

BLACK,BLACK,TRIM2#

 1
45100-2401004

MA61

BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-24010

MA61

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04006

MA61

 1
45130 - BUTTON ASSY, HORN
45130-1413001

MA61

BLACK,BLACK,TRIM2#

 1
45130-1413004

MA61

BLUE,BLUE,TRIM8#

 1
45130-1413006

MA61..EUR

DARK BROWN,BROWN,TRIM4#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10040

MA61

 4
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10040

MA61

 4
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-24010

MA61

 1
45142D - CUSHION(FOR HORN BUTTON CONTACT SEAT)
90540-08007

MA61

 4
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-2401006

MA61..EUR

DARK BROWN,BROWN,TRIM4#

 1
45184-2401001

MA61

BLACK,BLACK,TRIM2#

 1
45184-2401004

MA61

BLUE,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AA63,MA61,RA6#,SA63,TA60

 1
45207 - RING, HORN CONTACT
45176-20030

MA61

 1
Common parts
93315-14025
93510-13010
98315-14010
