MA61L-BLPQEC (1983)
Toyota Celica
Production
Aug 1983
-
Dec 1985
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

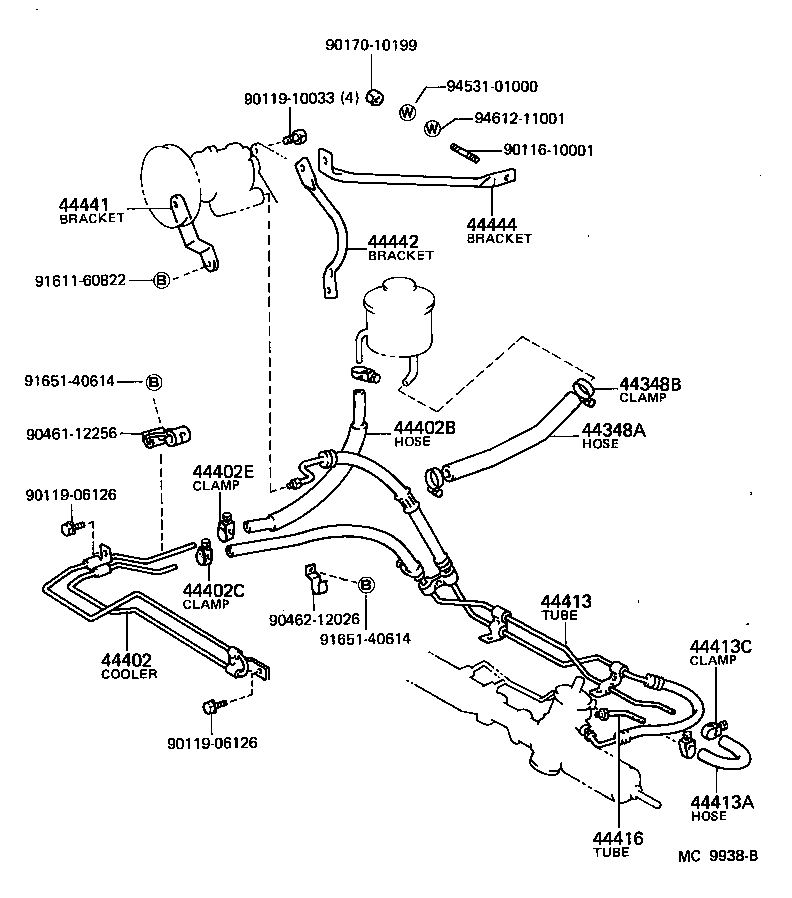

(8308- )MA61..SDZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-14080 |
MA61..SDZ |
1 | ||
| 44348-14020 |
RA60,61,65 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14060 |
RA60,61 |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 44412-14040 |
RA60,61 |
1 | ||
| 44412-14050 |
RA60,61 |
1 | ||
| 44412-14180 |
MA61..EFI |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-14080 |
MA61..SDZ |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-14110 |
RA60,61..LHD |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-14030 |
MA61..EFI |
1 | ||
| 44441-20010 |
RA60,61,65 |
1 | ||
| 44441-22050 |
MA61..EFI |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-14010 |
MA61..EFI |
1 | ||
| 44442-14011 |
MA61..EFI |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-14010 |
MA61..EFI |
1 | ||
| 44444-14011 |
MA61..EFI |
1 | ||
| Common parts | ||||
| 90116-10001 | ||||
| 90119-06126 | ||||
| 90119-10033 | ||||
| 90170-10199 | ||||
| 90461-12256 | ||||
| 90462-12026 | ||||
| 91611-60822 | ||||
| 91651-40614 | ||||
| 94531-01000 | ||||
| 94612-11001 | ||||
(8108-8507)RA60,61..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99367-00920 |
5M#..MA61 |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99332-01395 |
5ME..MA61 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-14080 |
MA61..SDZ |
1 | ||
| 44348-14020 |
RA60,61,65 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20020 |
RA60,61,65 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14060 |
RA60,61 |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 44412-14040 |
RA60,61 |
1 | ||
| 44412-14050 |
RA60,61 |
1 | ||
| 44412-14180 |
MA61..EFI |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
MA61,RA60,61,65,SA63 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44410-14050 |
RA60,61..LHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-14110 |
RA60,61..LHD |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-14030 |
MA61..EFI |
1 | ||
| 44441-20010 |
RA60,61,65 |
1 | ||
| 44441-22050 |
MA61..EFI |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20031 |
RA60,61 |
1 | ||
| 44445 - BRACKET, PUMP, LOWER | ||||
| 44445-20010 |
RA60,61 |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90461-12256 | ||||
| 90949-01002 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-40614 | ||||
| 91651-61022 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
