MA61L-BLMQFW (1981)

Toyota Celica

Production Dec 1981 - Dec 1985
Engine 5MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA61..RHD ; (8108-8507)RA60..GEN,ME ;(8108-8507)RA61..LHD..4FC ; (8108-

Click highlighted areas on diagram

diagram 88031 88645B 88645B 88691 88691 88691C 88691C 88691D 88691D 88691E 9046400074 9046400082 9338516016 9338516016
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14650

MA61

 1
88690-30540

MA61..TWC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14650

MA61

 1
88690-30540

MA61..TWC

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

MA61..TWC

*H,L=260,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

MA61..TWC

*H,L=260,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-24021

MA61..TWC

 1
95411-19930

MA61..TWC

*H,L=280,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-24021

MA61..TWC

 1
95411-19930

MA61..TWC

*H,L=280,MARK=#*

 1
Common parts
90464-00074
90464-00082
93385-16016

(8112- )TWC ; (8308- )MA61..LHD..GEN,SAA

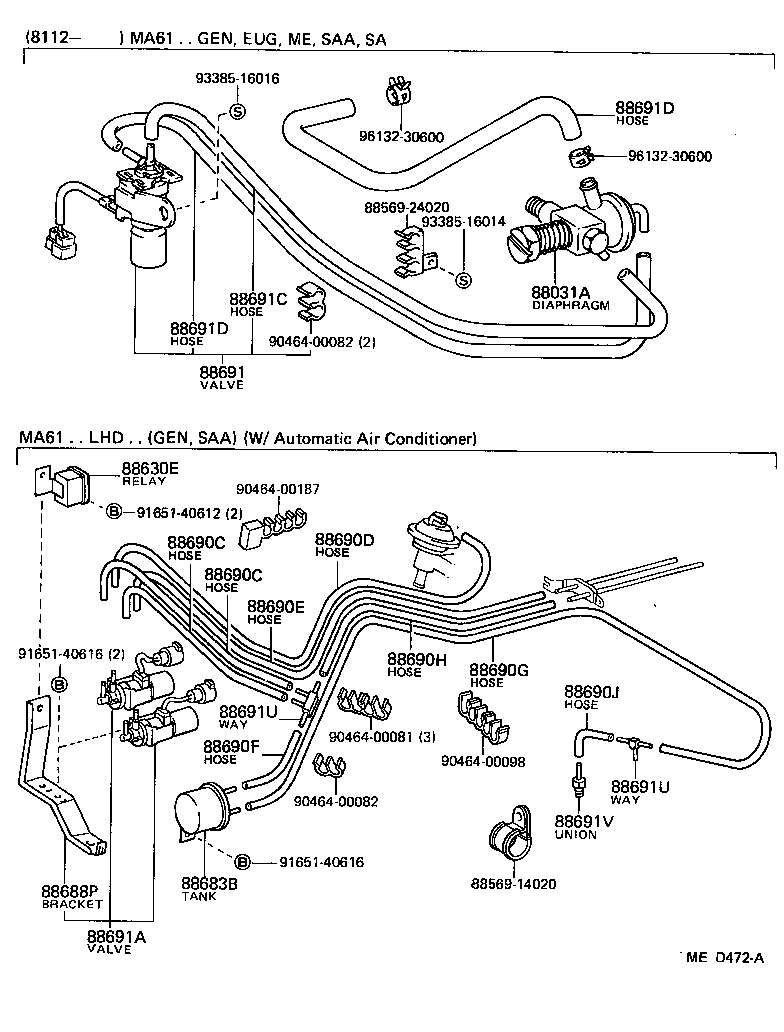

Click highlighted areas on diagram

diagram 88031A 8856914020 8856924020 88630E 88683B 88688P 88690C 88690C 88690D 88690E 88690F 88690G 88690H 88690J 88691 88691A 88691C 88691D 88691D 88691U 88691U 88691V 9046400081 9046400082 9046400082 9046400098 9046400187 9165140612 9165140616 9165140616 9338516014 9338516016 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24020

MA61..TWC

 1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
90445-08246

MA61

L=1150

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14650

MA61

 1
88690-30540

MA61..TWC

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

MA61..TWC

*H,L=260,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-24021

MA61..TWC

 1
95411-19930

MA61..TWC

*H,L=280,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-24021

MA61..TWC

 1
95411-19930

MA61..TWC

*H,L=280,MARK=#*

 1
Common parts
88569-14020
88569-24020
90464-00081
90464-00082
90464-00098
90464-00187
91651-40612
91651-40616
93385-16014
93385-16016
96132-30600
