Toyota Celica AT200 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
CELICA
AT200R-BLMSKW (1995)
5201 - FRONT BUMPER & BUMPER STAY

AT200R-BLMSKW (1995)

Toyota Celica

Production May 1995 - Aug 1999

Engine 7AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9309-9508)CP,LB ; (9408-9510)CVT

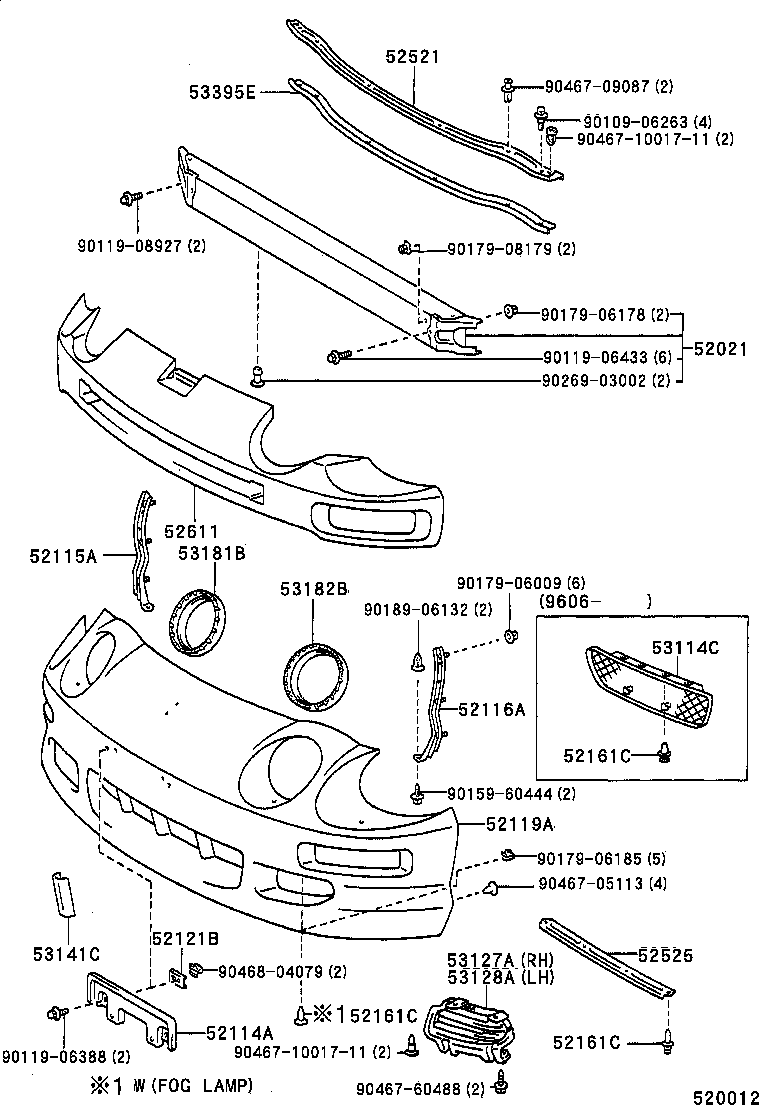

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-06263
90119-06388
90119-06433
90119-08927
90159-60444
90179-06009
90179-06178
90179-06185
90179-08174
90189-06132
90269-03002
90467-05113
90467-09087
90467-1001711
90468-04079

(9508- )CP,LB ; (9510- )CVT

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-06263
90119-06388
90119-06433
90119-08927
90159-60444
90159-60488
90179-06009
90179-06178
90179-06185
90179-08174
90189-06132
90269-03002
90467-05113
90467-09087
90467-1001711
90468-04079

(9508-9512)AT200,ST202 ; (9512- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20250	AT200,ST202	12/1995 - 12/2999	1
52021-20250	AT200,ST202..LB	08/1995 - 12/1995	1
52021-20240	AT200,ST202	11/1993 - 08/1995	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-20120	AT200,ST202	11/1993 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20320	AT200,ST20#	11/1993 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20220	AT200,ST20#	11/1993 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-2B904	AT200,ST202 W(HEADLAMP CLEANER)	11/1993 - 08/1995	1
52119-2B916	AT200,ST202 W(HEADLAMP CLEANER)	12/1995 - 12/2999	1
52119-2B916	AT200,ST202..LB W(HEADLAMP CLEANER)	08/1995 - 12/1995	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-24020	AT200,ST202	11/1993 - 12/2999	2
52161C - PIECE, FRONT BUMPER
52161-16010	AT200,ST202	11/1993 - 01/1995	8
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2	08/1995 - 06/1996	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,8L2 ,933	01/1997 - 12/1997	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933	12/1997 - 07/1998	4
52161-16010	AT200,ST202..LB CENTER	08/1995 - 12/1995	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,933	07/1998 - 12/2999	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8L2 ,933	06/1996 - 01/1997	4
52161-16010	AT200,ST202 CENTER	12/1995 - 12/2999	4
52161C - PIECE, FRONT BUMPER
52161-16010	AT200,ST202	11/1993 - 01/1995	8
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2	08/1995 - 06/1996	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,8L2 ,933	01/1997 - 12/1997	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933	12/1997 - 07/1998	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,933	07/1998 - 12/2999	4
52161-16010	AT200,ST202..LB CENTER	08/1995 - 12/1995	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8L2 ,933	06/1996 - 01/1997	4
52161-16010	AT200,ST202 CENTER	12/1995 - 12/2999	4
52161C - PIECE, FRONT BUMPER
52161-16010	AT200,ST202	11/1993 - 01/1995	8
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2	08/1995 - 06/1996	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,8L2 ,933	01/1997 - 12/1997	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933	12/1997 - 07/1998	4
52161-16010	AT200,ST202..LB CENTER	08/1995 - 12/1995	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,933	07/1998 - 12/2999	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8L2 ,933	06/1996 - 01/1997	4
52161-16010	AT200,ST202 CENTER	12/1995 - 12/2999	4
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20190	AT200,ST202	11/1993 - 12/1993	1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-20110	AT200,ST202	11/1993 - 06/1996	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20180	AT200,ST202..LB	08/1995 - 12/1995	1
52611-20180	AT200,ST202	12/1995 - 12/2999	1
52611-20130	AT200,ST202	11/1993 - 08/1995	1
53114C - GRILLE, RADIATOR, INNER
53114-20100	AT200,ST202	06/1996 - 08/1996	1
53114-20101	AT200,ST202	08/1996 - 12/2999	1
53127A - GRILLE, RADIATOR, LOWER RH
53112-20250	AT200,ST202..LB	08/1995 - 12/1995	1
53112-20250	AT200,ST202	12/1995 - 12/2999	1
53128A - GRILLE, RADIATOR, LOWER LH
53113-20190	AT200,ST202..LB	08/1995 - 12/1995	1
53113-20190	AT200,ST202	12/1995 - 12/2999	1
53141C - GARNISH, RADIATOR GRILLE
53141-20070	AT200,ST202	11/1993 - 08/1995	5
53141-20070	AT200,ST202..LB	08/1995 - 12/1995	3
53141-20070	AT200,ST202	12/1995 - 12/2999	3
53181B - SEAL, HEADLAMP COVER, NO.1, RH
53182-20030	AT200,ST20#	11/1993 - 12/2999	1
53182B - SEAL, HEADLAMP COVER, NO.1, LH
53182-20030	AT200,ST20#	11/1993 - 12/2999	1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-20010	AT200,ST202	11/1993 - 12/2999	1
Common parts
90109-06263
90119-06388
90119-06433
90119-08927
90159-60444
90159-60488
90179-06009
90179-06178
90179-06185
90179-08179
90189-06132
90269-03002
90467-05113
90467-09087
90467-1001711
90467-60488
90468-04079

(9311-9508)AT200,ST202 ; (9508-9512)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20250	AT200,ST202	12/1995 - 12/2999	1
52021-20250	AT200,ST202..LB	08/1995 - 12/1995	1
52021-20240	AT200,ST202	11/1993 - 08/1995	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-20120	AT200,ST202	11/1993 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20320	AT200,ST20#	11/1993 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20220	AT200,ST20#	11/1993 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-2B904	AT200,ST202 W(HEADLAMP CLEANER)	11/1993 - 08/1995	1
52119-2B916	AT200,ST202 W(HEADLAMP CLEANER)	12/1995 - 12/2999	1
52119-2B916	AT200,ST202..LB W(HEADLAMP CLEANER)	08/1995 - 12/1995	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-24020	AT200,ST202	11/1993 - 12/2999	2
52161C - PIECE, FRONT BUMPER
52161-16010	AT200,ST202	11/1993 - 01/1995	8
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2	08/1995 - 06/1996	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,8L2 ,933	01/1997 - 12/1997	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933	12/1997 - 07/1998	4
52161-16010	AT200,ST202..LB CENTER	08/1995 - 12/1995	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,933	07/1998 - 12/2999	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8L2 ,933	06/1996 - 01/1997	4
52161-16010	AT200,ST202 CENTER	12/1995 - 12/2999	4
52161C - PIECE, FRONT BUMPER
52161-16010	AT200,ST202	11/1993 - 01/1995	8
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2	08/1995 - 06/1996	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,8L2 ,933	01/1997 - 12/1997	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933	12/1997 - 07/1998	4
52161-16010	AT200,ST202..LB CENTER	08/1995 - 12/1995	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3K6 ,3L2 ,933	07/1998 - 12/2999	4
90467-1102101	AT200,ST202..LB BLACK,040 ,199 ,202 ,3L2 ,756 ,8L2 ,933	06/1996 - 01/1997	4
52161-16010	AT200,ST202 CENTER	12/1995 - 12/2999	4
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20190	AT200,ST202	11/1993 - 12/1993	1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-20110	AT200,ST202	11/1993 - 06/1996	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20180	AT200,ST202..LB	08/1995 - 12/1995	1
52611-20180	AT200,ST202	12/1995 - 12/2999	1
52611-20130	AT200,ST202	11/1993 - 08/1995	1
53141C - GARNISH, RADIATOR GRILLE
53141-20070	AT200,ST202	11/1993 - 08/1995	5
53141-20070	AT200,ST202..LB	08/1995 - 12/1995	3
53141-20070	AT200,ST202	12/1995 - 12/2999	3
53181B - SEAL, HEADLAMP COVER, NO.1, RH
53182-20030	AT200,ST20#	11/1993 - 12/2999	1
53182B - SEAL, HEADLAMP COVER, NO.1, LH
53182-20030	AT200,ST20#	11/1993 - 12/2999	1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-20010	AT200,ST202	11/1993 - 12/2999	1
Common parts
90109-06263
90119-06388
90119-06433
90119-08927
90159-60444
90179-06009
90179-06178
90179-06185
90179-08174
90189-06132
90269-03002
90467-05113
90467-09087
90467-1001711
90468-04079

AT200R-BLMSKW (1995)

(9309-9508)CP,LB ; (9408-9510)CVT

(9508- )CP,LB ; (9510- )CVT

(9508-9512)AT200,ST202 ; (9512- )

(9311-9508)AT200,ST202 ; (9508-9512)
