AT200L-BLPSKK (1993)
Toyota Celica
ILLUST NO. 3 OF 7(9309- )
COWL,INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2P080 |
AT200,ST204..CND |
1 | ||
| 82131-2M860 |
AT200,ST204..CND W(*80) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2D220 |
AT200,ST204..ATM..CND |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT200,ST204..CP,LB TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AT200,ST204 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-20060 |
AT200,ST204 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AT200,ST204 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2D710 |
AT200,ST204 RH |
1 | ||
| 82817-2D720 |
AT200,ST204 LH |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2D710 |
AT200,ST204 RH |
1 | ||
| 82817-2D720 |
AT200,ST204 LH |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-20040 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||
| 82702-20020 | ||||
| 82715-20660 | ||||
| 90119-06390 | ||||
| 90159-50289 | ||||
| 90159-60047 | ||||
| 90176-06036 | ||||
| 90179-06097 | ||||
| 90179-06239 | ||||
| 91631-60618 | ||||
| 91655-40618 | ||||
| 91661-60616 | ||||
| 91665-40620 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 7(9309- )
CLAMP & PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B770 | ||||
| 82715-20740 | ||||
| 82715-2B010 | ||||
| 82715-33140 | ||||
| 82715-34140 | ||||
| 82817-2D740 | ||||
| 82817-2D880 | ||||
| 90105-06182 | ||||
| 90333-30002 | ||||
| 90463-13003 | ||||

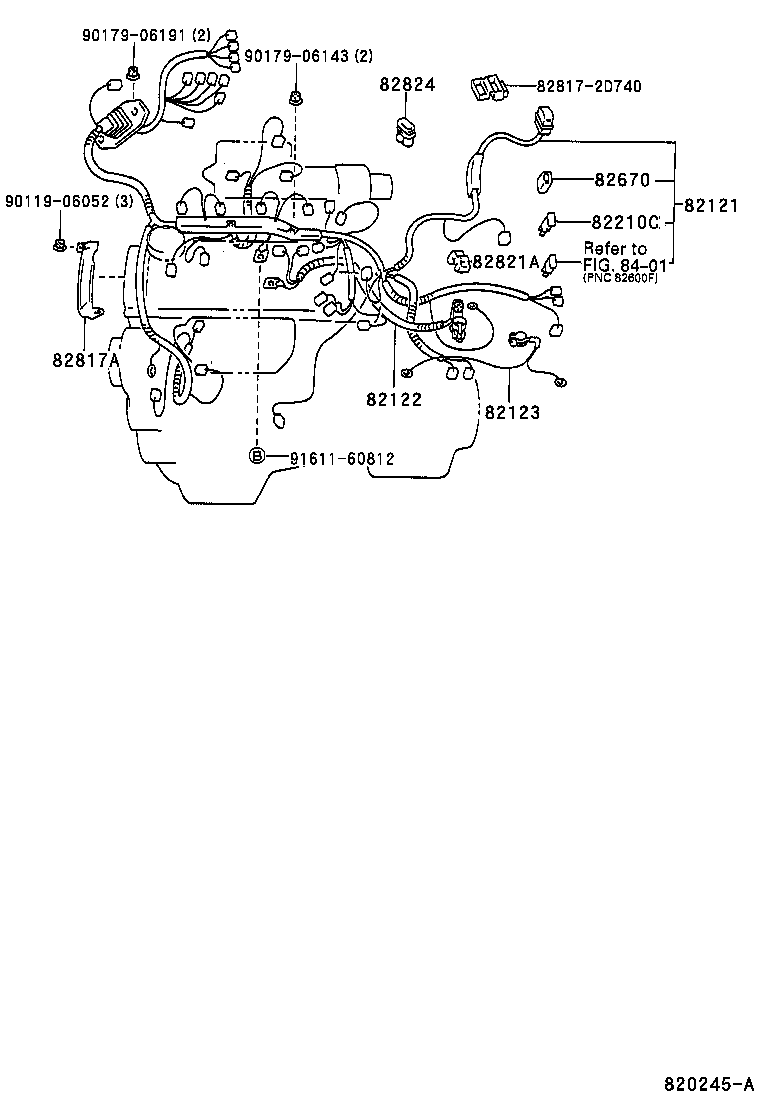

ILLUST NO. 2 OF 7(9309- )AT200
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2H700 |
AT200..ATM |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-20260 |
AT200 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20240 |
AT200,ST204 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
AT200,ST204 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
AT200,ST204 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
AT200,ST204 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
AT200,ST204 60A,TERM.:FEMALE,YEL |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-2B010 |
AT200,ST204 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AT200 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20160 |
AT200 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 82817-2D740 | ||||
| 90119-06052 | ||||
| 90179-06143 | ||||
| 90179-06191 | ||||
| 91611-60812 | ||||
ILLUST NO. 5 OF 7(9309- )
FLOOR,LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2H850 |
AT200,ST204..LB |
1 | ||
| 82161-2H830 |
AT200,ST204..LB W(ABS) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-2B190 |
AT200,ST204..LB W(AUTOMATIC ANTENNA) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20230 |
AT200,ST204..LB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20610 |
AT200,ST204..LB W(REAR WINDOW WIPER) |
1 | ||
| 82185-20611 |
AT200,ST204..LB W(REAR WINDOW WIPER) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20210 |
AT200,ST204..LB |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
AT200,ST204..CP,LB TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AT200,ST204 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-20060 |
AT200,ST204 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AT200,ST204 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 4 OF 7(9309- )
DOOR,ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2G020 |
AT200 |
1 | ||
| 82151-2D800 |
AT200,ST204 W(POWER WINDOW) |
1 | ||
| 82151-2D840 |
AT200,ST204..ST |
1 | ||
| 82151-2G200 |
AT200,ST204..CP,LB W(POWER WINDOW) |
1 | ||
| 82151-2G200 |
AT200,ST204 W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2D650 |
AT200 |
1 | ||
| 82152-2D630 |
AT200,ST204 W(POWER WINDOW) |
1 | ||
| 82152-2G020 |
AT200,ST204 W(POWER WINDOW) |
1 | ||
| 82152-2D610 |
AT200,ST204..ST |
1 | ||
| 82152-2G020 |
AT200,ST204..CP,LB W(POWER WINDOW) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20860 |
AT200,ST204..CP,LB W(SUN ROOF) |
1 | ||
| 82171-20840 |
AT200,ST204..CP,LB |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90333-20001 | ||||
| 90950-01855 | ||||
ILLUST NO. 6 OF 7(9309- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 1 OF 7(9309- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2H180 |
AT200..CND W(ABS & *80 & CRUISE CONTROL) |
1 | ||
| 82111-2H170 |
AT200,ST204..CND |
1 | ||
| 82111-2L180 |
AT200..CND W(CRUISE CONTROL) OR W(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
AT200,ST204 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
AT200,ST204 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
AT200,ST204 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
AT200,ST204 60A,TERM.:FEMALE,YEL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
AT200,ST204 REAR |
2 | ||
| 82817-2D840 |
AT200,ST204 FRONT |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
AT200,ST204 REAR |
2 | ||
| 82817-2D840 |
AT200,ST204 FRONT |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
AT200,ST204 REAR |
2 | ||
| 82817-2D840 |
AT200,ST204 FRONT |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
AT200,ST204 REAR |
2 | ||
| 82817-2D840 |
AT200,ST204 FRONT |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 7(9309- )
CLAMP & PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-20020 | ||||
| 82710-20030 | ||||
| 82711-12200 | ||||
| 82711-24010 | ||||
| 82711-24420 | ||||
| 82711-2B480 | ||||
| 82711-32780 | ||||
| 82711-35060 | ||||
| 82715-12180 | ||||
| 82715-20050 | ||||
| 82715-20630 | ||||
| 82715-20660 | ||||
| 82715-20670 | ||||
| 82715-20680 | ||||
| 82715-20690 | ||||
| 82715-22120 | ||||
| 90119-06311 | ||||
| 91611-40816 | ||||
ILLUST NO. 3 OF 8(9311- )
COWL,INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-12030 | ||||
| 82345-20040 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||
| 82702-20010 | ||||
| 82702-20020 | ||||
| 82715-20660 | ||||
| 90119-06390 | ||||
| 90159-50289 | ||||
| 90176-06022 | ||||
| 90176-06036 | ||||
| 90179-06097 | ||||
| 91631-60618 | ||||
| 91655-40618 | ||||
| 93319-15012 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF 8(9311- )
CLAMP & PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-20020 | ||||
| 82710-20030 | ||||
| 82711-2B770 | ||||
| 82715-12180 | ||||
| 82715-20050 | ||||
| 82715-20670 | ||||
| 82715-20680 | ||||
| 82715-20690 | ||||
| 82715-20720 | ||||
| 82715-20750 | ||||
| 82715-22120 | ||||
| 82715-2B010 | ||||
| 82715-34140 | ||||
| 82817-2D740 | ||||
| 82817-2D880 | ||||
| 90105-06182 | ||||
| 90119-06311 | ||||
| 90333-30002 | ||||
| 90463-13003 | ||||
| 90464-00248 | ||||
| 91611-40816 | ||||
| 91632-60612 | ||||
ILLUST NO. 2 OF 8(9311- )AT200
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2H700 |
AT200..ATM |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-20260 |
AT200 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20240 |
AT200,ST204 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
AT200,ST204 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
AT200,ST204 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
AT200,ST204 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
AT200,ST204 60A,TERM.:FEMALE,YEL |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-2B010 |
AT200,ST204 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AT200 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20160 |
AT200 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 82817-2D740 | ||||
| 90119-06052 | ||||
| 90179-06143 | ||||
| 90179-06191 | ||||
| 91611-60812 | ||||
ILLUST NO. 7 OF 8(9311- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT200 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT200,ST204 TRANSMISSION |
1 | ||
| 90980-07287 |
AT200,ST204 FENDER |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 8 OF 8(9311- )
CLAMP & PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-24010 | ||||
| 82711-24420 | ||||
| 82711-2B480 | ||||
| 82711-2B640 | ||||
| 82711-2C160 | ||||
| 82711-32780 | ||||
| 82711-33160 | ||||
| 82711-3A360 | ||||
| 82711-3A540 | ||||
| 82711-3A710 | ||||
| 82711-3H380 | ||||
| 82711-3H390 | ||||
| 82711-3H480 | ||||
| 82715-10030 | ||||
| 82715-17090 | ||||
ILLUST NO. 4 OF 8(9311- )
DOOR,ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
ILLUST NO. 5 OF 8(9311- )
FLOOR,LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 91666-40616 | ||||
ILLUST NO. 6 OF 8(9311- )
SEAT WIRE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 8(9311- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90950-01061 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
