AT200L-BLPSKK (1993)
Toyota Celica

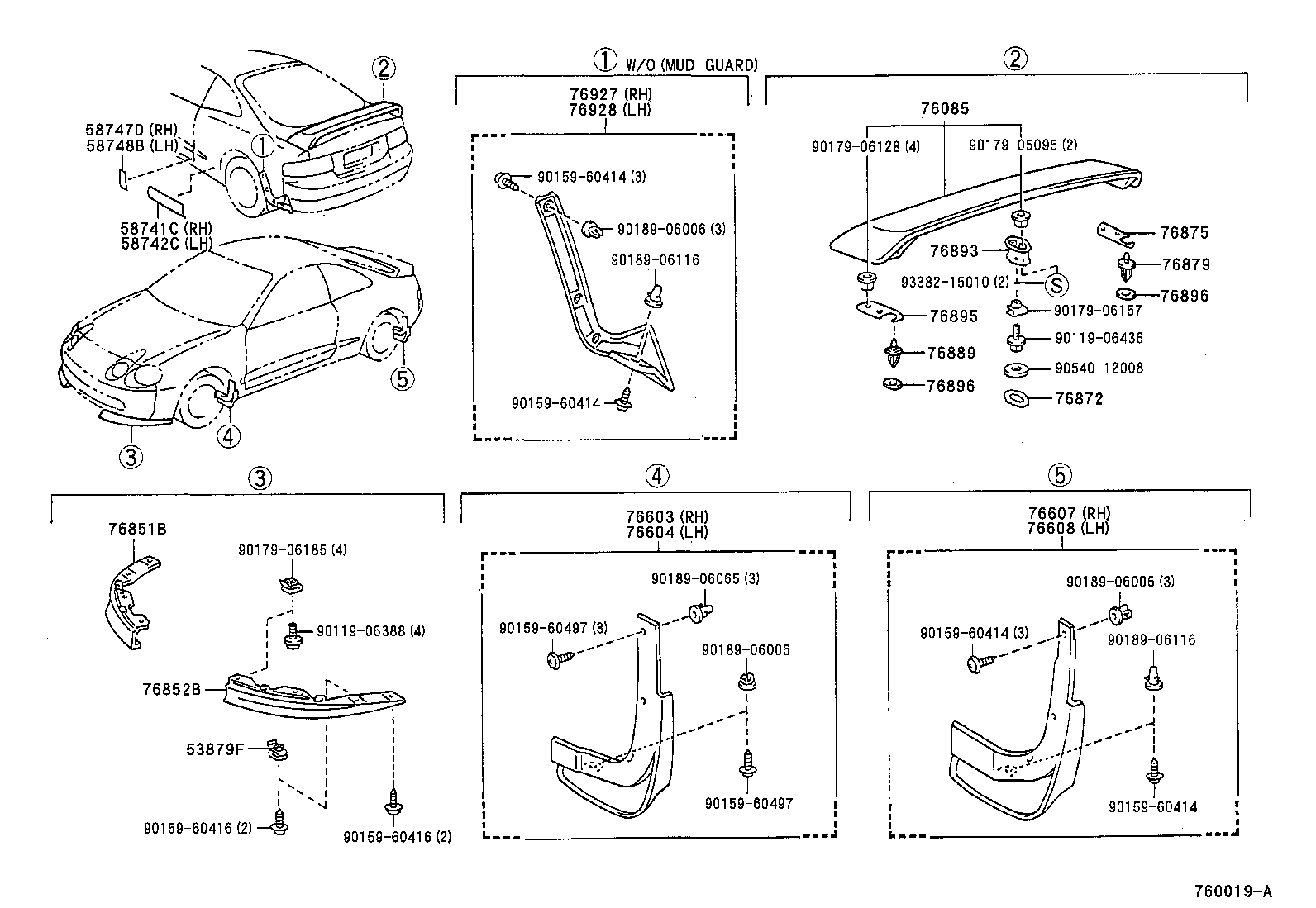

ILLUST NO. 2 OF 2(9508- )CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76865A - RETAINER, SIDE MUDGUARD | ||||
| 90467-10162 |
AT200,ST204..CP,LB |
18 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-20900 |
AT200,ST204..CP,LB |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-20900 |
AT200,ST204..CP,LB |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-20050 |
AT200,ST204..CP,LB |
2 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-20020D0 |
AT200,ST204..CP,LB RED,3L2 |
1 | ||
| 76925-20020A0 |
AT200,ST204..CP,LB WHITE,040 |
1 | ||
| 76925-20020C0 |
AT200,ST204..CP,LB BLACK,1A2 ,183 ,202 ,756 ,8K9 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-20020A0 |
AT200,ST204..CP,LB WHITE,040 |
1 | ||
| 76925-20020C0 |
AT200,ST204..CP,LB BLACK,1A2 ,183 ,202 ,756 ,8K9 |
1 | ||
| 76925-20020D0 |
AT200,ST204..CP,LB RED,3L2 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-20040 |
AT200,ST204..CP,LB |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76928-20040 |
AT200,ST204..CP,LB |
1 | ||
| Common parts | ||||
| 90159-60414 | ||||
| 90159-60420 | ||||
| 90189-06006 | ||||
| 90189-06154 | ||||
| 90467-09185 | ||||

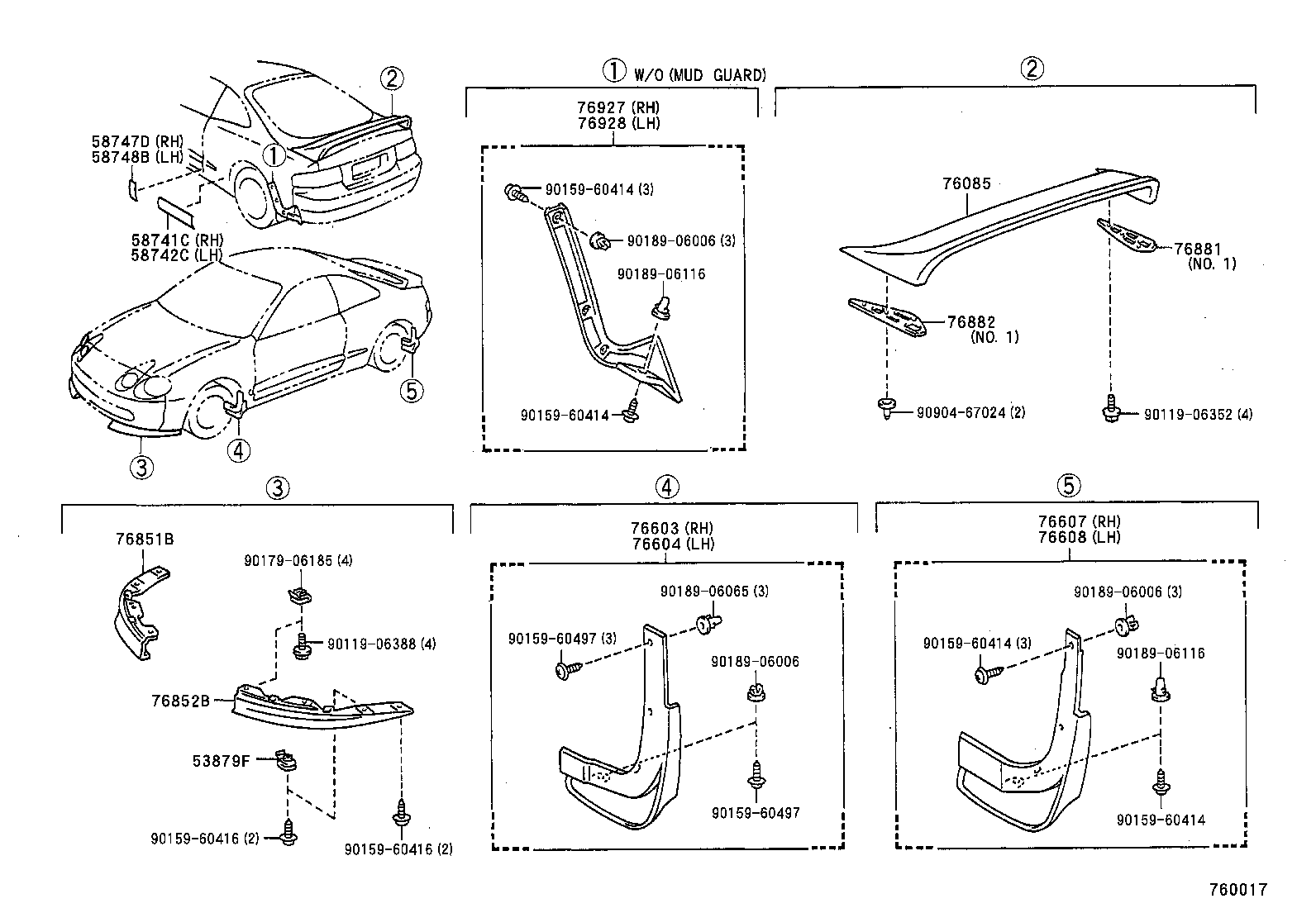

(9309-9508)CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741C - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20140 |
AT200,ST204 |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-20130 |
AT200,ST204 |
1 | ||
| 58747D - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-20020 |
AT200,ST204 |
1 | ||
| 58748B - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-20020 |
AT200,ST204 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-20915 |
AT200,ST204..LB |
1 | ||
| 76871-20911 |
AT200,ST204..LB |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-29165 |
AT200,ST204..CP,LB |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-29165 |
AT200,ST204..CP,LB |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-29195 |
AT200,ST204 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-29195 |
AT200,ST204 |
1 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-20080 |
AT200,ST204..LB |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76882-20080 |
AT200,ST204..LB |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90159-60414 | ||||
| 90159-60497 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06116 | ||||
| 90904-67024 | ||||
ILLUST NO. 1 OF 2(9508- )CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741C - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20140 |
AT200,ST204 |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-20130 |
AT200,ST204 |
1 | ||
| 58747D - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-20020 |
AT200,ST204 |
1 | ||
| 58748B - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-20020 |
AT200,ST204 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-20915 |
AT200,ST204..LB |
1 | ||
| 76871-20911 |
AT200,ST204..LB |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-29165 |
AT200,ST204..CP,LB |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-29165 |
AT200,ST204..CP,LB |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-29195 |
AT200,ST204 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-29195 |
AT200,ST204 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-20150 |
AT200,ST204..LB |
1 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-20080 |
AT200,ST204..LB |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-20060 |
AT200,ST204..LB |
1 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-20060 |
AT200,ST204..LB |
1 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-20900 |
AT200,ST204..LB |
1 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76875-20080 |
AT200,ST204..LB |
1 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-20060 |
AT200,ST204..LB |
2 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-20060 |
AT200,ST204..LB |
2 | ||
| Common parts | ||||
| 90119-06436 | ||||
| 90159-60414 | ||||
| 90159-60497 | ||||
| 90179-05095 | ||||
| 90179-06128 | ||||
| 90179-06157 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| 90189-06116 | ||||
| 90540-12008 | ||||
| 93382-15010 | ||||

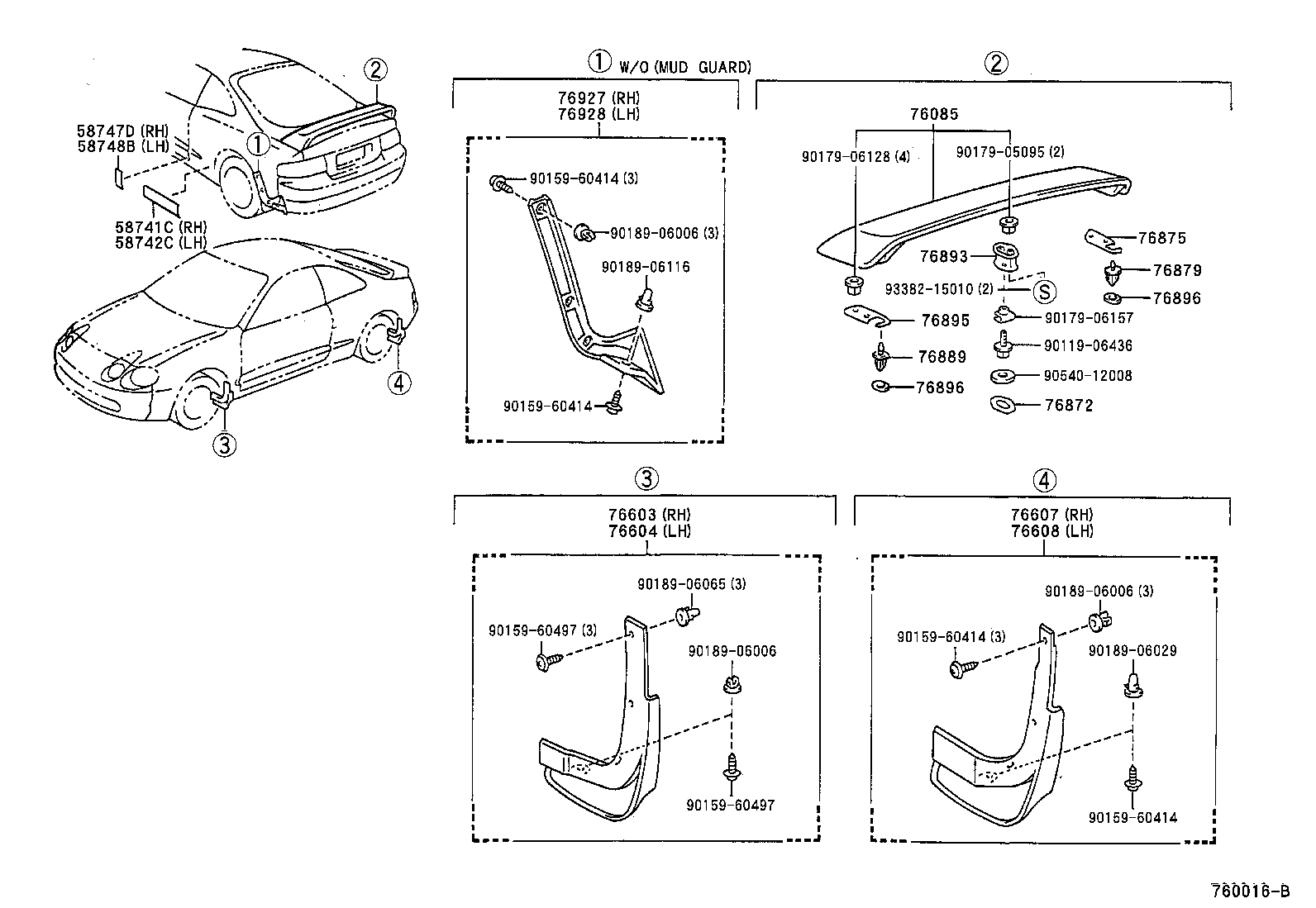

ILLUST NO. 2 OF 2(9508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76865A - RETAINER, SIDE MUDGUARD | ||||
| 90467-10162 |
AT200,ST204..CP,LB |
18 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-20900 |
AT200,ST204..CP,LB |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-20900 |
AT200,ST204..CP,LB |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-20050 |
AT200,ST204..CP,LB |
2 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-20020D0 |
AT200,ST204..CP,LB RED,3L2 |
1 | ||
| 76925-20020A0 |
AT200,ST204..CP,LB WHITE,040 |
1 | ||
| 76925-20020C0 |
AT200,ST204..CP,LB BLACK,1A2 ,183 ,202 ,756 ,8K9 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-20020A0 |
AT200,ST204..CP,LB WHITE,040 |
1 | ||
| 76925-20020C0 |
AT200,ST204..CP,LB BLACK,1A2 ,183 ,202 ,756 ,8K9 |
1 | ||
| 76925-20020D0 |
AT200,ST204..CP,LB RED,3L2 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-20040 |
AT200,ST204..CP,LB |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76928-20040 |
AT200,ST204..CP,LB |
1 | ||
| Common parts | ||||
| 90159-60414 | ||||
| 90159-60420 | ||||
| 90189-06006 | ||||
| 90189-06154 | ||||
| 90467-09185 | ||||

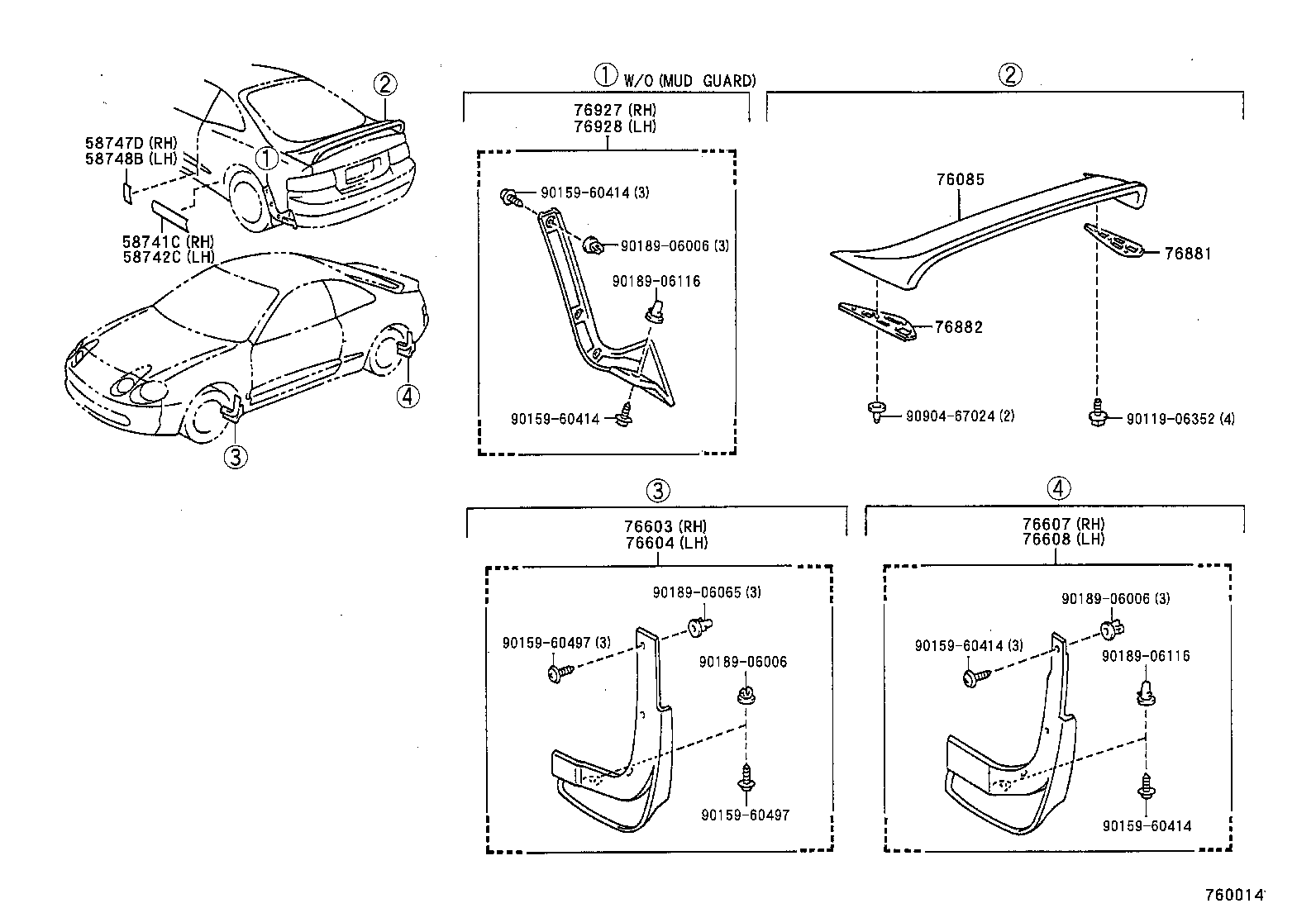

(9311-9508)LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06352 | ||||
| 90119-06388 | ||||
| 90159-60414 | ||||
| 90159-60416 | ||||
| 90159-60497 | ||||
| 90179-06185 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06116 | ||||
| 90904-67024 | ||||
ILLUST NO. 1 OF 2(9508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06388 | ||||
| 90119-06436 | ||||
| 90159-60414 | ||||
| 90159-60416 | ||||
| 90159-60497 | ||||
| 90179-05095 | ||||
| 90179-06128 | ||||
| 90179-06157 | ||||
| 90179-06185 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06116 | ||||
| 90540-12008 | ||||
| 93382-15010 | ||||
