AT200L-BLPSKK (1993)
Toyota Celica
Production
Sep 1993
-
Jun 1996
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

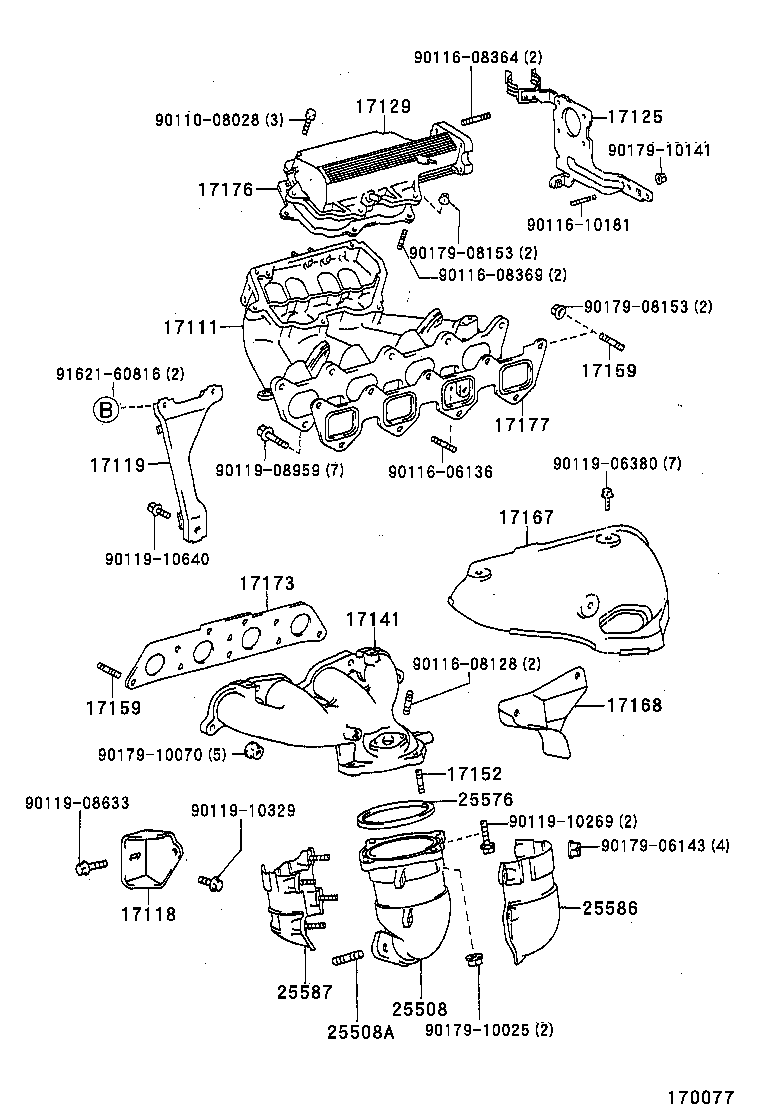

(9309-9508)7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16190 |
7AFE..AT200 |
1 | ||
| 17101-16200 |
7AFE..AT200 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16120 |
7AFE..AT200 |
1 | ||
| 17118-16160 |
7AFE..AT200 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17012-16040 |
7AFE..AT200 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-16080 |
7AFE..AT200 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-16020 |
7AFE..AT200 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16290 |
7AFE..AT200 |
1 | ||
| 17141-19015 |
7AFE..AT200 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10146 |
7AFE..AT200 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
7AFE..AT200 EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
7AFE..AT200 INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
7AFE..AT200 EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
7AFE..AT200 INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-16140 |
7AFE..AT200 |
1 | ||
| 17167-16141 |
7AFE..AT200 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16110 |
7AFE..AT200 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15040 |
7AFE..AT200 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-15010 |
7AFE..AT200 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-15030 |
7AFE..AT200 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25051-16010 |
7AFE..AT200 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-10146 |
7AFE..AT200 |
2 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-15020 |
7AFE..AT200 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-16010 |
7AFE..AT200 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-16010 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 90110-08028 | ||||
| 90116-06136 | ||||
| 90116-08128 | ||||
| 90116-08364 | ||||
| 90116-08369 | ||||
| 90116-10181 | ||||
| 90119-06380 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10269 | ||||
| 90119-10329 | ||||
| 90119-10640 | ||||
| 90179-06143 | ||||
| 90179-08153 | ||||
| 90179-10025 | ||||
| 90179-10070 | ||||
| 90179-10141 | ||||
| 91621-60816 | ||||

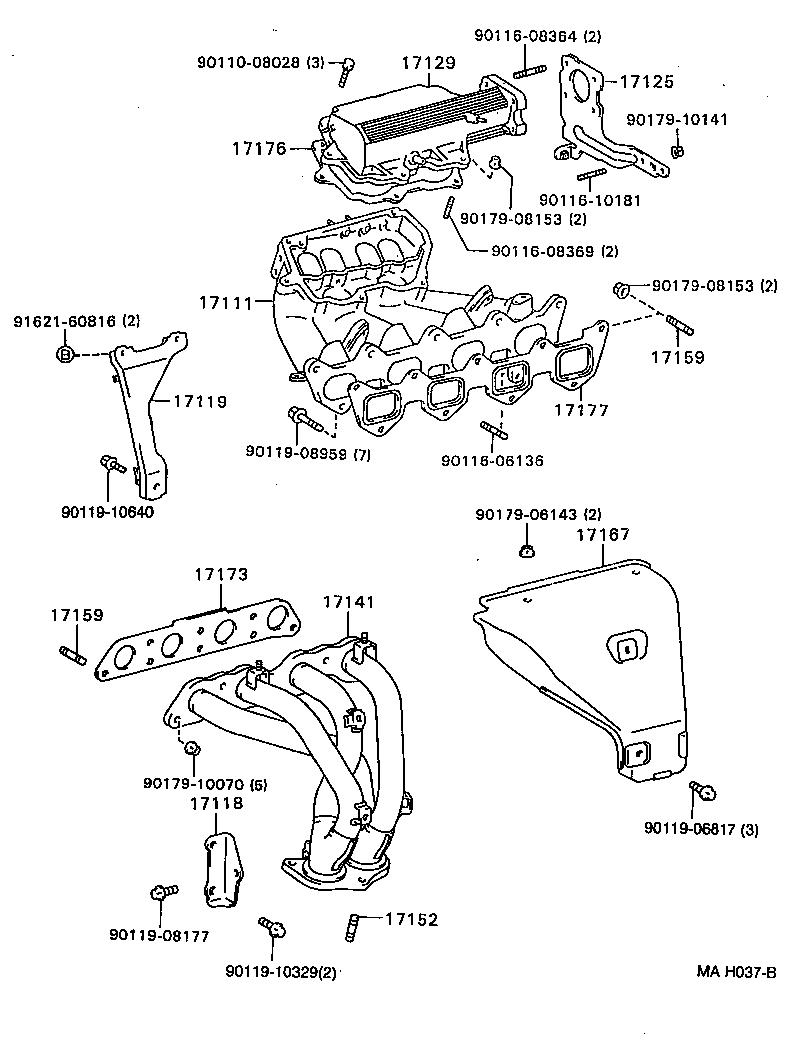

(9311- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90110-08028 | ||||
| 90116-06136 | ||||
| 90116-08364 | ||||
| 90116-08369 | ||||
| 90116-10181 | ||||
| 90119-06817 | ||||
| 90119-08177 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10640 | ||||
| 90179-06143 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90179-10141 | ||||
| 91621-60816 | ||||
